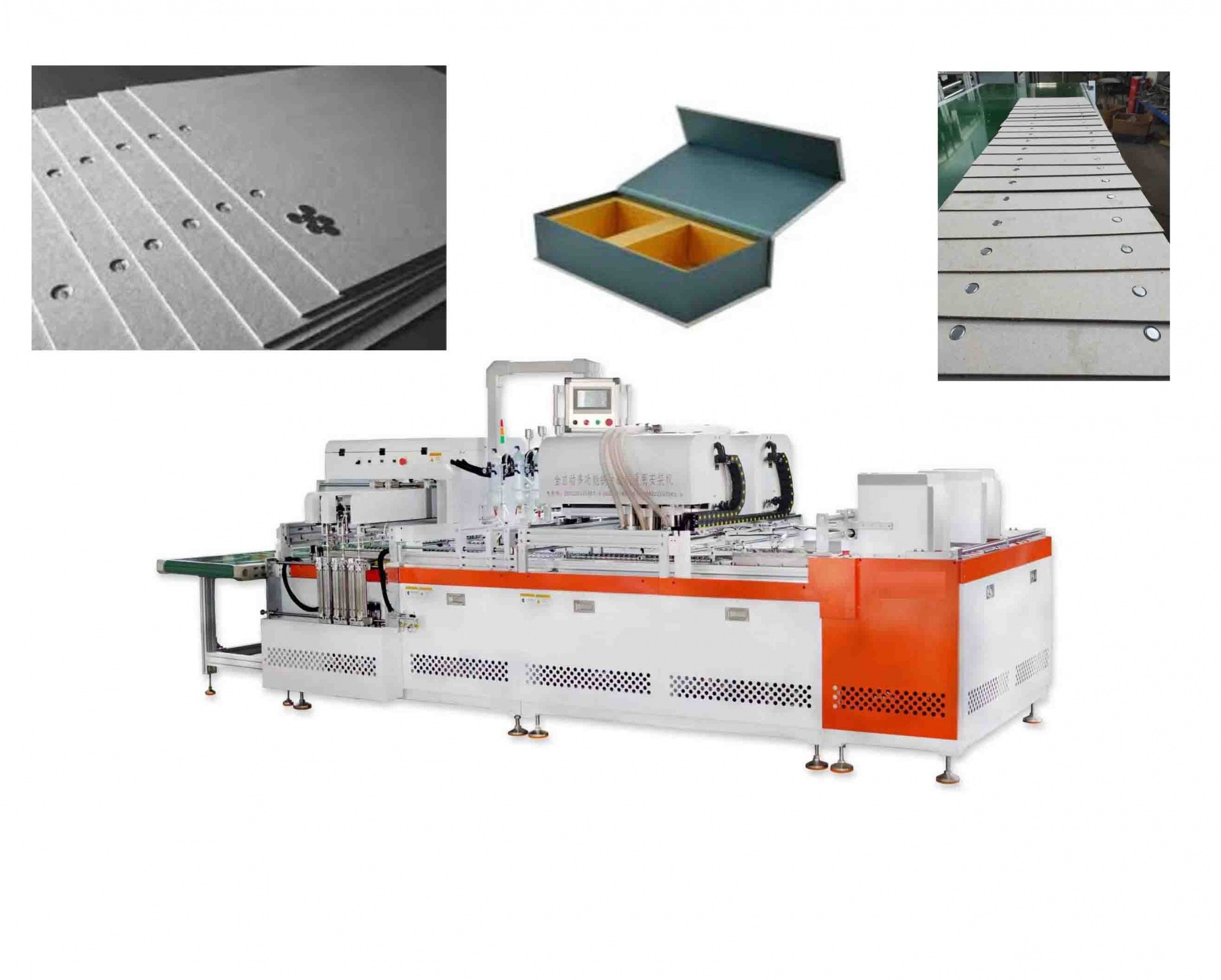

Fully Auto Magnet Closure Box Machine Ky-1265A
New Arrival

Fully Auto Magnet Closure Box Machine

Model: Ky-1265A

The Fully Auto Magnet Closure Box Machine Ky-1265A is a state-of-the-art solution for automated magnet and metal plate insertion in rigid box production. This advanced machine features dual-path capability, enabling high-speed production of up to 80 pieces per minute. Perfect for luxury packaging that requires secure magnetic closures.

With precision milling technology and intelligent positioning system, the Ky-1265A ensures accurate placement of magnets and metal plates with ±0.2mm accuracy. The machine supports various magnet sizes and configurations, making it versatile for different packaging requirements including gift boxes, jewelry boxes, and premium product packaging.

Call Now

Technical Specifications

Model Ky-1265A
Max Board Size 1210×650mm (500×650mm double path)
Min Board Size 100×60mm
Board Thickness 1-3mm
Max Milling Hole Distance 600mm
Min Milling Hole Distance 10mm
Min Magnets/Plates Distance 45mm (Metal) / 56mm (Magnet)
Magnet/Metal Size Φ8mm-Φ20mm / Square: 10×6mm – 20×15mm
Max Magnet Insert Distance 400mm
Production Speed 25-40 pcs/min (Double: 50-80 pcs/min)
Accuracy ±0.2mm
Air Pressure 0.6MPa
Power 5.5KW
Machine Dimension 4000×1950×1900mm
Weight 1500Kg

Machine in Action

Video Highlights

  • Automatic dual-path feeding system demonstration
  • Precision milling & magnet insertion process
  • High-speed production up to 80 pcs/min
  • PLC touch screen control panel operation
  • Finished magnetic closure box quality showcase

Pro Tip: Watch the full video to see how our machine handles different magnet sizes and configurations with exceptional precision.

Key Features & Advantages

Why choose our Fully Auto Magnet Closure Box Machine?

Ultra High Speed

Up to 80 pcs/min with dual-path configuration

Dual Function

Handles both magnets and metal plates insertion

High Precision

±0.2mm accuracy for perfect placement

Double Path Option

Dual-path system doubles your productivity

Smart PLC Control

Advanced programmable logic controller system

Precision Milling

Accurate milling technology for perfect holes

Flexible Size Range

Supports various magnet sizes Φ8mm-Φ20mm

24/7 Support

Professional technical support and training

Machine Details

Precision engineering for superior performance

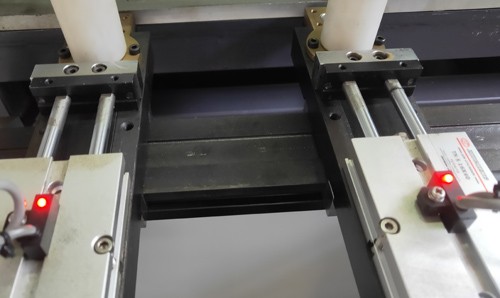

Machine Detail View

Precision Milling System

High-accuracy milling for perfect magnet placement

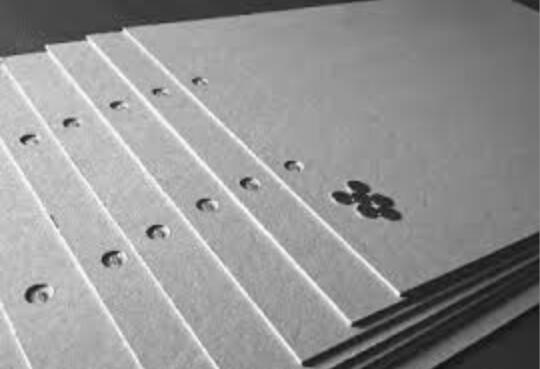

Application Example 1

Product Application

Premium magnetic closure boxes

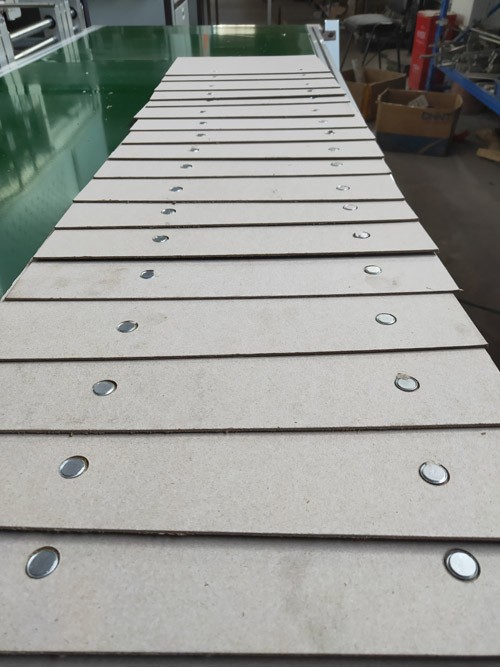

Application Example 2

Finished Products

High-quality magnetic boxes output

Product Applications

Wide range of magnetic closure box applications

Magnet Closure Box Applications

Perfect for Premium Packaging Industries

  • Luxury Gift Boxes

    Premium magnetic closure for high-end gift packaging

  • Jewelry Packaging

    Elegant magnetic boxes for jewelry and accessories

  • Electronics Packaging

    Premium phone boxes and electronic device packaging

  • Cosmetics & Perfume

    Luxurious magnetic boxes for beauty products

  • Watch Boxes

    Premium packaging for luxury watches and timepieces
