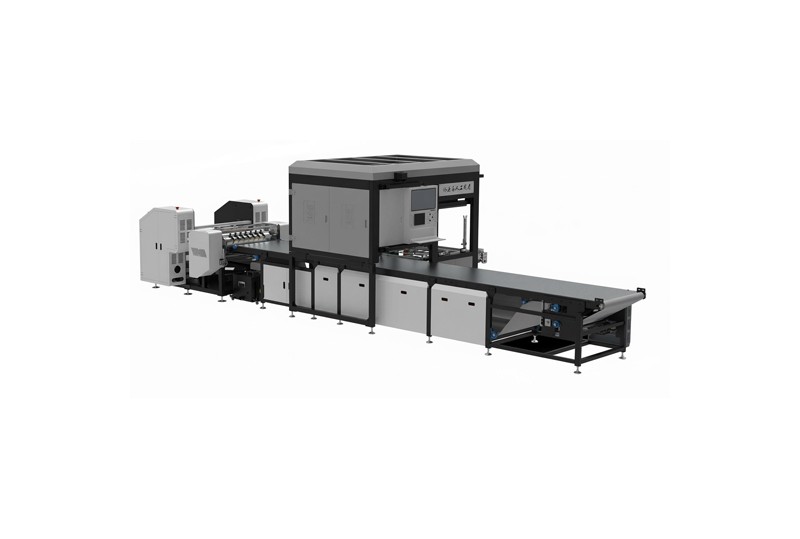

Ultimate Gluing & Positioning Solution
The game-changer for high-quality rigid box production. Combining advanced visual positioning with a heavy-duty robotic arm, the Ky-Z850/650 ensures perfect alignment and gluing accuracy every time. Servo-controlled precision delivers unmatched consistency.
Technical Specifications
| Model | Ky-Z850 / Ky-Z650 |
|---|---|
| Speed | 7 – 40 pcs/min |
| Max Paper Width | 800mm / 600mm |
| Paper Length | Unlimited |
| Paper Thickness | 80 – 300 gsm |
| Positioning | Visual Camera System |
| Power | 4 – 9 KW |
| Robotic Arm Load | 30 kg capacity |
Machine in Action
Machine Structure & Innovation
Advanced Servo-Controlled Design
The Ky-Z850/650 features cutting-edge servo technology combined with visual positioning for unprecedented accuracy. Our self-developed robotic arm with 30kg capacity ensures robust, maintenance-free operation for years of reliable service.
Key Features
Dual Servo Platform
Offers unmatched stability with “One-Key Synchronization” for single or double usage modes, ensuring perfect lifting precision.
Anti-Double Feeding
Equipped with rolling brush and swing motor arm to perfectly solve double-sheet suction issues for consistent feeding.
Jam-Free Suction
Replaces traditional steel ball structures with vacuum suction belt for smooth, uninterrupted paper feeding.
Easy-Clean Design
Gluing unit and machine head are separated, making cleaning safe, fast, and convenient for maintenance.
Heavy-Duty Arm
Self-developed manipulator with 30kg load capacity — simple, robust, and maintenance-free operation.
Visual Positioning
Advanced camera system ensures exact positioning accuracy for perfect paper-to-board mounting every time.
Achieve Perfect Positioning Every Time
Experience the power of visual positioning technology combined with servo-controlled precision. Transform your rigid box production today!
Product Description
About Ky-Z850/650
The Ky-Z850/650 Servo-Controlled Gluing & Positioning Machine represents the ultimate solution for precision paper-to-board mounting. This advanced system combines visual camera positioning with dual servo platforms and a heavy-duty robotic arm to deliver unmatched accuracy and reliability.
Whether you’re producing hardcover books, premium gift boxes, mooncake boxes, or other luxury packaging, the Ky-Z850/650 ensures perfect alignment on every piece. Available in 850mm and 650mm configurations with speeds from 7-40 pieces per minute.
Machine Capabilities
- Visual camera positioning system for exact accuracy on every piece
- Dual servo lifting platform with one-key synchronization
- Smart anti-double feeding eliminates paper feed issues
- Heavy-duty 30kg robotic arm – robust and maintenance-free
- Handles paper from 80-300gsm with unlimited length
Applications
Perfect Paper-to-Board Mounting
The Ky-Z850/650 is perfect for manufacturing hardcover books, gift boxes, mooncake boxes, and other premium packaging requiring precise paper-to-board mounting. Visual positioning ensures flawless alignment every time.
Precision Positioning Partner
Get competitive pricing and expert consultation for your gluing & positioning needs
