Heavy Duty Tape cutter

Heavy Duty Tape cutter


Machine Description

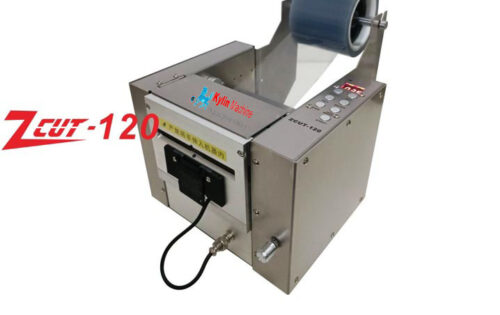

Automatic Tape Cutter Ky-CUT-120 Features:

  • LED display shows the set cutting length;
  • Memory function retains set data after power off;
  • Capable of cutting two rolls of tape with different outer diameters simultaneously;
  • Cutting width up to 120mm;
  • Dual optical sensors for accurate tape feeding;
  • One machine can be used for both left and right feeding;
  • 24-hour continuous operation capability

Manual Adjustment and Precise Fixing:

  • Press the regulator button and note the consistent behavior with the automatic model.
  • The special regulator design allows for automatic bounce-back after setting, with clear marking on the regulation reset button.

Metal Structure Details:

  • Widely applicable for PVC, tin tape, protective film

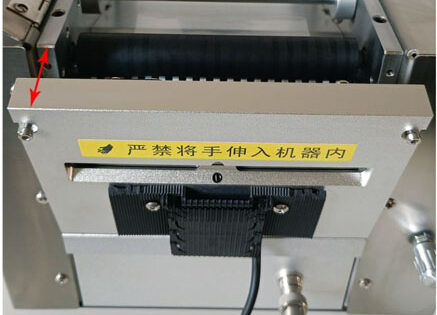

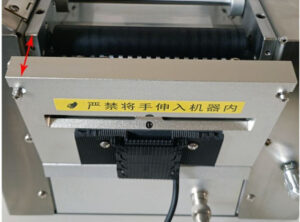

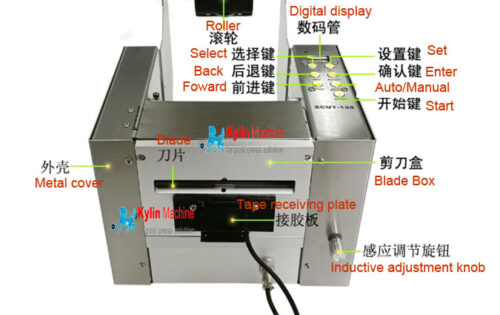

Component Images:

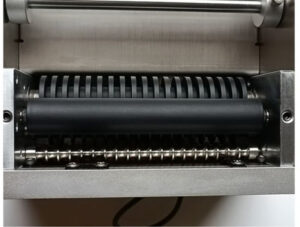

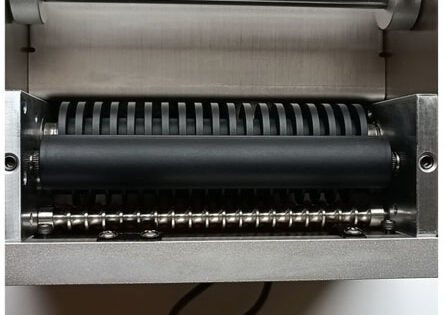

  • Detailed images of blade, rubber roller, inner cover, etc.

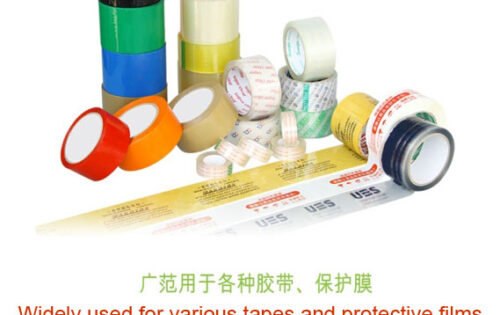

  • Applicable tapes:
  •  PVC, copper foil tape, craft tape, cloth tape, sealing tape, protective film, paper tape, foam tape, glass fiber tape, and double-sided tape
  • Cutting width: up to 120mm
  • Stepper motor for precise adjustments, ensuring accurate cutting length
  • Compatible with both non-adhesive and adhesive tapes
  • Small design with photoelectric reaction
  • Photoelectric sensor, infrared adjustment
  • High precision for small volume production
  • Robust design for mass production

Tape cutter

Specification
ModelKy-120C
Cutting width range20-120mm
Cutting length range20-999mm
Maximum outer diameter of tape roll300mm
speed44 pieces/min (for 100mm length)
Machine weight8kg
Machine dimensions245 * 335 * 270mm (W*D*H)
Power70W
Input voltageAC100-240V 50/60Hz
Operating humidity<80% RH
Operating temperature5°C - 40°C
Applicable tapesPVC, copper foil tape, craft tape, cloth tape, sealing tape, protective film, paper tape, foam tape, glass fiber tape, and double-sided tape
