Quotation for rigid box machinery

KYLIN MACHINERY
PRODUCT QUOTATION
Date:
Glue Machine
Glue Machine with Delivery Belt
Model: KY-650S
Automatic feed paper sheets, capable of consuming hundreds of paper sheets at one time. Equipped with suction device to avoid bending and bubbling. Simultaneous operation on both sides of the conveyor belt with timing and temperature control.
US$ 6,500
Technical Specifications:
  • Sheet Width: 80-600mm
  • Sheet Thickness: 80-350gsm
  • Working Speed: 7-40pcs/min
  • Power: 0.8kw
  • Machine Dimension: 3600×1300×1070mm
  • Machine Weight: 800Kg
Product Demonstration Video:

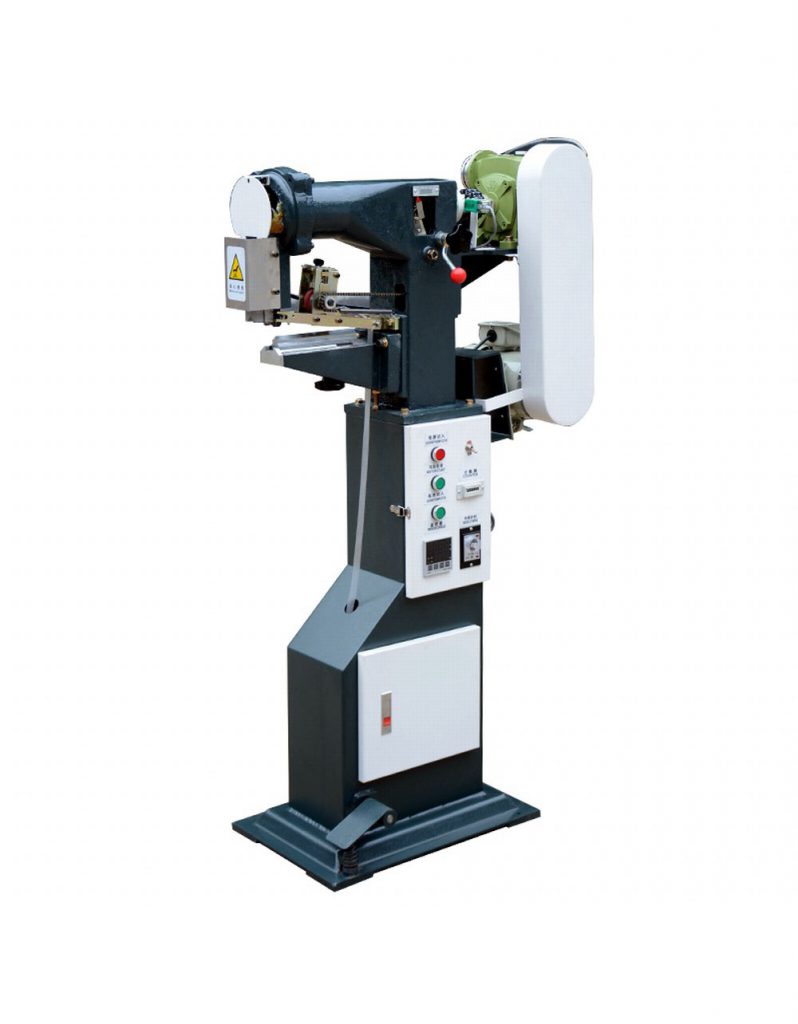

Box Taping Machine
Box Taping Machine
Model: KY-40
Semi-automatic machine for application of pre-glued paper strip on cardboard box edges. Single arm pressing device with temperature controller. Turn over box by hand, workable for various kinds of boxes. Environmental hot-melt adhesive tape.
US$ 1,500
Technical Specifications:
  • Min Finished Case Size: 40×40×10mm
  • Speed: 50pcs/min
  • Power: 0.5HP/220V
  • Machine Dimension: 800×500×1400mm
  • Machine Weight: 200Kg
  • Tape Length: 5-35mm (adjustable)
Product Demonstration Video:
Rigid Box Machine
Rigid Box Forming Machine
Model: KY-550C (2022 Version)
The 2022 new version most suitable to make quality rigid boxes and eliminates skilled labor requirement. Smart setting for different box sizes. Brush roller ensures even wrap around of glue for all 4 sides. Pneumatically controlled flap bending.
US$ 13,800
Technical Specifications:
  • Max Box Size: 550×400×120mm
  • Min Box Size: 40×40×10mm
  • Working Speed: 18-24pcs/min
  • Power: 1.2Kw
  • Machine Dimension: 1000×1340×2100mm
  • Machine Weight: 750Kg
Product Demonstration Video:
Hard Cover Making Machine
Auto Hard Cover Making Machine
Model: KY-510
Designed for production of 1-7 piece cases. Works with hot and cold glue. Vacuum table moves product forward to turning-in station. Two counterposed clamps ensure perfect finish on any kind of material. Final nip rolling station.
US$ 11,800
Technical Specifications:
  • Max Size: W500×L1100mm
  • Min Size: W80×L140mm
  • Thickness: 1-5mm
  • Speed: 32pcs/min
  • Power: 1.8KW
  • Machine Dimension: L2500×W1000×H800mm
  • Machine Weight: 1200Kg
Product Demonstration Video:
QUOTATION SUMMARY
Product Name Model Qty Unit Price Subtotal
Glue Machine with Delivery Belt KY-650S 1 US$ 6,500 US$ 6,500
Box Taping Machine KY-40 1 US$ 1,500 US$ 1,500
Rigid Box Forming Machine KY-550C 1 US$ 13,800 US$ 13,800
Auto Hard Cover Making Machine KY-510 1 US$ 11,800 US$ 11,800
TOTAL AMOUNT US$ 33,600
TERMS & CONDITIONS
  • Price Terms: EXW (Ex Works)
  • Payment Terms:
  •   • 30% T/T for deposit
  •   • 70% T/T before shipment
  • Warranty: 3 years machine quality warranty
  • Delivery Time: 30-45 days after deposit received
  • Training Service: Free equipment training and technical support
  • Quote Validity: 30 days

Additional Services

Installation Support: Professional installation guidance and on-site technical assistance available upon request.

Spare Parts: Complete spare parts inventory maintained for immediate delivery and long-term support.

Technical Documentation: Comprehensive operation manuals, maintenance guides, and technical drawings provided.

After-Sales Service: 24/7 technical support hotline and remote troubleshooting assistance.

Customization: Machine modifications and custom solutions available to meet specific production requirements.

Quality Assurance: All machines undergo rigorous testing and quality control before shipment.

CONTACT INFORMATION

Kylin Machinery

Tel: 0086-13809820550

Website: www.kylinmachines.com

Thank you for your inquiry!
