Quotation for round box machines

KYLIN MACHINES

Professional Packaging Machinery Solutions

QUOTATION

Official Price Quote

Quote Date

Quote No.

Valid Until

Currency

USD ($)

Products & Specifications

Product #1

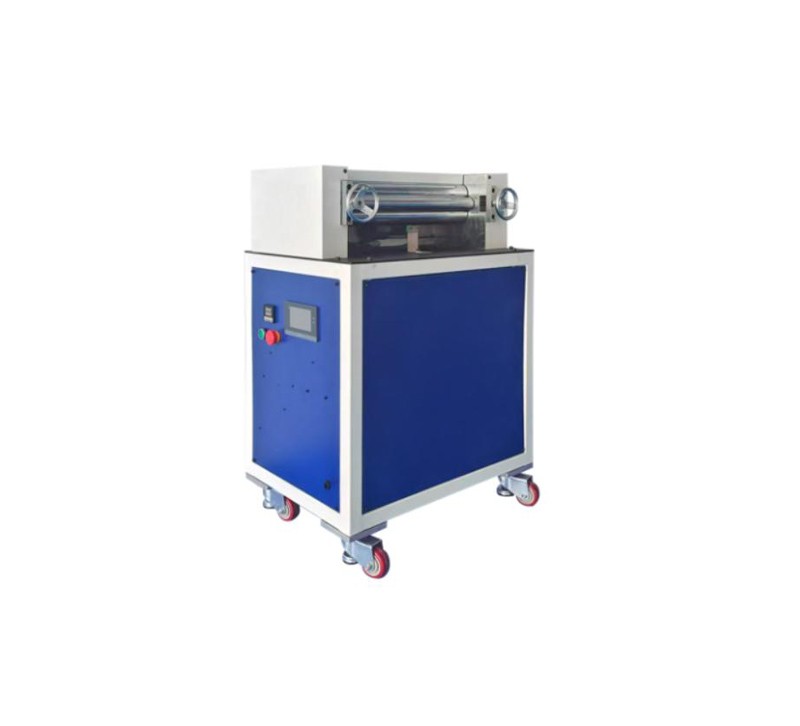

KY-120A CircleBox Pro

Professional Cardboard Round Box Forming Machine

$1,580

EXW Price

Technical Specifications

Model Number KY-120A CircleBox Pro
Box Diameter Range 60mm – 120mm
Box Height Range 20mm – 80mm
Production Speed 35-50 pcs/min
Material Thickness 250-500 gsm
Power Supply 380V/50Hz, 3 Phase
Total Power 4.5 KW
Air Consumption 0.5-0.7 m³/min
Machine Dimension 2200×1100×1650mm
Machine Weight 950 KG

Product Video

Product #2

KY-80A Round/Oval Box Adhesive Machine

Professional Round & Oval Box Taping Machine

$1,600

EXW Price

Technical Specifications

Model KY-80A
Inner Diameter 80-500mm
Adhesive Tape 6-36mm
Adhesive Tape Width 19mm
Production Speed 4-6 pcs/min
Thickness 1-2mm
Power 500W
Air Pressure 4-6 MPa
Overall Dimensions 760×260×1470mm
Weight 100 KG

Product Video

Product #3

CirclePress Pro

Advanced Round Disc Pressing Machine

$1,680

EXW Price

Technical Specifications

Inner Diameter Range 60-480mm
Height Capacity 20-250mm
Production Speed 5-10 pcs/min
Operating Pressure 4 MPa
Power 150W
Dimensions 800×750×1860mm
Weight 105 KG

Product Video

Product #4 – Premium

KY-200A Paper Tube Machine

Paper Round Box Wrapping Machine

$9,200

EXW Price

Technical Specifications

Model KY-200A
Maximum Size φ500×280mm
Minimum Size φ60×20mm
Production Speed 8-12 pcs/min
Air Pressure 3-4 MPa
Power 220V 2KW
Material of Glue Cold Glue / Hot Melt
Machine Size 1600×950×1900mm
Weight 300 KG

Product Video

Product #5

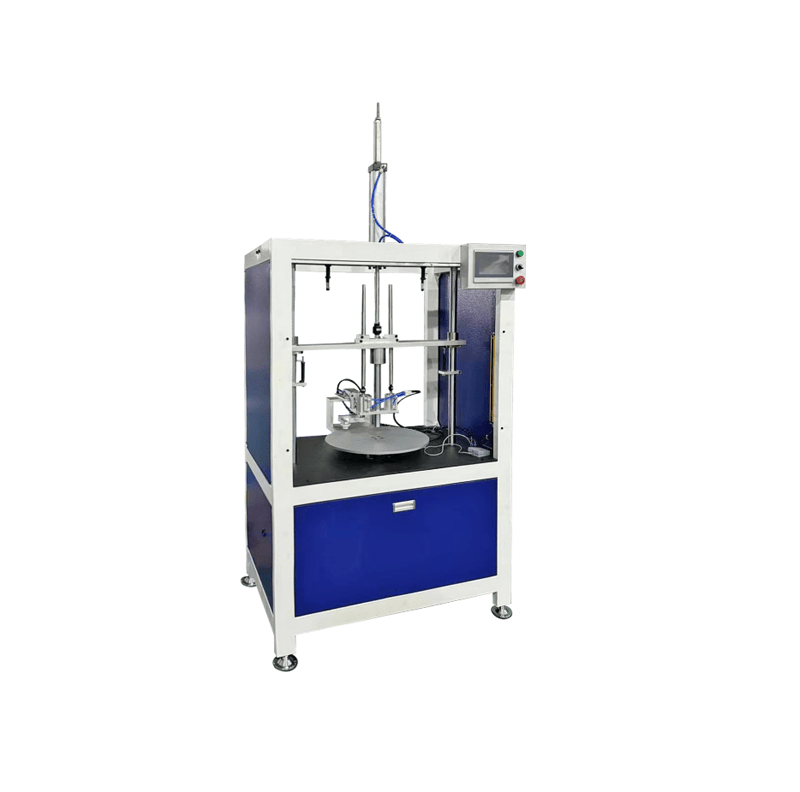

KY-200C TubeMaster Pro

Paper Round Box Edging-In Machine

$7,800

EXW Price

Technical Specifications

Model KY-200C
Inner Diameter Range 60-480mm
Height Capacity 20-250mm
Production Speed 5-10 pcs/min
Operating Pressure 4 MPa
Power 150W
Dimensions 800×750×1860mm
Weight 105 KG

Product Video

Product #6

KY-60A InnerPress Elite

Professional Inner Liner Pressing Machine

$1,250

EXW Price

Technical Specifications

Model KY-60A
Diameter Range 60-500mm
Height Capacity 20-200mm
Production Speed 10 pcs/min
Power 200W
Air Pressure 0.5 MPa
Mold System Left Mold Configuration
Dimensions 500×800×950mm
Weight 80 KG

Product Video

Price Summary

Item Model Product Name Qty Unit Price (USD)
1 KY-120A CircleBox Pro 1 $1,580.00
2 KY-80A Round/Oval Box Adhesive Machine 1 $1,600.00
3 CirclePress Pro 1 $1,680.00
4 KY-200A Paper Tube Machine 1 $9,200.00
5 KY-200C TubeMaster Pro 1 $7,800.00
6 KY-60A InnerPress Elite 1 $1,250.00
Total Amount: $23,110.00

Payment Schedule

1

Deposit (30%)

$6,933.00

Upon Order
2

Balance (70%)

$16,177.00

Before Shipment

Terms & Conditions

1

Price Terms

EXW (Ex Works)

2

Payment Terms

30% T/T for deposit
70% T/T before shipment

3

Quote Validity

30 days from quote date

Service & Support

Warranty

1 year machine quality warranty

Delivery Time

15 days after deposit received

Training Service

Free equipment training and technical support

KYLIN MACHINES

Thank you for your interest in our products!

www.kylinmachines.com

© 2025 Kylin Machines. All rights reserved.
