Machine Description

Coil Spring Attached Machine

Professional hinge insertion solution for casket & coffin manufacturing

+86-13809820550

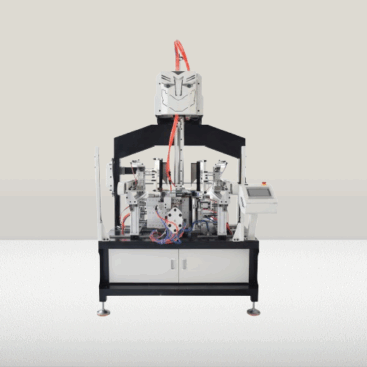

Industrial Grade Coil Spring Attached Machine Ky-202
Precision Engineering

Coil Spring Attached Machine

High-precision automatic coil spring hinge insertion machine (Model: Ky-202) designed specifically for casket and coffin manufacturing. This specialized equipment delivers consistent, reliable hinge attachment at speeds up to 28 pieces per minute with minimal power consumption.

20-28 pcs/min
0.2KW Low Power
40-220mm Range
220Kg Compact

Technical Specifications

Model Ky-202
Max Size 220 mm
Min Size 40 mm
Box Height 10 – 80 mm
Distance Between Hinges 0 – 150 mm
Speed 20 – 28 pcs/min
Power 0.2 KW
Machine Dimension 950 × 650 × 1200 mm
Machine Weight 220 Kg

Machine in Action

Machine Components & Details

Metal Hinge Components

Metal Hinges

High-quality spring hinges

Metal Insert Mechanism

Insert Mechanism

Precision insertion system

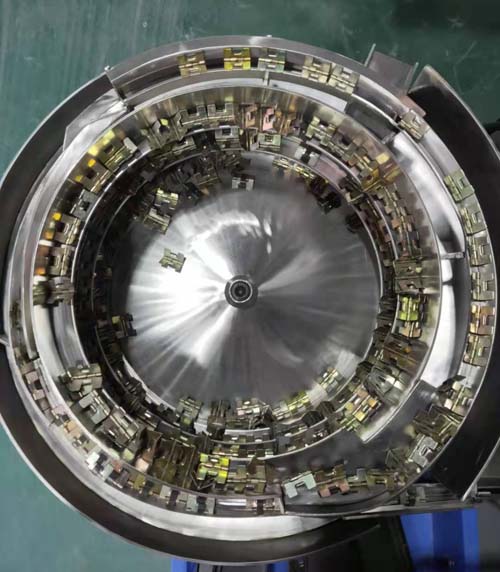

Automatic Feeder

Auto Feeder

Continuous hinge feeding

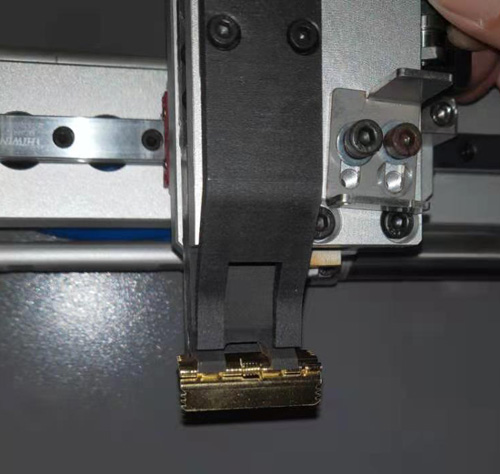

Insert Head

Insert Head

Accurate positioning head

Key Features & Advantages

Automatic Operation

Fully automatic hinge insertion process with consistent quality and minimal operator intervention required.

Energy Efficient

Ultra-low power consumption of only 0.2KW makes this machine extremely cost-effective to operate continuously.

High Precision

Precision positioning system ensures accurate hinge placement with adjustable distance between hinges up to 150mm.

Flexible Size Range

Handles workpieces from 40mm to 220mm with box heights from 10mm to 80mm for versatile production needs.

Compact Design

Space-saving footprint of only 950×650mm with lightweight 220Kg construction for easy workshop placement.

Easy Maintenance

Simple mechanical design with easily accessible components for quick maintenance and minimal downtime.

Upgrade Your Production Line

Contact our specialists to learn how the Ky-202 Coil Spring Attached Machine can improve your casket manufacturing efficiency

Product Description

About Ky-202 Machine

The Coil Spring Attached Machine (Model: Ky-202) is a specialized automatic equipment designed for inserting coil spring hinges into caskets, coffins, and similar products. This machine provides a professional solution for funeral product manufacturers seeking to automate their hinge attachment process.

With its compact 950×650×1200mm footprint and lightweight 220Kg design, this machine fits easily into existing production lines. The ultra-efficient 0.2KW power consumption ensures minimal operating costs while maintaining production speeds of 20-28 pieces per minute.

Machine Capabilities

  • Automatic coil spring hinge insertion at 20-28 pieces per minute
  • Workpiece size range from 40mm to 220mm diameter/width
  • Adjustable box height accommodation from 10mm to 80mm
  • Variable hinge spacing distance from 0 to 150mm
  • Ultra-low 0.2KW power consumption for cost-effective operation

Technical Support

Our engineering team provides comprehensive support from machine selection to installation and operator training.

Direct Hotline +86-13809820550
WhatsApp +86-13809820550

Application Examples

Casket Application 1

Premium Caskets

High-quality hinge installation for premium funeral caskets

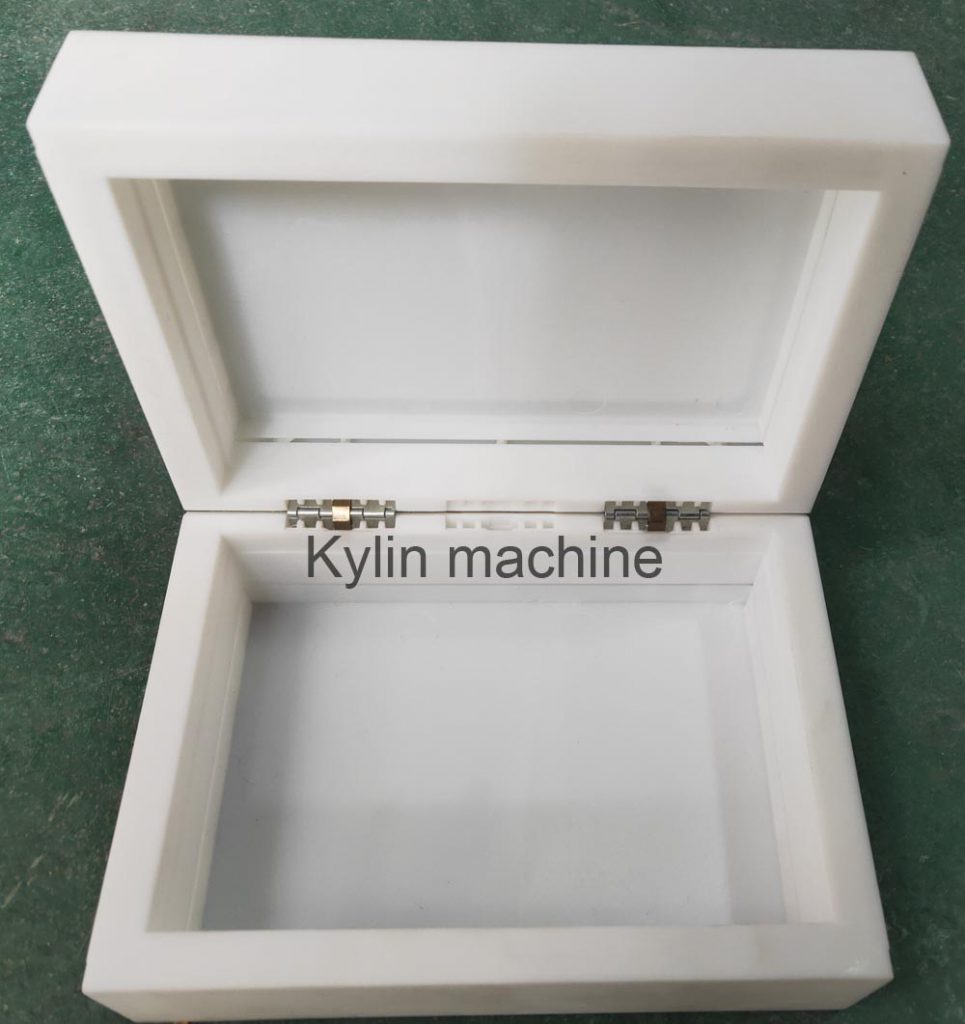

Casket Application 2

Coffin Manufacturing

Reliable spring hinge attachment for coffin production lines

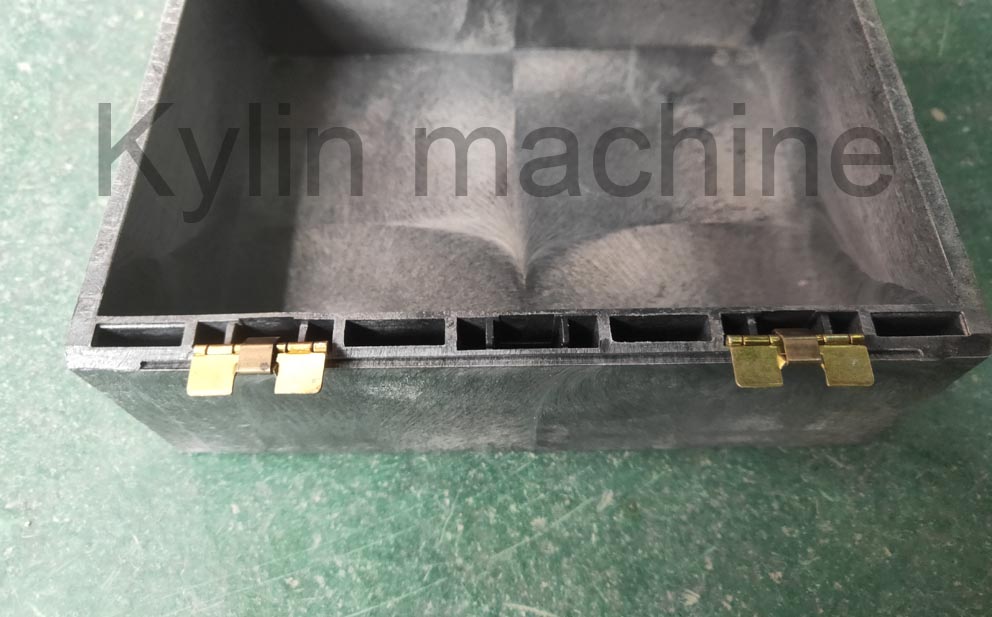

Casket Application 3

Funeral Products

Professional hinge solutions for various funeral industry products

Start Your Project Today

Get competitive pricing and expert consultation for your manufacturing needs

+86-13809820550

Customers said

Customers visitation

ADDITIONAL SERVICES

Customers Meeting&Machines Training

Meeting in India
Meeting in Dubai
Trip to Turkey
Training in London

To help you master the installation and operation of your equipment, Kylin provides authorized training programmes led by surface preparation specialists.

  • How to set up your machine and optimize performance levels for your process.
  • Key trouble-shooting tips that keep your machine(s) in prime condition to minimize downtime, minimize maintenance, and prevent future problems.
  • How to optimize performance levels to maintain consistent quality and minimize waste
  • The latest legislation and how to keep the machine safe.

We offer three years machine quality warrantty, we want You to be satisfied with the work we do and our Machine,

Every time. We Guarantee to perform all good services to your complete satisfaction at the agreed upon price.

If at any time within 30 days after completion of the job you're not completely satisfied, we will Re-Clean all required areas to your satisfaction.

If you 're still not satisfied we will refund the money paid.

Help from technician is only a phone call away.

We offer free over the phone tech support to help you troubleshoot any issue you may be having.

If you require onsite help we are able to send our technicians to you! Whether it’s for training or support we can meet your needs.

Our experienced factory technicians are eager for you to get the most from your Kylin Machine.

We also offer to do regular maintenance to your machinery to make sure it stays in the best condition throughout the lifetime of the product.

This will help guarantee that your machines will work well for as long as possible.

Initially one of our experienced operators will try and help you resolve the problem over the telephone.
If that is not successful then we would send a field engineer out to site.
Our engineers carry the most common spare parts so that most problems can be repaired on site.
In the unlikely event that the machine could not be repaired on site, we would either arrange another on site visit if appropriate,
or take the machine in to our state of the art workshop where we can deal with all types of repairs and refurbishments
