KY-420P Digital Book Edge Printing Machine
Full-color fore-edge printing on any book stack — no plates, no setup cost. Powered by the industrial Ricoh GH2220 printhead with ±0.1 mm registration accuracy.
Traditional Plate Printing vs. Digital Edge Printing
Book finishers and commercial printers face mounting pressure to reduce setup costs and turnaround times. Here is how the KY-420P resolves the core pain points.
Conventional Plate-Based Printing
- ✘High plate-making cost per job — unviable for short or variable runs
- ✘Lengthy setup and registration time leads to production bottlenecks
- ✘Fixed design per plate run — impossible to personalize per copy
- ✘Skilled press operators required for each changeover
- ✘Ink waste and substrate spoilage during makeready phases
- ✘Limited height range — cannot accommodate thick or oversized stacks
KY-420P Digital Book Edge System
- ✓Zero plate cost — upload a file and print any design immediately
- ✓Instant job changeover with no makeready waste or setup time
- ✓Full variable-data support — unique design on every single book copy
- ✓Minimal operator training required; compatible with Win/MAC RIP software
- ✓Industrial Ricoh GH2220 head — 30 billion actuation life cycle, virtually zero waste
- ✓0–500 mm customizable print height handles any book block size
How It Works — 4-Step Digital Edge Print Process
From job file to finished fore-edge print in a streamlined, plateless workflow designed for commercial production.
Prepare & Upload Design
Create or import your artwork via Maintop, Photoprint, or Wasatch RIP on Win or MAC. No prepress plates needed.
Clamp the Book Stack
Load book blocks up to 100 kg and 500 mm height into the precision clamping fixture. The system registers the edge automatically.
Industrial Inkjet Printing
The Ricoh GH2220 printhead traverses the clamped edge at 900 × 900 mm format, delivering ±0.1 mm registration in a single pass.
Inspect & Dispatch
Printed books are released from the clamp, dried, and ready for binding or dispatch — no plate stripping, no cleanup downtime.
Engineered for High-Volume Commercial Book Finishing
Every engineering decision in the KY-420P targets the precision, throughput, and reliability standards demanded by professional print shops.
Ricoh GH2220 Industrial Printhead
The GH2220 features 384 nozzles, a 30-billion-actuation service life, binary and greyscale jetting modes (3–21 pl droplets), and supports aqueous and solvent ink systems — built for continuous industrial production cycles.
High-Resolution Multi-DPI Printing
Selectable resolutions of 720×600, 720×900, and 720×1200 DPI provide the flexibility to balance speed and quality across different job types — from mass-market paperbacks to premium collector editions.
Plateless Variable-Data Workflow
100% digital, 100% plateless. Switch between designs between every single print job at zero additional cost — enabling personalized fore-edge printing, edition-specific artwork, and short-run specialty titles without economic penalty.
Universal Book Stack Compatibility
The adjustable clamping system handles book blocks from 0 to 500 mm in height (customizable) with a 100 kg loading limit. Compatible with standard offsets, coated stock, sticky notes, rounded corners, and multi-stack configurations.
Industrial Build Quality & Durability
At 400 kg machine weight and a 2100 × 1300 × 1300 mm steel-frame footprint, the KY-420P is designed for sustained production-floor operation. The 110V–220V universal power supply ensures global deployment compatibility.
Broad Software Compatibility
Works with Win98, 2000, XP and MAC operating systems alongside professional RIP solutions including Maintop, Photoprint, and Wasatch — integrating seamlessly into existing prepress workflows without infrastructure replacement.

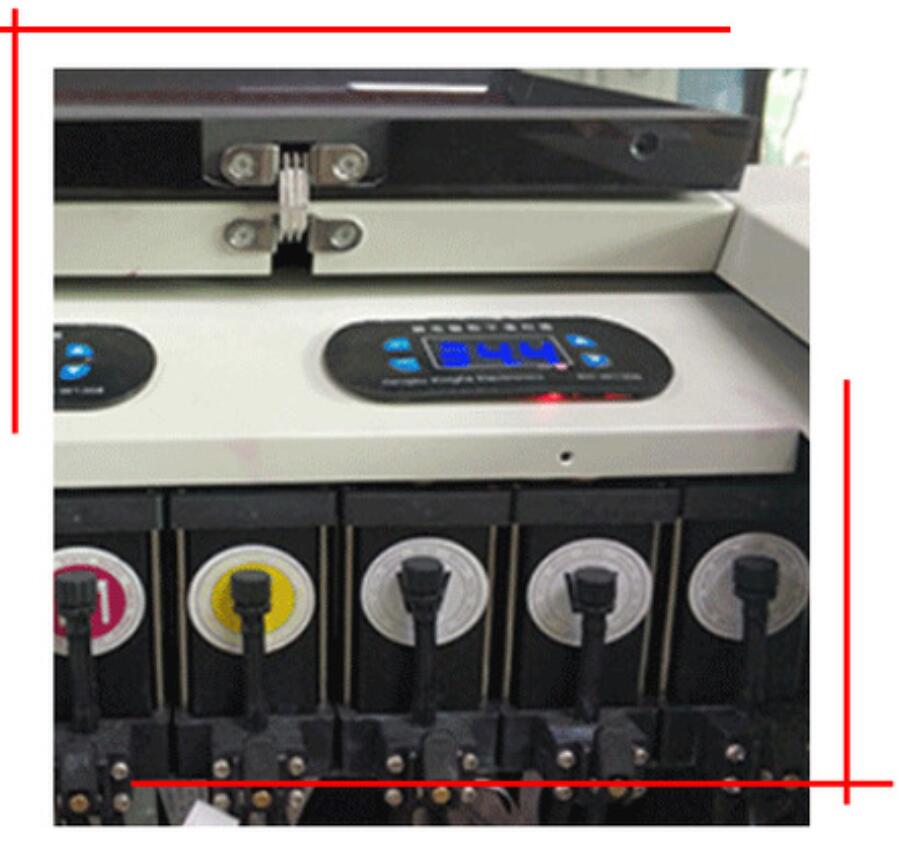

Structure & Detail Views
Precision-engineered components designed for industrial-grade production reliability.
KY-420P Full Parameter Table
Complete engineering specifications for procurement evaluation, system integration planning, and site preparation.
| Parameter | Specification |
|---|---|
| Model | KY-420P |
| Print Head | Ricoh GH2220 — Industrial Piezoelectric Inkjet |
| Print Size | 900 × 900 mm |
| Print Speed | A1+ format at 1440 dpi ≈ 20 minutes / pass |
| Print Height | 0–500 mm (customizable per stack height) |
| Print Accuracy (DPI) | 720×600 / 720×900 / 720×1200 DPI (selectable) |
| Book Loading Limit | 100 Kg |
| Power Supply | 110V–220V AC · 1500W |
| Compatible Software | Win98 / 2000 / XP / MAC (Maintop, Photoprint, Wasatch) |
| Machine Dimensions | 2100 × 1300 × 1300 mm (L × W × H) |
| Machine Weight | 400 Kg |
KY-420P — Machine in Action
Watch the complete fore-edge digital printing workflow: book loading, Ricoh GH2220 printing pass, and finished output.
Industry Applications & Output Examples
The KY-420P serves commercial print shops, book manufacturers, publishers, and specialty finishers across global markets.
Frequently Asked Questions
Answers to the core technical and commercial questions from B2B procurement teams evaluating the KY-420P.
No plates are required. The KY-420P is a fully digital, plateless system. Simply prepare your design file in a compatible RIP software (Maintop, Photoprint, or Wasatch), load it to the machine via USB or network, and print. Job changeovers take seconds — the design can be unique for every single book copy at zero additional cost. This makes the KY-420P ideal for short runs, variable editions, and personalized fore-edge printing without any economic penalty for design changes.
The KY-420P offers selectable print resolutions of 720×600, 720×900, and 720×1200 DPI, allowing operators to match quality and speed requirements per job type. The Ricoh GH2220 industrial printhead delivers ±0.1 mm positional accuracy across the 900 × 900 mm print area. An A1+ format job at 1440 DPI takes approximately 20 minutes per pass — well within commercial production cycle requirements.
The KY-420P clamping system accommodates book stacks from 0 to 500 mm in height (fully customizable upon order) and supports a maximum loading weight of 100 kg. The system is compatible with standard offset paper, coated paper, sticky notes, books with rounded corners, multi-stack clamped configurations, and oversized formats up to 900 mm in print width. This versatility makes it suitable across publishing, commercial printing, and specialty book finishing operations.
Standard B2B orders have a production and factory testing handling time of 7–10 business days. International sea freight transit typically takes 15–35 days depending on destination port and logistics route. All machines are fully tested and run-off inspected before shipment. Kylin Machines provides EXW, FOB, and CIF Incoterms quotations. Comprehensive shipping documentation including CE/test certificates and operation manuals are included with every order. Contact our team to receive a tailored logistics quotation for your country.
The Ricoh GH2220 printhead is compatible with aqueous (water-based) and solvent ink systems. The head supports a viscosity range of 6–16 mPa·s and surface tension of 25 ± 5 mN/m, ensuring compatibility with a wide range of commercial inkjet inks. The GH2220’s binary and greyscale jetting modes (drop volumes from 3–5 pl binary to 21 pl greyscale) allow for fine tonal gradation on coated and uncoated paper stocks used in book production.
Yes. Kylin Machines provides comprehensive after-sales support including remote diagnostics via video call, operator training documentation, and detailed maintenance manuals. Spare parts for the Ricoh GH2220 printhead and core mechanical components are stocked and available for global express shipping. A standard 30-day return window applies to qualifying cases. For long-term production contracts, extended service agreements with priority spare parts supply can be arranged. Contact our technical team to discuss support options for your region.
Digital Book Edge Printing: The Case for Plateless Industrial Fore-Edge Inkjet
Fore-edge printing — the practice of applying imagery or text to the visible page edges of a bound book — is one of the oldest and most visually striking techniques in the bookbinder’s repertoire. For centuries it was an exclusively manual process, accessible only to the highest-value collectible editions. The emergence of industrial digital inkjet systems has fundamentally changed this economics equation, bringing full-color fore-edge printing within reach of commercial print runs at any scale.
“The shift from plate-based edge printing to digital inkjet is not merely a workflow improvement — it is a structural change in what is commercially viable at any run length.” — Commercial Print Industry Review, 2024
Why the Ricoh GH2220 Printhead Sets the Industrial Standard
At the core of the KY-420P is the Ricoh GH2220 — a piezoelectric industrial printhead engineered for sustained high-frequency production. With 384 nozzles, a binary jetting frequency of 30 kHz, and a documented service life of 30 billion actuations per nozzle, the GH2220 is designed for the demands of continuous commercial operation rather than desktop or wide-format print applications.
The printhead’s multi-drop technology enables drop volume control from 3–5 pl in binary mode to 21 pl in greyscale mode, providing the tonal range required for photographic-quality fore-edge imagery on uncoated book paper. Compatibility with both aqueous and solvent ink systems ensures the KY-420P can serve book finishing operations across a wide range of substrate specifications without ink reformulation.
The Economics of Plateless Book Edge Printing
In a conventional plate-based fore-edge printing workflow, each new design requires a new plate — a cost that is fixed regardless of run length. For short-run titles, personalized editions, or seasonal catalog variations, this creates an economic barrier that makes decorative fore-edge printing unviable at volumes below several thousand copies.
The KY-420P eliminates this fixed cost entirely. Because the system is fully digital, the incremental cost of a design change is zero. A publisher can print a different design on each individual copy of a 50-book limited edition, or run 10,000 identical copies of a mass-market paperback fore-edge design — the machine handles both workflows with the same economic efficiency.
- No plate amortization cost — design changes are free at any run length
- Variable-data fore-edge printing for personalized or numbered editions
- Instant job changeover reduces production downtime to seconds
- Compatible with existing prepress and RIP software investments
- ±0.1 mm registration accuracy ensures consistent output across the entire run
Site Planning and Integration Considerations
At 400 kg machine weight and 2100 × 1300 × 1300 mm dimensions, the KY-420P requires a dedicated production floor footprint with adequate clearance for book loading and operator access. The 110V–220V universal power supply ensures global facility compatibility without transformer investment. A standard compressed air supply and ventilation appropriate for inkjet ink vapor are the primary utility requirements.
Integration into existing book finishing lines is straightforward. The KY-420P operates as a standalone station positioned between the book block preparation stage (collating, gluing, trimming) and the binding or casing-in stage. The plateless digital workflow means no dedicated prepress room or plate processing equipment is required upstream of the machine.
“B2B procurement teams evaluating book edge printing systems should prioritize printhead longevity, clamping system versatility, and software ecosystem compatibility — all three areas where the KY-420P delivers measurable advantages over alternative platforms.” — Post-Press Equipment Buyer’s Guide, 2025
Applications Across Commercial Print and Publishing
The versatility of the KY-420P makes it viable across a wide range of production segments. Commercial print shops serving trade publishers can offer fore-edge customization as a premium value-added service. Academic and educational publishers can use variable-data printing to produce edition-specific or language-specific fore-edge designs from a single book block specification. Gift book manufacturers can leverage the KY-420P’s short-run capability to produce small-batch personalized titles for retail and corporate gifting markets.
The machine’s compatibility with sticky notes, rounded-corner books, and multi-stack clamped blocks extends its applicability beyond standard rectangular book blocks to specialty formats increasingly demanded by the premium stationery and gift publishing sector.
B2B Procurement: Key Evaluation Criteria
For procurement teams conducting technical evaluation of the KY-420P, the following criteria represent the primary performance benchmarks against which competing platforms should be assessed: print resolution and accuracy across the full 900 × 900 mm format area; book stack loading capacity and height range; printhead service life and spare parts availability; software compatibility with existing RIP infrastructure; and total cost of ownership including ink system compatibility and consumables sourcing.
The KY-420P is positioned as a B2B capital equipment investment with a target ROI horizon of 12–24 months for commercial print shops with existing book finishing workflow capacity. Kylin Machines provides factory acceptance testing, full documentation packages, and international logistics support for all B2B orders.
