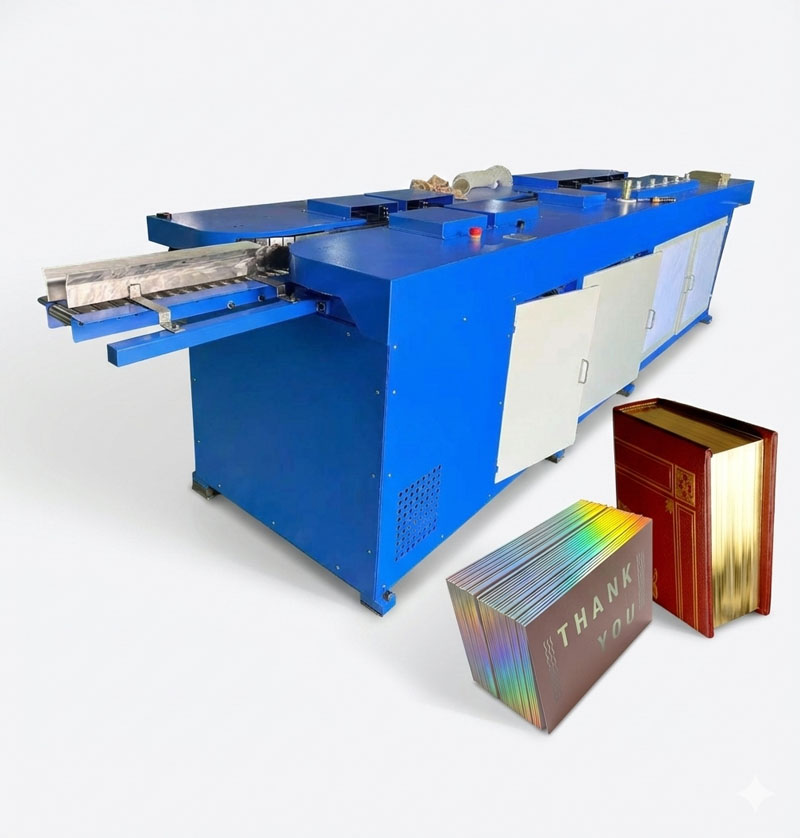

KY-100 Fully Automatic Book Edge Gilding Machine
Industrial-grade fully automatic edge gilding machine that stamps gold, silver, and holographic foil on all three book edges in one unattended cycle. Mirror-polish finish quality for luxury publishing and premium stationery.
Why Upgrade to Fully Automatic Edge Gilding?
Semi-automatic machines require manual repositioning for each edge. The KY-100 eliminates this bottleneck entirely.
⚠️ Semi-Auto & Manual Gilding Problems
- Manual edge rotation: Operator must unclamp, rotate, and re-clamp books for each of the 3 edges
- Inconsistent pressure: Manual clamping varies between operators, causing uneven foil adhesion
- Low throughput: Semi-auto machines process only 30-50 books/hr for 3-edge gilding
- High labor cost: Requires dedicated skilled operators for each gilding station
- Foil waste: Imprecise foil positioning wastes 10-15% of expensive gold/silver foil
- Quality variation: Edge finish quality depends on operator skill and fatigue level
✅ KY-100 Fully Automatic Solution
- Zero manual intervention: Load books once — machine gilds top, head, and tail automatically
- 9kg uniform pressure: Hydraulic clamping delivers consistent force across the entire edge surface
- 80-120 books/hr: 2-3x faster than semi-auto with perfect consistency
- 1-operator management: One person can supervise multiple KY-100 units simultaneously
- Precision foil control: Servo-driven foil feed minimizes waste to under 3%
- Mirror-polish standard: Every book receives identical premium finish quality, every time
Key Industrial Features
Built for 24/7 high-volume book finishing with industrial-grade precision and reliability.
3-Edge Auto Cycle
Stamps top, head, and tail edges in one continuous automatic cycle without manual repositioning. True fully-automatic operation.
Mirror-Polish Finish
Precision-ground heating plates and calibrated pressure deliver a flawless mirror-finish foil surface that meets luxury publishing standards.
Servo-Driven Foil Feed
Closed-loop servo motor precisely controls foil advancement, tension, and stamping speed for optimal transfer and minimal waste.
Heavy-Duty 3000kg Frame
Massive vibration-isolated chassis ensures rock-solid stability. The 9kg clamping pressure maintains even contact across the entire book edge.
Intelligent HMI Control
Full-color industrial touch panel for temperature, pressure, speed, and dwell time settings with recipe memory for instant job recall.
Global Componentry
Built with Schneider, Omron, and SMC components for worldwide serviceability and long-term industrial reliability.
Detailed Technical Specifications
Complete specifications for the KY-100 fully automatic book edge gilding machine.
| Model | KY-100 |
|---|---|
| Max Book Thickness | 100 mm |
| Clamping Table Size | 150 × 600 mm |
| Power Consumption | 15 KW |
| Machine Weight | 3,000 kg |
| Clamping Pressure | 9 kg |
| Edge Finish | Mirror Polish |
| Operation Mode | Fully Automatic (3-edge cycle) |
| Voltage | 380V, 3-Phase |
| Air Pressure Required | 0.6 – 0.8 MPa |
| Foil Types Supported | Gold, Silver, Copper, Holographic, Colored |
| Operators Required | 1 person (multi-unit supervision) |
| Warranty | 36 months (full parts & labor) |
Video Demonstration
Watch the KY-100 fully automatic book edge gilding machine delivering mirror-polish foil finishes at production speed.
How It Works
Four automated steps from raw book block to mirror-finish gilded edges.
Load & Clamp
Place book block on the clamping table. Hydraulic system applies uniform 9kg pressure across the entire edge surface.
Heat & Stamp Edge 1
Precision heating plate reaches set temperature. Servo-fed foil stamps the first edge with calibrated pressure and dwell time.
Auto-Rotate & Repeat
Machine automatically rotates the book to stamp the second and third edges — no manual intervention required.
Release & Stack
After all three edges are gilded, clamp releases and the finished book is ready for quality inspection and packing.
Application Scenarios
The KY-100 serves premium book finishing and luxury product manufacturing worldwide.

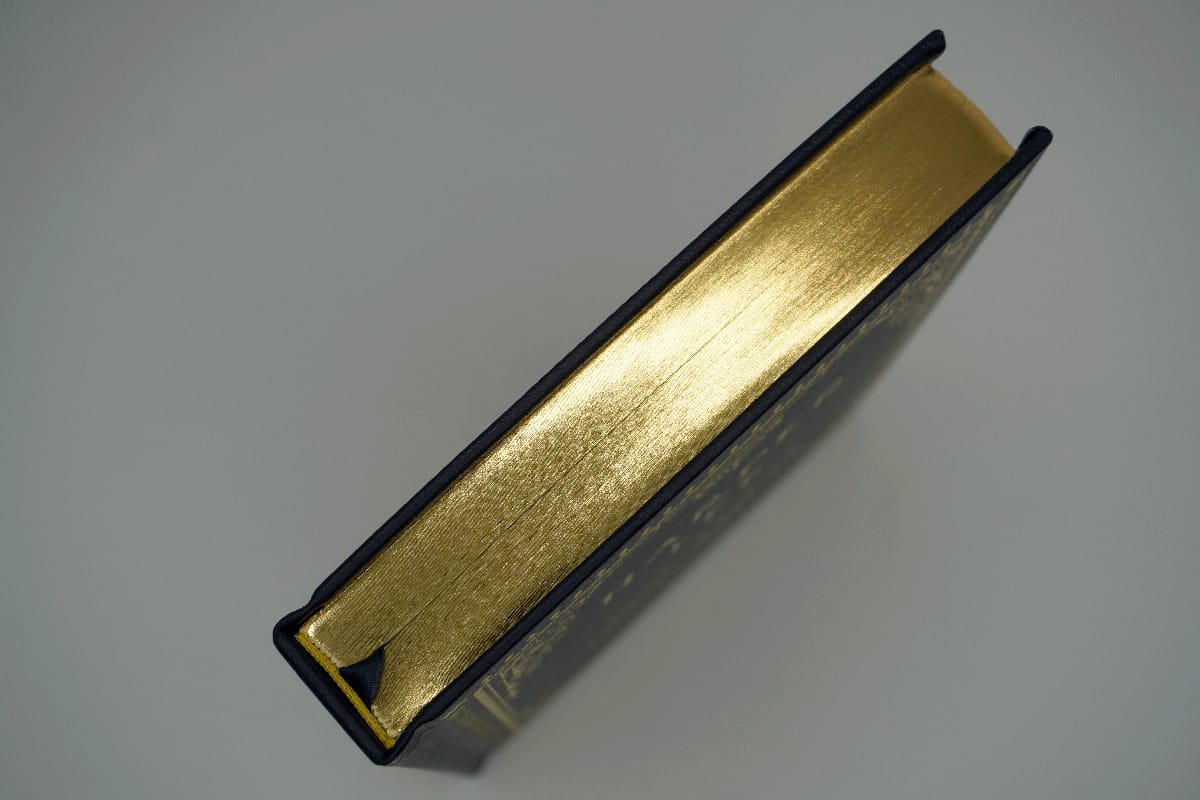

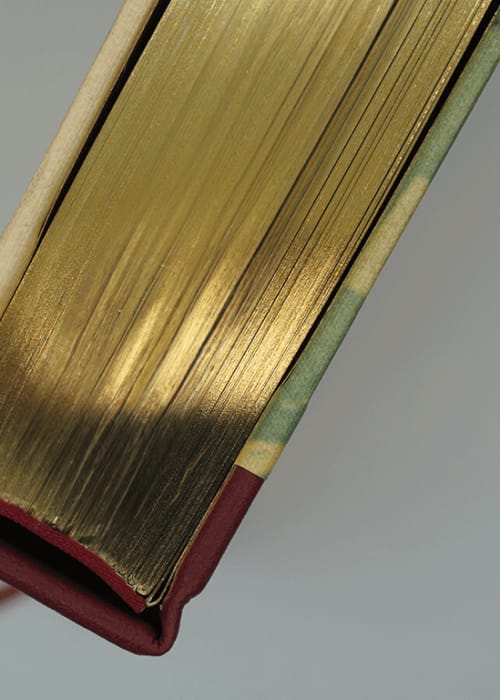

Luxury Hardcover Books
Gold and silver edge gilding for premium novels, collector’s editions, and coffee table books.
Bibles & Prayer Books
Traditional gold edge gilding for religious publications — the largest global market for edge-gilded books.
Premium Notebooks

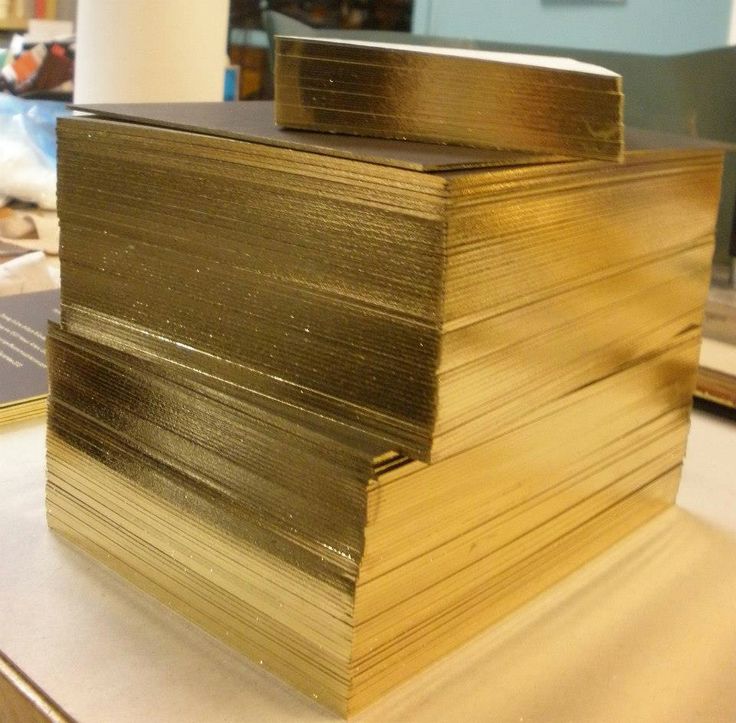

Branded edge gilding for luxury journals, executive planners, and designer stationery.
Photo Albums
Decorative edge finishing for wedding albums, portfolio books, and premium photo collections.
Gift Editions

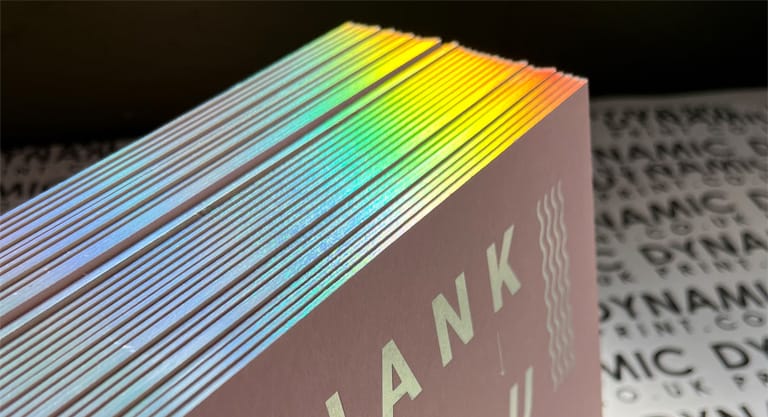

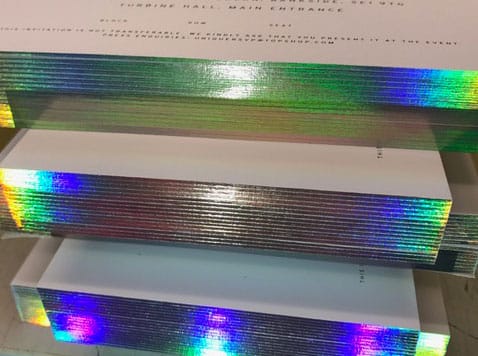

Holographic and colored foil edges for limited edition books, corporate gifts, and luxury box sets.
Corporate Publishing
Annual reports, executive handbooks, and VIP presentation materials with branded metallic edge finishing.
Production Method Comparison
See how the KY-100 compares to semi-automatic and manual edge gilding methods.
| Feature | KY-100 (Full Auto) | KY-410 (Semi-Auto) | Manual Gilding |
|---|---|---|---|
| Edges per Cycle | 3 (automatic) | 1 (manual rotation) | 1 |
| Speed (3-edge) | 80-120 books/hr | 30-50 books/hr | 10-20 books/hr |
| Finish Quality | Mirror polish | Good | Variable |
| Operator Intervention | Load/unload only | Rotate per edge | Full manual |
| Max Book Thickness | 100mm | 50mm | Unlimited |
| Foil Waste | <3% | 5-8% | 10-15% |
| Machine Weight | 3,000kg | 500kg | N/A |
| Investment Level | High | Medium | Low |
| Best For | High-volume premium | Medium volume | Small batch |
What Our Customers Say
Trusted by book finishing professionals and luxury publishers worldwide.
“Dear Jacob, I am writing to thank you for the recent delivery of spare parts. We have received the shipment in good condition and are pleased with the quality of the products you provided.”
“The machine is working now fine, beautiful… thank you so much and maybe if we need other kind of box making machines I will contact you.”
“We have purchased case maker Ky-450 last year, right now the machine is running very stable, we are going to order one more machine from Kylin.”
Frequently Asked Questions
Everything you need to know about the KY-100 fully automatic book edge gilding machine.
The KY-100 automates the entire 3-edge gilding cycle — clamping, foil feeding, stamping top, head, and tail edges, and unclamping — in one continuous operation. Semi-auto machines like the KY-410 require manual repositioning for each edge, tripling operator intervention.
The KY-100 handles book blocks up to 100mm thick, covering everything from slim notebooks to oversized art books and thick bibles. The clamping pressure (9kg) ensures even foil contact across the full edge surface.
The machine applies metallic gold, silver, copper, holographic, and colored foils. It also supports edge painting with metallic inks. The result is a mirror-polish finish that meets luxury publishing standards.
Throughput depends on book size and number of edges being gilded. Typical output for 3-edge gilding is 80-120 books per hour, significantly faster than semi-automatic alternatives that require manual edge rotation.
The clamping table measures 150mm x 600mm, accommodating book blocks from small pocket editions to large-format coffee table books. The pneumatic clamping system applies uniform 9kg pressure for consistent gilding across the entire edge.
Yes, the KY-100 uses pneumatic systems for clamping and foil transport. A standard 0.6-0.8MPa compressed air supply is required. The machine operates on 380V 3-phase power at 15KW.
Kylin provides a full 36-month factory warranty covering all mechanical, electrical, and servo components. Support includes free remote troubleshooting via video call, spare parts shipped within 48 hours, and optional on-site engineer visits worldwide.
Most book finishing operations achieve full ROI within 6-10 months through labor savings of up to 80% and elimination of multi-pass manual gilding. The machine replaces 3-5 workers while delivering higher quality mirror-finish results.
Ready to Deliver Mirror-Finish Edge Gilding at Scale?
Our book finishing engineers are ready to help you configure the right KY-100 setup for your production volume.
Related Machines
Complete your book finishing and edge treatment production line.
KY-530A Semi-Auto Edge Gilding Machine
KY-600A Jewelry Box Edge Gilding
KY-420P Book Edge Printing
KY-475 Book Cover Making Machine
The Complete Guide to Fully Automatic Book Edge Gilding Machines
Edge gilding — the art of applying metallic foil to the exposed edges of a book block — has been a defining feature of premium bookbinding for over five centuries. From illuminated manuscripts to modern luxury journals, gilded edges signal quality, permanence, and craftsmanship. Yet as the global demand for edge-gilded products has expanded beyond bibles and limited editions into mainstream premium stationery, corporate publishing, and luxury packaging, the traditional manual methods have become a critical production bottleneck.
From Semi-Automatic to Fully Automatic: The Productivity Leap
Semi-automatic edge gilding machines represented the first major advancement over hand gilding, mechanizing the heating and stamping process while still requiring an operator to manually rotate the book between edges. For 3-edge gilding — the standard for bibles, hardcover books, and premium notebooks — this means the operator must unclamp, rotate 90 degrees, re-clamp, and re-stamp twice per book. The KY-100 eliminates this bottleneck entirely. Its fully automatic 3-edge cycle handles clamping, foil feeding, stamping, rotation, and release without any manual intervention. The operator simply loads the book block and retrieves the finished product. This architectural difference translates to 2-3x higher throughput (80-120 vs. 30-50 books/hr), dramatically lower labor costs, and — critically — perfect consistency that is impossible to achieve with manual edge rotation.
Investing in the KY-100: Volume Requirements and ROI
The KY-100 is designed for operations processing 500+ edge-gilded books per day. At this volume, the labor savings alone — replacing 3-5 semi-auto gilding stations and their dedicated operators — deliver full ROI within 6-10 months. For lower volumes (under 200 books/day), the semi-automatic KY-410 offers an excellent entry point with the same Kylin build quality and warranty coverage. Both machines use identical foil types and deliver comparable finish quality; the primary difference is throughput and automation level. Contact Kylin Machines today for a personalized assessment of which edge gilding solution best fits your production volume, product mix, and growth plans.
