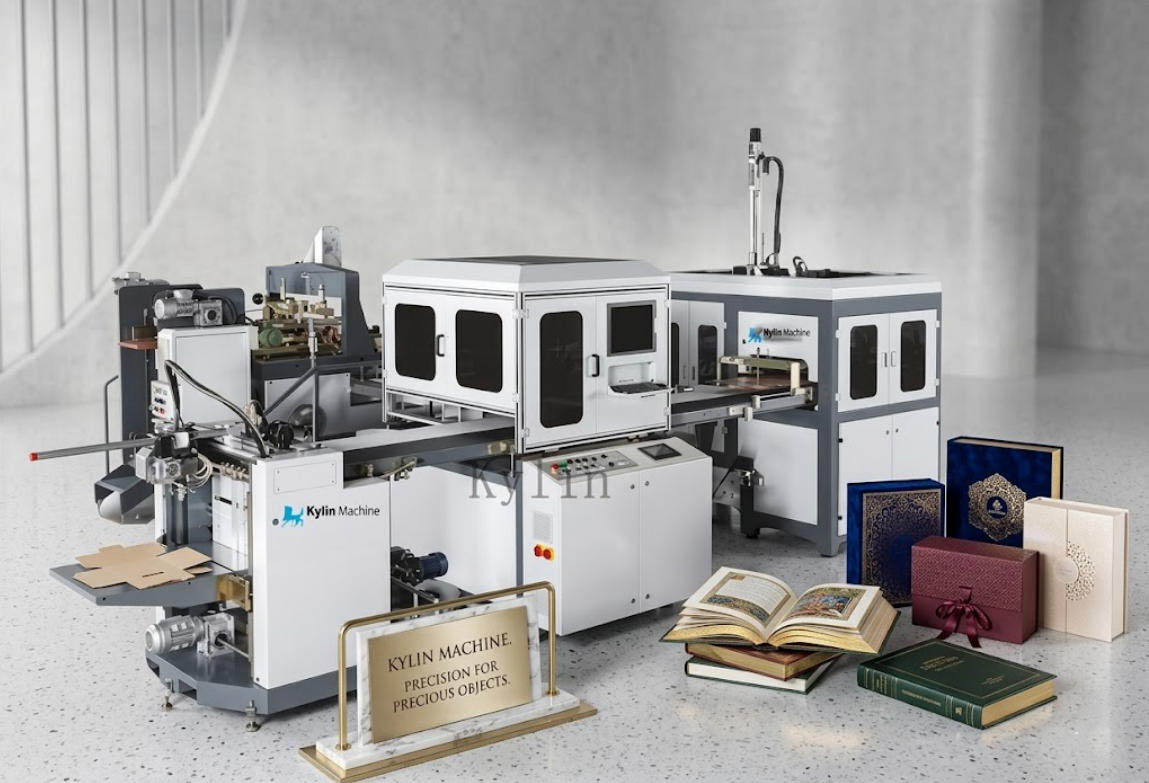

Fully Automatic Hybrid Machinery for Hard Cover & Rigid Box Making
Watch our state-of-the-art Hybrid Machinery for making Hard Covers and Rigid Boxes in full action. This fully automatic machine is designed to revolutionize your production line with high-speed precision, zero errors, and a seamless switch between hard cover and rigid box manufacturing.
- 2-in-1 Hybrid Functionality (Hard Cover & Rigid Box)
- Smart Robotic Positioning System
- High-speed Automatic Gluing & Folding
- User-friendly Touch Screen Control
- Perfect for mass production of premium packaging
The Case for Full Automation
Traditional semi-automatic and manual rigid box lines create costly bottlenecks. Here’s what changes with the KY-600A.
- ✘Manual gluing inconsistency causes 8–15% defect rate, wasting premium paper and board stock.
- ✘Semi-automatic lines top out at 6–10 pcs/min, creating throughput ceilings during peak demand.
- ✘Separate machines for hard covers and rigid boxes require dual operator teams and double floor space.
- ✘Size changeover on legacy machines takes 45–90 minutes, killing short-run profitability.
- ✘Inconsistent corner folding and wrapping tension requires manual rework downstream.
- ✘No production data capture makes it impossible to benchmark OEE or identify waste cycles.
- ✓Servo-controlled glue application system delivers ±0.1mm precision, reducing defect rate to under 1%.
- ✓Full automation reaches 26 pcs/min — 3× the output of semi-auto lines with one operator.
- ✓Hybrid design handles both hard cover and rigid box formats within the same integrated machine line.
- ✓Digital HMI with recipe storage enables format changeover in under 15 minutes.
- ✓Synchronized wrapping and pressing units guarantee consistent corner quality on every piece.
- ✓PLC-based control with real-time counter and fault diagnostics supports OEE tracking.

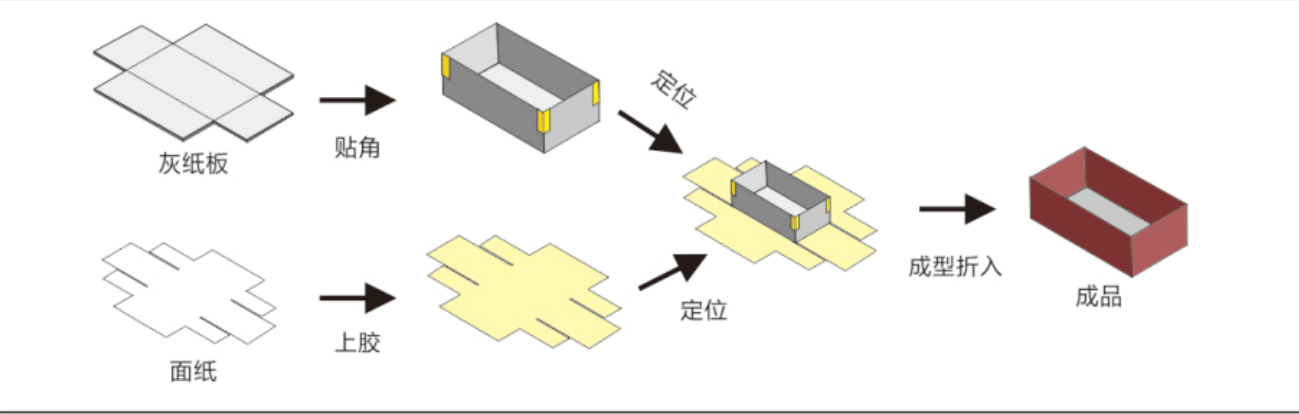

How It Works — 4-Step Production Sequence
From raw board and paper to a finished hard cover or rigid box, the KY-600A executes a seamless 4-station automated workflow.
Paper Feeding & Glue Application
Auto paper feeder draws wrapping sheets from the stack. Hot-melt glue is applied with servo precision to the exact coverage zone, eliminating excess glue and dry spots.
Board Positioning & Alignment
Chipboard or greyboard is placed and auto-positioned onto the glued paper sheet using pneumatic locators. Sensors confirm register before proceeding.
Wrapping, Corner Folding & Pressing
Automated folding bars wrap all four edges in sequence. Corner tuck units form clean 90° corners. A synchronized pressing station bonds paper to board under controlled pressure.
Forming, Scoring & Delivery
For rigid boxes, forming heads create the box structure with scored spine and walls. Finished pieces exit onto the conveyor for QC inspection or inline downstream process.
Built for Industrial-Scale Output
Six engineering pillars that differentiate the KY-600A from conventional case-making and rigid box equipment.
True Hybrid Architecture
Single machine platform covers both hard cover (book binding, albums, diaries) and rigid box (drawer, lid-base, tray) formats. No separate investment required for dual capability.
Servo-Driven Precision Control
Multi-axis servo motors govern gluing, positioning, and wrapping stages. Closed-loop feedback maintains sub-millimeter registration accuracy at full production speed.
HMI Touchscreen & Recipe Storage
Industrial-grade 10″ HMI with color touchscreen. Store unlimited job recipes for rapid format changeover (<15 min). Real-time speed, count, and fault display.
Wide Format Compatibility
Box sizes from L80×W60×H10mm up to L550×W400×H160mm. Paper sizes from L140×W90mm to L690×W620mm. Covers the full commercial rigid box range without tooling swaps.
Heavy-Duty Welded Steel Frame
3,800 kg structural-steel frame machined to ±0.05mm tolerance. Vibration-damped base eliminates print registration error. Built for 3-shift, 24/7 continuous operation.
Low Energy, High Output
At just 14KW rated power, the KY-600A delivers 26 pcs/min — an energy efficiency ratio that outperforms competing machines in its class by 20–35%.
Machine Layout & Component Detail
Explore the full-line layout and key station components of the KY-600A.

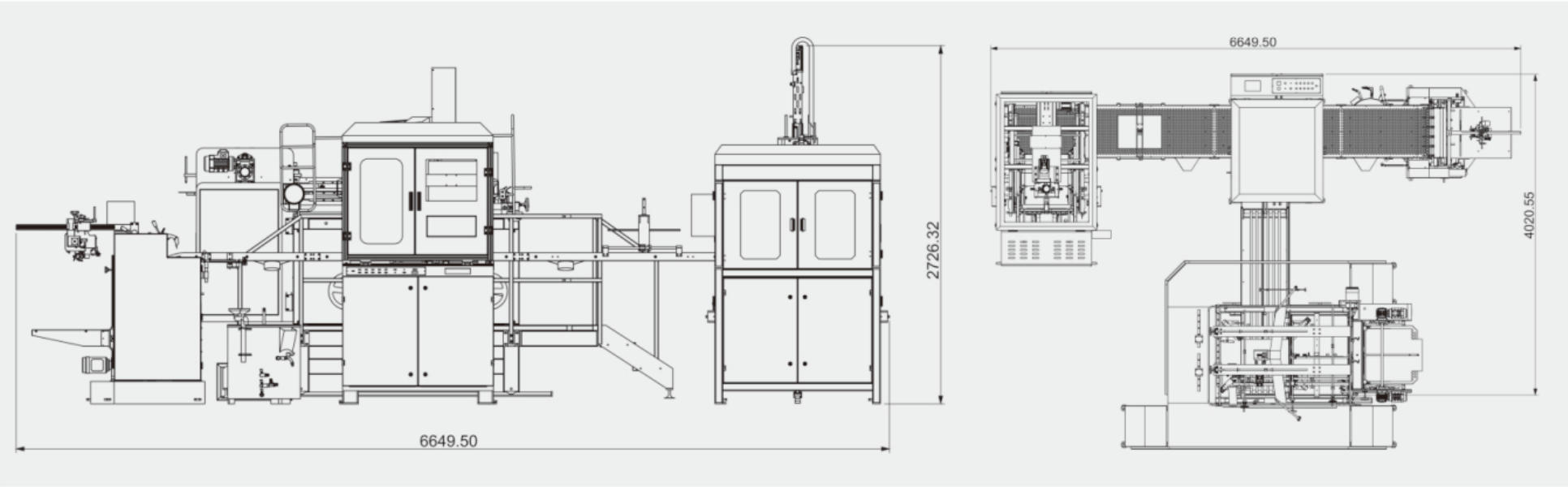

Full footprint: L6,650 × W4,700 × H2,900mm — includes paper feeder, gluing unit, positioning station, wrapping unit, forming station, and output conveyor.

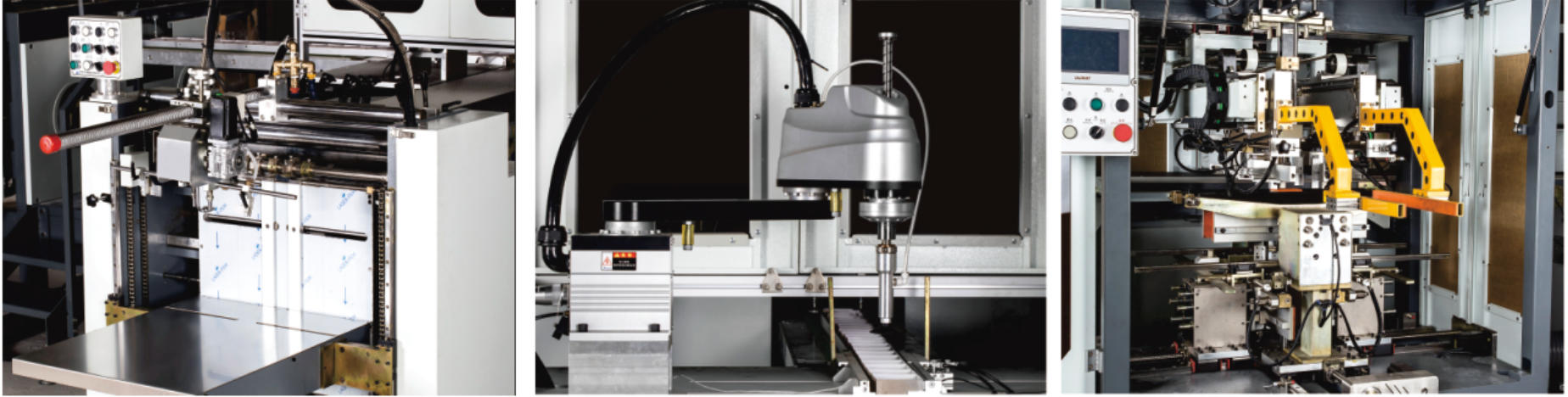

Key component detail: servo-driven glue head, pneumatic board positioner, synchronized folding bars, corner tuck unit, and pressing station.
Full Technical Specifications
Complete parameter sheet for engineering evaluation and procurement comparison.
| Parameter | Specification |
|---|---|
| Model | KY-600A |
| Box Size (Max.) | L550 × W400 × H160 mm |
| Box Size (Min.) | L80 × W60 × H10 mm |
| Paper Size (Max.) | L690 × W620 mm |
| Paper Size (Min.) | L140 × W90 mm |
| Hard Cover Size (Max.) | W500 × L1100 mm |
| Hard Cover Size (Min.) | W80 × L140 mm |
| Hard Cover Thickness | 1-5 mm |
| Rated Power | 14 KW |
| Voltage | 380V / 3-Phase / 50Hz (60Hz available) |
| Production Speed | 20–26 Pcs/Min |
| Net Weight | 3,800 Kg |
| Machine Dimensions | L6,650 × W4,700 × H2,900 mm |
| Control System | PLC + HMI Touchscreen |
| Glue System | Hot-Melt Servo Glue Application |
| Warranty | 12 Months (Mechanical & Electrical) |
| Lead Time | 7–10 Business Days (Post Order Confirmation) |
What the KY-600A Produces
From luxury gift packaging to hard cover bookbinding — one machine, multiple premium product formats.
Watch the KY-600A in Production
Real-world demonstration of the full automated sequence from paper feeding to finished rigid box output at 20–26 pcs/min.
Frequently Asked Questions
B2B procurement answers for packaging and printing equipment buyers.
What types of products can the KY-600A produce?
The KY-600A is a hybrid machine capable of producing both hard cover books and rigid boxes in a single automated workflow. Applications include luxury rigid gift boxes, drawer-style boxes, hard cover book binding, photo album covers, wine box packaging, and premium consumer electronics packaging. The wide size range (L80–550 × W60–400 × H10–160mm) accommodates the vast majority of commercial formats without tooling changes.
What is the production speed and how does it compare to semi-automatic alternatives?
The KY-600A operates at 20–26 pieces per minute under standard production conditions, which represents a 3–5× throughput improvement versus semi-automatic or manual case-making lines. The fully automated gluing, positioning, wrapping, and corner-folding sequence eliminates manual dwell time between operations. A comparable semi-automatic line typically achieves 6–10 pcs/min with 2–3 operators; the KY-600A achieves 26 pcs/min with a single operator.
What are the electrical and infrastructure requirements?
The KY-600A requires a 380V / 3-phase power supply with a rated power of 14 KW. The machine footprint is L6,650 × W4,700 × H2,900 mm and weighs approximately 3,800 kg. A minimum floor load rating of 500 kg/m² is recommended. Compressed air supply at 0.5–0.7 MPa is required for pneumatic components. For 60Hz markets (USA, Canada, parts of Latin America), power frequency conversion options are available on request.
What is the lead time and what does international shipping involve?
Standard factory production and pre-shipment testing (FAT) takes 7–10 business days after order confirmation and deposit receipt. International sea freight transit typically ranges from 15 to 35 days depending on the destination port. Full FOB, CIF, and DDP Incoterms options are available. Professional wooden crating with moisture barrier protection and export markings is standard. On-site installation, commissioning, and operator training can be arranged via our global agent network.
What after-sales support and spare parts program is available?
Kylin Machines provides a 12-month warranty covering all mechanical and electrical components. Remote diagnostic support is available via video call within 72 hours. Critical wear parts (glue rollers, pressure blades, suction cups) are stocked in regional warehouses for same-week dispatch. Annual maintenance contracts, extended warranty programs, and OEM spare-parts agreements are available for high-volume buyers. All machines ship with a detailed English-language operations manual and electrical diagram package.
Can the KY-600A integrate into an existing automated production line?
Yes. The KY-600A is engineered with upstream and downstream integration in mind. Its PLC-based control system supports synchronized operation with automatic board feeders, paper feeders, and conveyor-based output systems. Standard I/O interfaces (24VDC, digital) allow connection to MES and production monitoring systems. Custom integration engineering is available for OEM and turnkey project requirements. Contact our technical team for a site survey and integration feasibility assessment.
Fully Automatic Hybrid Machinery for Hard Cover & Rigid Box Making: The Complete B2B Buyer’s Guide
What Defines a “Hybrid” Hard Cover and Rigid Box Machine?
In the post-digital print era, packaging converters and commercial binderies face mounting pressure to consolidate capital equipment while simultaneously expanding their format capability. A hybrid hard cover and rigid box making machine — such as the KY-600A — addresses this dual mandate by integrating what were traditionally two separate machine platforms into a single automated production line.
The term “hybrid” in this context refers to the machine’s engineering architecture: a unified gluing, positioning, wrapping, and forming system that can be configured — via HMI recipe selection — to produce either flat-board hard covers (for books, albums, and diaries) or structured rigid boxes (including drawer, tray, lid-base, and multi-panel formats) without requiring separate machine platforms or extensive mechanical changeover.
“The convergence of hard cover and rigid box capability in a single automated platform is redefining what a mid-size packaging converter can offer — and at what cost per unit.”
Key Performance Benchmarks for Rigid Box Machinery
When evaluating rigid box and hard cover equipment for B2B procurement, three primary performance metrics dominate purchasing decisions: throughput (pcs/min), format range, and energy consumption per unit. The KY-600A achieves 20–26 pcs/min across its full size range — a figure that positions it competitively against European-manufactured equivalents that typically operate at 15–22 pcs/min at significantly higher capital cost.
- Throughput: 20–26 pcs/min (single operator)
- Format range: L80–550 × W60–400 × H10–160mm (box); L140–690 × W90–620mm (paper)
- Energy efficiency: 14 KW rated power — approximately 0.54 KW per pcs/min output ratio
- Changeover time: <15 minutes via HMI recipe recall (compared to 45–90 min on legacy machines)
- Defect rate: <1% with servo-controlled glue application (industry benchmark: 3–8%)
Hard Cover Book vs. Rigid Box Production: A Technical Distinction
While both processes share the fundamental operations of gluing, board positioning, and paper wrapping, they diverge at the forming and pressing stage. Hard cover production terminates at a flat, pressed board-and-paper assembly (the “case”) which is subsequently cased-in with the book block. Rigid box production requires additional forming — creating the box walls, spine structure, and corner tucks that give the box its three-dimensional form.
The KY-600A’s hybrid architecture manages this divergence through a configurable forming station that can be set to either flat-pass (hard cover mode) or box-forming mode. This dual capability is protected by a robust PLC program with independent parameter sets for each format family, ensuring that format-switching does not introduce parameter contamination or misalignment risk.
Application Sectors and Typical Order Profiles
The KY-600A’s format range and automation level make it appropriate for several distinct end-market segments. In the luxury consumer goods sector, it produces rigid gift boxes for cosmetics, jewelry, watches, spirits, and electronics accessories. In the publishing and education sector, it manufactures hard cover book cases, photo album covers, diploma and certificate covers, and institutional binders.
- Luxury retail packaging: rigid gift boxes, magnetic closure boxes, ribbon-pull boxes
- Publishing and bindery: hard cover cases, sewn-and-glued book blocks, textbook covers
- Corporate and promotional: custom-printed rigid boxes for product launches, gift sets
- Pharmaceutical and medical: rigid compliance packaging, clinical trial kit boxes
- Food and beverage premium: chocolate boxes, wine presentation cases, tea gift boxes
“For converters supplying multiple end markets, the KY-600A’s hybrid flexibility directly translates to a wider addressable customer base — without a proportional increase in equipment investment.”
ROI Analysis: Fully Automatic vs. Semi-Automatic Investment
A typical semi-automatic rigid box line operating at 8 pcs/min with 2 operators produces approximately 960 pieces per two-hour shift (accounting for material loading and quality checks). The KY-600A at 22 pcs/min with 1 operator produces approximately 2,640 pieces in the same period — a 175% throughput increase with 50% labor reduction. At a conservative blended labor cost of $18/hr and a run rate of 250 working days, this represents a direct labor saving of approximately $36,000 per year, before factoring in defect rate reduction and improved material utilization.
Capital payback periods for the KY-600A in established commercial environments typically range from 14 to 24 months — a figure consistent with industry benchmarks for full-automation upgrades in the printing and post-press sector.
Installation, Commissioning, and Operator Training
The KY-600A ships with full documentation including an English-language operator manual, electrical schematic package, PLC program backup, and recommended spare parts list for the first year of operation. On-site installation requires a trained engineer team (provided by Kylin Machines or authorized regional agents) and typically takes 3–5 days including leveling, utilities connection, PLC parameter loading, and trial production run. Operator training is delivered over 1–2 days covering machine startup, HMI operation, job recipe creation, routine maintenance, and basic fault diagnosis.
