KY-VP-850
Mold-Free Irregular Case Maker
Dual-Layer Wrapping · ±0.1 mm CCD Precision
The world’s first dual-layer hardcover making machine with a triple servo (3-axis independent) drive system and CCD visual positioning at ±0.1 mm accuracy. Craft irregular rigid box shapes — hexagon, octagon, L-shape — in 1–5 minutes, zero molds required.
Industry Pain Points → Solved
Why Packaging Plants Switch to the
KY-VP-850 Automatic Case Maker
* Estimates based on 250 working days/year, 8 hrs/shift. Machine list price used for payback calculation. Individual results vary.
Exclusive Technology
Craft Complex Irregular Shapes.
Zero Molds Required.
Traditional irregular rigid box making machines force you to pay $500–$3,000 per shape mold and wait 2–6 weeks for delivery. The KY-VP-850’s triple servo system eliminates all of that — type dimensions on the touchscreen, press Start, begin production in minutes.
- Digital Dimension Input Enter width, height, and corner angles on the HMI touchscreen. The triple servo axes position instantly to spec — no wrenches, no fitters.
- Triple Servo 3-Axis Independent Control Each axis is independently driven and precisely calibrated. Shape memory stores unlimited job presets — recall any shape in seconds.
- CCD Camera Verification at ±0.1 mm The visual positioning system validates alignment on every single piece — even irregular shapes with no reference edge.
- Eliminate Mold Lead Time Completely Quote new custom packaging jobs with confidence. Start production same day — your competitors wait 2–6 weeks for molds.
- Full Dual-Layer Wrapping on All Shapes Premium two-layer wrapping quality applied automatically on every irregular shape — a capability unique to the KY-VP-850 worldwide.
Industry First
No other mold-free automatic case maker on the market combines dual-layer wrapping + CCD visual positioning + triple servo multi-shape capability in a single machine. The KY-VP-850 is a category of one.
Engineering Advantages
Six Reasons the KY-VP-850 Outperforms
Every Other Automatic Case Maker
Triple Servo 3-Axis Drive
Three fully independent servo motors control board placement, material feeding, and folding — each with its own encoder feedback loop. Zero backlash, zero mechanical wear drift across millions of cycles.
Core DifferentiatorCCD Visual Positioning ±0.1 mm
The high-resolution CCD camera continuously captures and corrects the position of each greyboard piece before wrapping. Material batch variation, ambient temperature, and humidity — all compensated automatically.
Patented TechnologyWorld’s 1st Dual-Layer Wrapping
Applies two distinct wrapping material layers in a single continuous automated cycle. Achieves premium tactile quality and structural rigidity — previously only possible with two separate machines or manual second-pass processes.
Industry First1,200 pcs/hr Sustained Output
Rated continuous throughput of up to 1,200 pieces per hour — 8× to 15× faster than skilled manual operators — with consistent quality maintained across full 8-hour shifts and multi-shift production schedules.
Production PowerMold-Free Shape Freedom
Irregular rigid box making — octagon, hexagon, L-shape, trapezoid, pentagon, and any custom polygon — all via digital parameter input. First article ready in 1–5 minutes. Shape library stores unlimited job recipes.
Zero Tooling CostSingle-Operator Full Shift
The fully automated feed, positioning, wrapping, and discharge cycle requires just one operator to supervise — reducing labor cost by 75–85% versus manual case assembly while processing a wider material and format range.
Labor EfficiencyProcess Overview
How the KY-VP-850 Automatic Case Maker Works
Digital Setup & Board Feed
Input case dimensions and shape parameters on the HMI. Servo-driven feeder picks and positions greyboard panels accurately.
0:09 – 0:15 (CCD Target)
CCD Visual Alignment
The CCD camera captures the greyboard position at ±0.1 mm precision. Real-time correction ensures perfect board-to-material registration.
0:01 – 0:08 (Feeder/Glue)
Dual-Layer Wrapping
Adhesive is applied under precision pressure. Both wrapping material layers are folded and bonded in a single automated cycle.
0:15 – 0:54 (Folding Process)
Automatic Discharge
Finished cases pass through a precision pressing station for flat bonding and are automatically stacked, ready for shipping.
1:18 – 1:49 (Finished Product)
Full Specifications
KY-VP-850 Technical Parameters
Every parameter of this visual positioning automatic case maker is engineered to exceed the precision and throughput demands of professional packaging and bookbinding facilities.
| Parameter | Specification | Performance Level |
|---|---|---|
| Model | KY-VP-850 | Industrial Grade |
| Maximum Case Size | Large Format | |
| Production Speed | High Speed | |
| Positioning Accuracy | CCD Visual System | |
| Board Thickness | 1 – 4 mm | Greyboard / Chipboard |
| Drive System | Triple Servo (3-Axis Independent) | World’s 1st |
| Alignment System | Visual Positioning (CCD Camera) | Real-Time Auto-Correction |
| Wrapping Materials | Art paper, cloth, PVC, leather, laminate | Dual-Layer Capable |
| Special Feature | Dual-Layer Wrapping Support | Industry First |
| Power Consumption | 12 KW | |
| Voltage | 380V, 3-Phase | Regional Variants Available |
| Machine Weight | 1,200 kg | |
| Operators Required | 1 Person | Full-Shift Supervision |
Competitive Benchmark
KY-VP-850 vs. Traditional Case Makers:
The Triple Servo Advantage
An objective, specification-based comparison between manual assembly, traditional cam-driven automatic case makers, and the KY-VP-850.
| Criteria |
Manual Assembly
4–6 Operators |
Traditional Cam-Driven
Auto Case Maker |
KY-VP-850
Triple Servo |
|---|---|---|---|
| Production Speed | 80–150 pcs/hr | 500–800 pcs/hr | Up to 1,200 pcs/hr |
| Positioning Accuracy | ±2–5 mm (human variance) | ±0.5–1 mm (mechanical stop) | ±0.1 mm (CCD Camera) |
| Irregular Shape Support | ✘ Manual cutting only | ✘ Requires mold ($500–$3K) | ✓ Mold-Free, Digital Input |
| Shape Changeover Time | 30–60 min (manual) | 2–4 hrs + mold wait | 1–5 minutes (digital) |
| Dual-Layer Wrapping | ✘ Manual 2nd pass | ✘ Not supported | ✓ Single-Pass Automated |
| Drive System | Human powered | Single motor + cam mechanism | Triple Servo (3-Axis Independent) |
| Operators Required | 4–6 per shift | 2–3 per shift | 1 Person |
| Reject Rate (Typical) | 3–8% (fatigue-driven) | 1–2% (mechanical drift) | <0.3% (CCD verified) |
| Mold / Tooling Cost | Low (no molds) | $500–$3,000 per shape | $0 — Zero Tooling |
| Job Recipe Storage | None | Limited presets | Unlimited (HMI library) |
| Board Thickness Range | 1–6 mm (manual) | 1–3 mm (cam limited) | 1–4 mm (servo-adaptive) |
| Annual Labor Cost (est.) | $120,000–$240,000 | $60,000–$120,000 | $25,000–$40,000 |
| KY-VP-850 wins on all 12 measured criteria — production speed, accuracy, shape flexibility, dual-layer capability, and total cost of ownership. HS Code: 8440.10 | |||
Application Examples

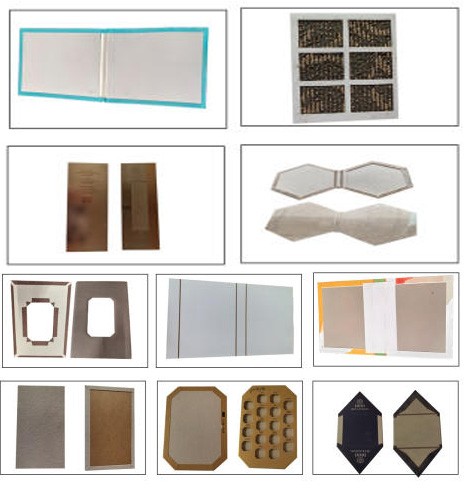

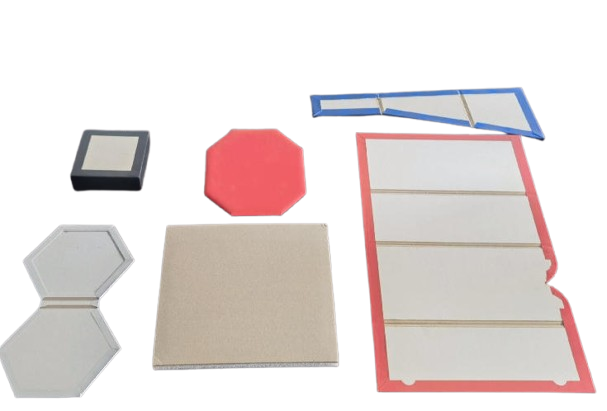

What the KY-VP-850 Produces
Machine Demo
See the Triple Servo Automatic Case Maker
Running at Full Speed
Buyer Questions Answered
Frequently Asked Questions —
KY-VP-850 Automatic Case Maker
The KY-VP-850 replaces all of that with a Triple Servo (3-axis independent) drive system. Format and shape changes are made via digital input on the HMI touchscreen — all three axes reposition automatically in 1–5 minutes. No molds, no fitters, no downtime.
Additionally, the KY-VP-850’s CCD visual positioning system delivers ±0.1 mm accuracy — 5× to 10× tighter than cam-driven mechanical positioning — and automatically compensates for material feed variation in real time.
Supported shapes include: octagon, hexagon, pentagon, trapezoid, L-shape, U-shape, and any custom polygon your customer specifies. The shape recipe library stores unlimited presets — recall any shape in seconds for repeat orders.
Zero mold cost, zero mold lead time. A shape that would cost $1,500 and take 4 weeks on a cam-driven machine is production-ready in under 5 minutes on the KY-VP-850.
Compatible wrapping materials include: art paper (gloss and matte), book cloth (various weights), PVC film, genuine and synthetic leather, pre-laminated sheets, and specialty laminates.
The CCD visual positioning system ensures ±0.1 mm alignment of both layers, regardless of material thickness variation between batches. Always provide material samples during pre-sales consultation for application-specific validation.
• Labor savings: Replacing 4–6 operators ($25,000–$40,000/yr each) with 1 supervisor.
• Mold elimination: For shops producing 5+ irregular shapes/year, savings of $5,000–$20,000 in mold tooling costs alone.
• Throughput increase: From 150–200 pcs/hr (manual) to 1,200 pcs/hr — unlocking new order volumes without additional headcount.
• Reject reduction: CCD ±0.1 mm accuracy typically reduces reject rates from 3–8% (manual) to under 0.3% — directly recovered as revenue.
Use the interactive ROI calculator above to model your specific production numbers. For shops currently outsourcing case-making, payback is often faster: 4–6 months.
International Freight: Sea freight transit 15–35 days depending on destination port. HS Code: 8440.10. Full export documentation included (commercial invoice, packing list, certificate of origin). Optional SGS pre-shipment inspection available.
Installation & Commissioning: 3–5 days on-site by Kylin-certified engineers.
Operator Training: Included (up to 3 days). Remote diagnostic access provided for ongoing support.
Warranty: 2-year full warranty covering all mechanical and electrical components. Guaranteed spare parts dispatch within one business week. Optional extended maintenance contract for Years 3–5 available.
Power: Standard 380V / 3-Phase. North American 460V/60Hz and other regional voltage variants available on request.
Kylin’s application engineering team provides integration mapping documents and can advise on line layout optimization for your specific facility dimensions and workflow. Contact our technical team with your floor plan and production requirements for a customized integration proposal.
Buyer’s Guide & Technical Analysis
The Complete Guide to Choosing a Dual-Layer Automatic Case Maker for Industrial Packaging & Bookbinding
The market for automatic case makers has evolved significantly in the past five years. What began as a choice between manual assembly and basic cam-driven automation has expanded into a sophisticated spectrum that now includes triple servo drive systems, CCD visual positioning, and — with the KY-VP-850 — the world’s first dual-layer hardcover making machine capable of mold-free irregular shape production.
For B2B buyers in packaging converting, print finishing, and bookbinding, this guide clarifies the critical decision criteria and explains why the KY-VP-850 is increasingly the default specification for premium production facilities in Europe, North America, and Asia.
“The combination of triple servo precision and dual-layer wrapping in a single machine is a genuine step-change. We eliminated four operator positions and opened three new irregular-shape product lines in the first quarter alone.” — Production Manager, European packaging converter
Why Triple Servo Drive Is Superior to Cam-Driven Mechanisms
Traditional cam-driven automatic case makers use a single motor connected through a series of cams and mechanical linkages. This architecture imposes rigid coupling between all machine axes — a compromise that limits both speed and format flexibility. When you need a new shape, you change the cam profile or mechanical stop, a process requiring skilled maintenance and significant downtime.
The KY-VP-850’s triple servo (3-axis independent) drive system decouples all three axes entirely. Each axis has its own servo motor with encoder feedback, its own motion controller, and its own parameter set stored in the job recipe library. The result is a machine that can:
- Change format dimensions in 1–5 minutes via touchscreen input
- Produce irregular shapes without any mechanical modification whatsoever
- Maintain positioning accuracy of ±0.1 mm independently on each axis
- Adapt axis speeds independently to optimize for different material properties
- Store unlimited job presets with instant recall for repeat orders
CCD Visual Positioning: How ±0.1 mm Is Achieved in Practice
The visual positioning case maker ±0.1mm specification of the KY-VP-850 is achieved through a dedicated CCD (charge-coupled device) camera system positioned above the board feed path. The camera captures a high-resolution image of each greyboard piece as it enters the wrapping zone.
An embedded image processing algorithm calculates the exact position of the board relative to the wrapping material in real time — and the servo axes micro-correct the position before the wrapping cycle begins. This happens on every single piece, eliminating the cumulative drift that causes batch reject spikes on conventional machines.
The practical impact: reject rates drop from 3–8% on manual lines and 1–2% on cam-driven machines to under 0.3% on the KY-VP-850 — representing substantial recovered revenue on high-volume production runs.
Mold-Free Irregular Rigid Box Making: The Business Case
For packaging converters serving premium brands, irregular rigid box making has historically been a high-friction, high-cost product category. Each new shape requires a custom mold: $500–$3,000 in tooling cost, 2–6 weeks of lead time, and dedicated storage space for mold inventory. Shapes can’t be profitably produced in short runs because mold amortization drives up unit cost.
The KY-VP-850 eliminates this entire constraint. There are no molds — ever. Any shape is configured through numeric parameter input. A new shape takes 1–5 minutes to set up. Short runs of 50–100 pieces of a unique hexagonal gift box are as economical as long runs of 10,000 standard rectangles.
Ready to see the KY-VP-850 mold-free automatic case maker in action for your specific shape requirements? Our applications team can provide a shape-specific production demo on your requested format.
Dual-Layer Wrapping: Technical Architecture and Market Applications
The dual-layer wrapping capability of the KY-VP-850 is the feature that most clearly distinguishes it from every other automatic case maker currently in production worldwide. Understanding the technical architecture helps clarify why this matters for premium packaging customers.
A standard single-layer case maker applies one wrapping material to the prepared greyboard assembly. Premium packaging often demands a second material layer — a structural base wrap plus a decorative outer wrap — for both aesthetic and functional reasons: embossed texture, UV resistance, anti-scratch protection, or multi-material branding requirements.
On conventional equipment, this requires either a manual second-pass operation (labor-intensive, prone to misalignment) or a dedicated second machine (capital-intensive, space-consuming, workflow-fragmenting). The KY-VP-850 integrates both layers into a single automated cycle — the only machine in the world currently capable of this.
Market applications for dual-layer hardcover production include:
- Luxury gift box manufacturing — base substrate plus premium leather or foil outer layer
- Premium photo album production — structural board plus high-definition printed cover
- Corporate presentation packaging — rigid cases for product launches, investor decks
- Collector’s edition book production — hardcover cases with embossed cloth plus printed jacket layer
- Wine and spirits packaging — multi-material rigid cases for premium bottle presentation
Further Reading and Related Resources
For a comprehensive evaluation framework covering all automatic case maker categories — from entry-level semi-automatic models to full production lines — see our Hard Cover Making Machine Buying Guide 2026. The guide covers production volume thresholds, format range analysis, power infrastructure requirements, and ROI modeling methodology for B2B procurement decisions.
Complete Product Line
Explore the Full Automatic Case Maker Range
Get Started Today
Ready to Eliminate Mold Costs and Achieve
±0.1 mm Automatic Case Making?
Speak with our applications engineering team about your specific production requirements. We’ll provide a customized quotation, shape-specific production demo video, and ROI analysis — typically within 24 hours.
