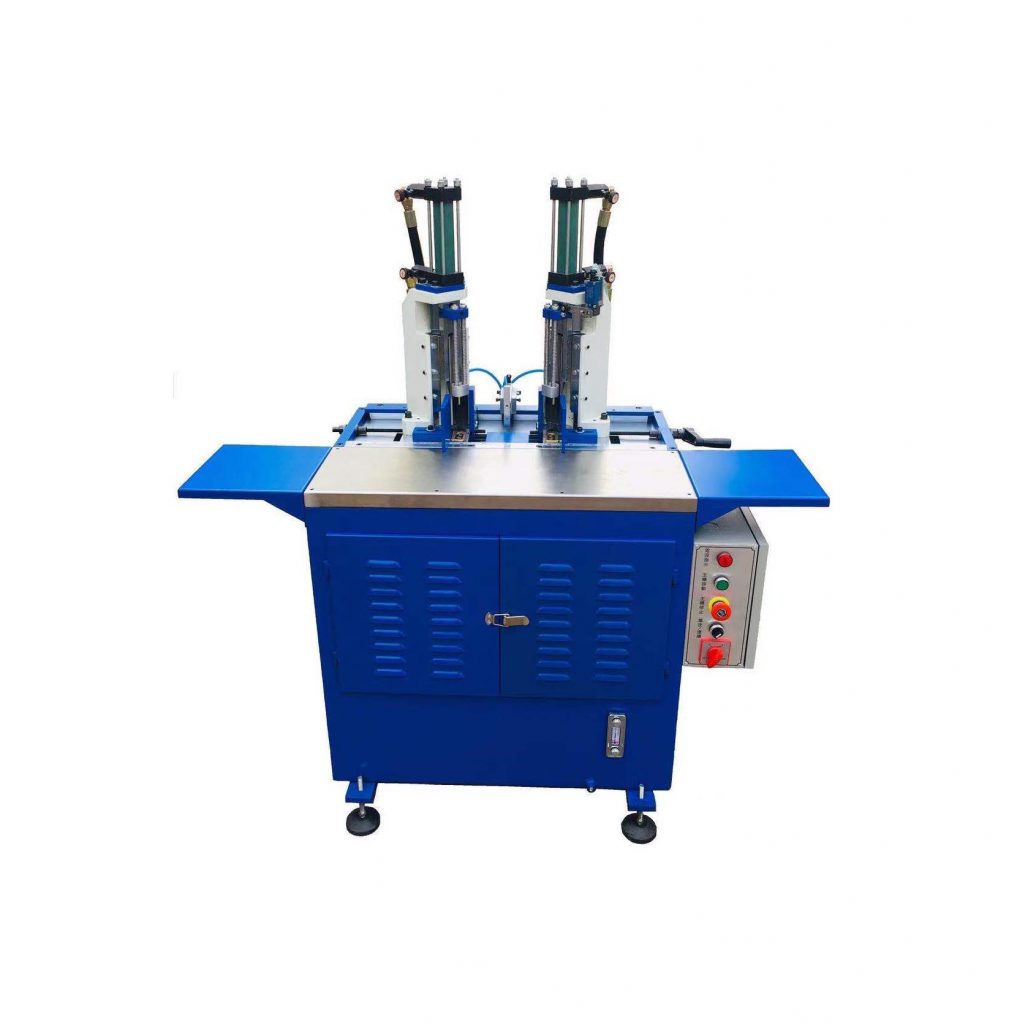

KY-100C Round Corner Cutter — Hydraulic Precision for High-Volume Bindery

What Is a Round Corner Cutter and Why Does It Matter in Commercial Print Finishing?

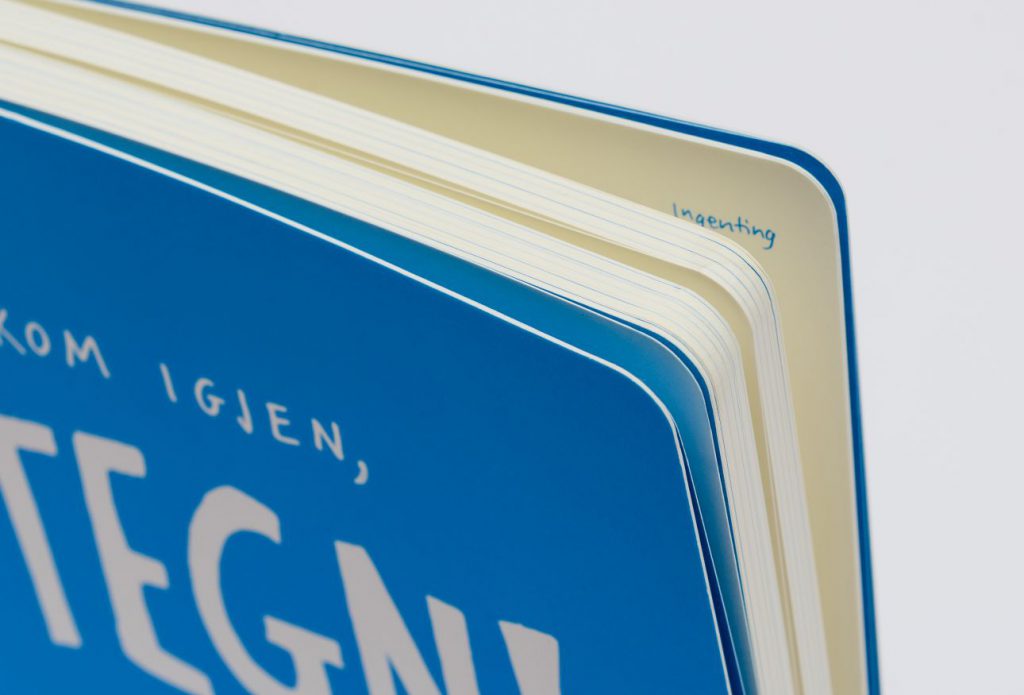

A round corner cutter, also known as a corner rounding machine or paper corner rounding machine, is a bindery finishing device that trims the 90-degree corners of paper, board, or laminated substrates into a smooth, consistent radius. The result is a safer, more premium product — from children’s board books and softcover novels to business card decks, loyalty cards, and branded promotional materials.

In commercial print and bindery environments, rounded corners serve two purposes: safety (eliminating sharp edges, especially critical for children’s educational products) and aesthetics (a hallmark of high-quality print finishing that distinguishes professional output from commodity print). The KY-100C hydraulic corner rounding machine addresses both requirements with industrial-grade precision.

“Rounded corners are no longer a premium option — they’re a baseline expectation in children’s publishing, premium stationery, and commercial card production. The question is not whether to round corners, but which machine delivers the cut quality and throughput your production line demands.” — Kylin Machines Technical Team

Hydraulic vs. Pneumatic Corner Cutting: The Engineering Case for the KY-100C

Most entry-level corner rounding machines on the market use pneumatic actuators — a cost-effective choice for low-volume work, but one that introduces a fundamental engineering limitation: pressure drop. As a pneumatic cylinder extends, pressure decreases, meaning the cutting force applied to the bottom of an 80 mm stack is measurably less than the force applied to the top.

The KY-100C resolves this with a sealed hydraulic circuit — a closed-loop system where hydraulic fluid is displaced through a sealed cylinder at constant pressure throughout the full stroke. The result is identical cutting force at 1 mm and 80 mm stack height, producing clean, burr-free rounded corners across the entire stack in a single cycle.

Key Performance Comparison

• Stack capacity: Hydraulic systems routinely achieve 80 mm; pneumatic alternatives are typically limited to 40–50 mm
• Cut consistency: Hydraulic force remains constant; pneumatic force drops by 15–30% at full extension
• Noise level: Hydraulic drives operate at significantly lower decibel levels — no compressor noise on the production floor
• Infrastructure: Hydraulic machines are self-contained; pneumatic machines require a compressor and dedicated air-line installation

Applications: Where the KY-100C Corner Rounding Machine Excels

The KY-100C is deployed across a wide range of print finishing applications, all sharing a common requirement for precision, burr-free corner rounding at production scale:

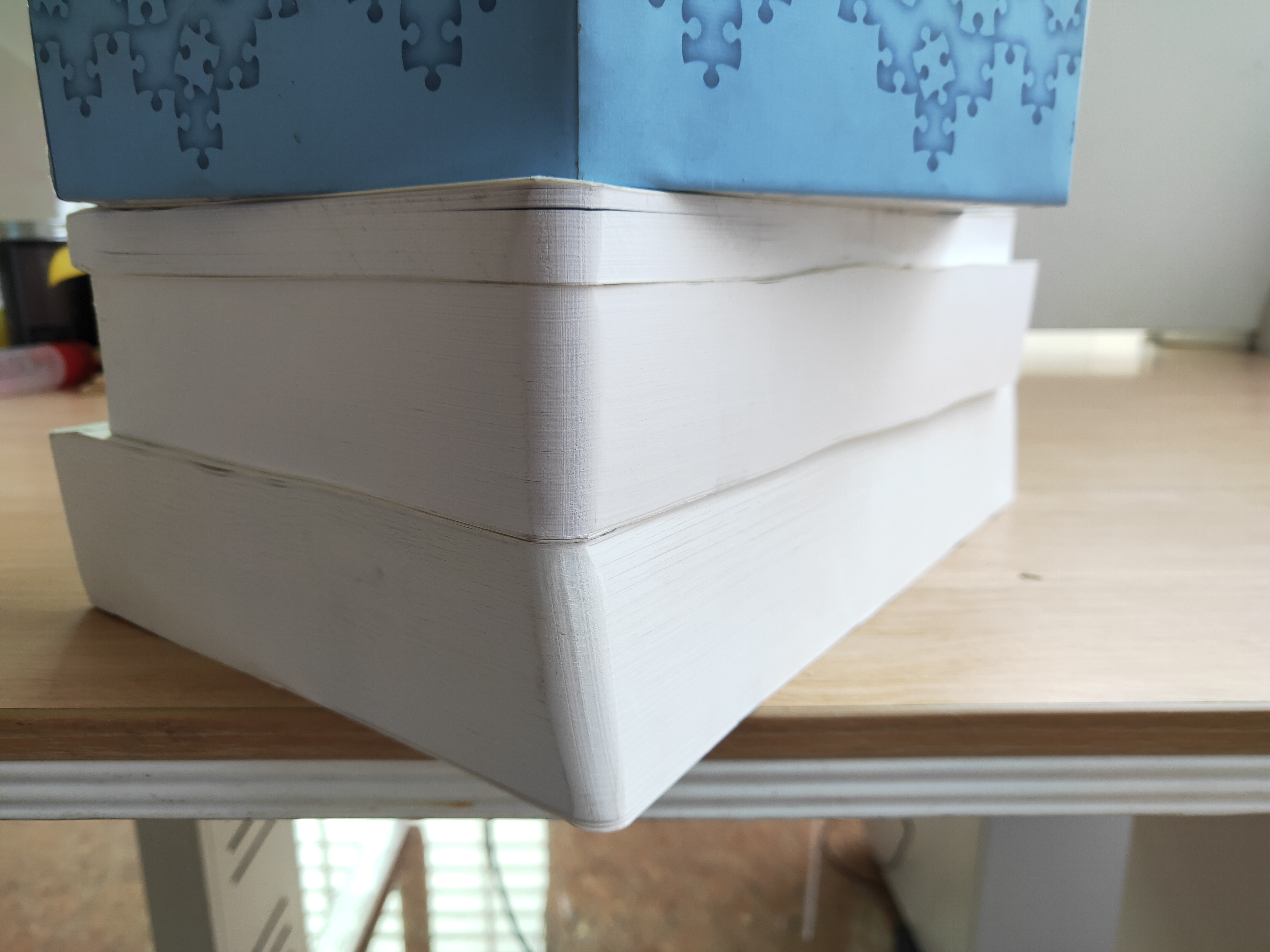

• Book binding: Softcover and hardcover book blocks, children’s board books, textbooks, art books

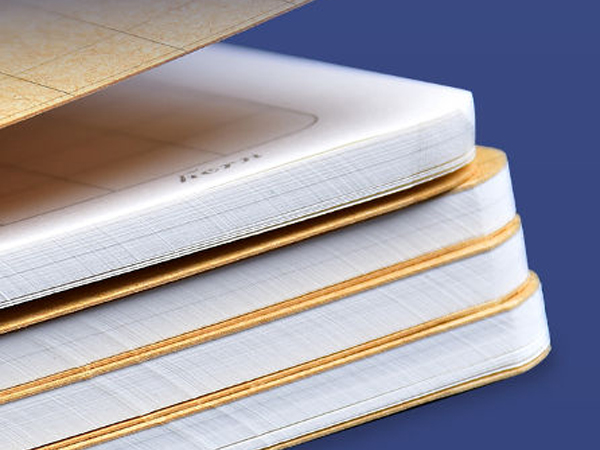

• Stationery & commercial print: Notebooks, diaries, planners, exercise books
• Card production: Business cards, loyalty cards, gift cards, ID cards, PVC and laminated card stock
• Promotional materials: Hang tags, calendar pads, leaflets, brochures, magazine inserts
• Packaging: Luxury folding cartons, insert cards, branded packaging components

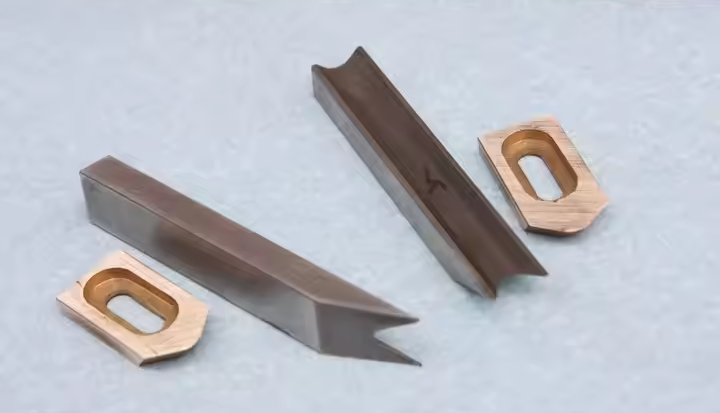

“The R3–R12 die system covers every standard corner radius used in publishing, stationery, and card production — and the tool-free exchange means a skilled operator can switch between radii faster than reconfiguring any competing system on the market.” — Production Manager, Commercial Bindery, Germany

Specifying the Right Corner Radius for Your Application

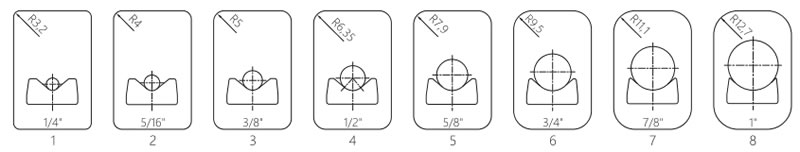

Corner radius selection is driven by substrate type, product category, and brand specification. The KY-100C’s R3–R12 range covers the full spectrum of commercial requirements:

• R3–R4: Subtle rounding for business cards, ID cards, and premium stationery — barely perceptible but eliminates sharp edges
• R5–R6: The most common radius for notebooks, softcover books, and magazine products; creates a clean, professional finish

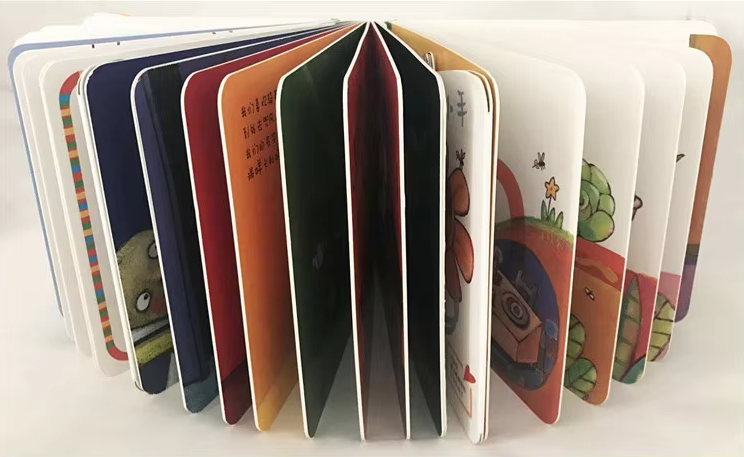

• R8: Standard for children’s board books and educational materials where safety is the primary concern
• R10–R12: Maximum rounding for playing cards, children’s flash cards, and applications where a highly rounded corner is a deliberate design feature

Installation, Commissioning, and Operator Training

The KY-100C arrives fully assembled on an export pallet in a reinforced wooden crate. Installation requires only a standard power connection (confirm voltage requirements at order). No compressed air supply or special tooling is required — a significant infrastructure advantage over pneumatic systems.

Operator training typically takes less than two hours for personnel experienced with print finishing equipment. The control system is straightforward, the die changeover is intuitive, and the hydraulic circuit is fully sealed — eliminating the fluid-level checks and filter maintenance required by open hydraulic systems.

B2B Procurement: Lead Times, Logistics & After-Sales

For procurement teams evaluating the KY-100C, the key commercial parameters are: 7–10 business day production lead time; 15–35 day ocean freight transit (port-to-port); reinforced wooden export crating; FOB, CIF, and DDP trade terms available; and a 12-month parts-and-labour warranty with lifetime technical support.

Kylin Machines maintains standard stock of all replacement dies (R3–R12) and consumable wear components, ensuring that an order placed after machine delivery can typically be fulfilled and dispatched within 3–5 business days — minimising production downtime in the event of die wear or damage.
