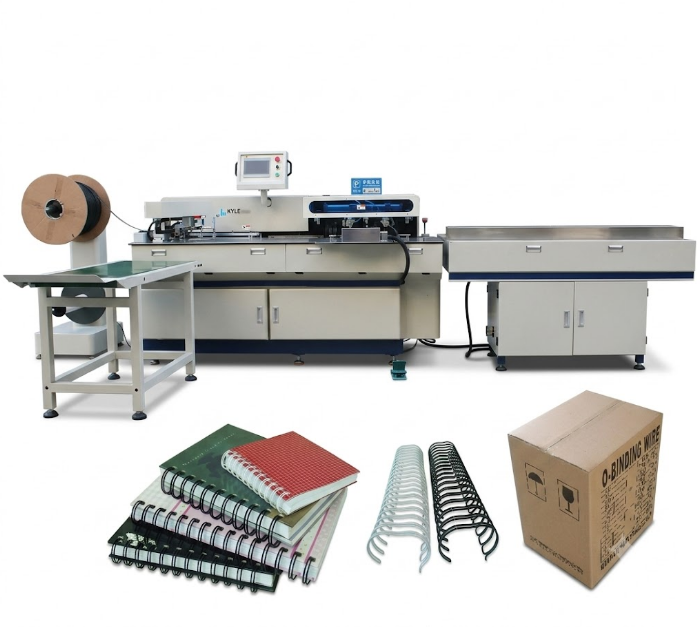

Full Automatic Desktop Calendar Twin Wire Binding Machine
Punch, feed, cut, form, insert hanger and close — one continuous line producing perfectly bound calendars, spiral notebooks and hard-covers at up to 2,000 cycles per hour.
Manual Binding is Killing Your Margin
See why print shops running semi-auto binders lose up to 40% of their calendar-season revenue to labor cost, waste and downtime.
Semi-Auto / Manual Legacy
- Only 300–500 books per hour, with 3+ operators required
- Wire waste of 6–10% from manual cutting and re-feeds
- Inconsistent closure — 4–7% reject rate on thick spines
- Hanger inserted by hand → RSI injuries and slowdowns
- Changeover between 2:1 and 3:1 pitch takes 45+ minutes
Kylin Full Automatic 2026 Series
- Up to 2,000 cycles per hour with a single operator
- Segment-cut wire feeding — waste under 1.2%
- Servo-driven closing mould, <0.5% reject rate
- Fully automatic hanger insertion built in
- Recipe-based pitch changeover in under 8 minutes
💰 Live ROI Calculator — See Your Payback Period
*Based on indicative unit price of USD 128,000. Contact us for exact quote.
Six Core Modules Built for 24/7 Uptime
Every subsystem uses top-tier industrial parts — CHNT, Delta, Omron, Airtac, Wecon — the same names trusted by Tier-1 Asian print factories.
Wecon Multilingual HMI
Full color touch screen with Chinese, English and any client language. Recipe memory for one-touch job changeover.

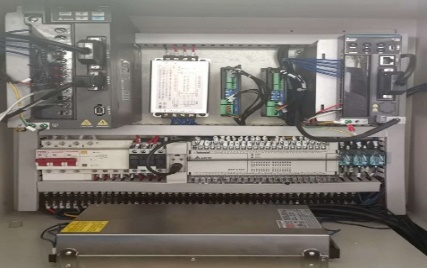

Delta · CHNT · Omron
All PLC, sensors and drives are industrial-grade brand components — worldwide spare-parts availability guaranteed.
Airtac Pneumatic Cylinders
High-cycle Airtac cylinders rated for 20+ million actuations, keeping downtime and maintenance intervals to a minimum.
5-Station Pusher Knife
Five pusher blades advance the book stack 2–3 mm at a time — smooth feeding of any spine thickness from 1 to 13 mm.

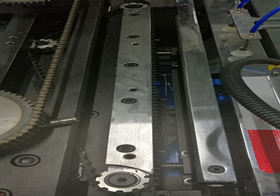

Precision Binding Mould
Servo-controlled closing mould delivers a perfectly round, tight double loop — zero gap, zero overlap.

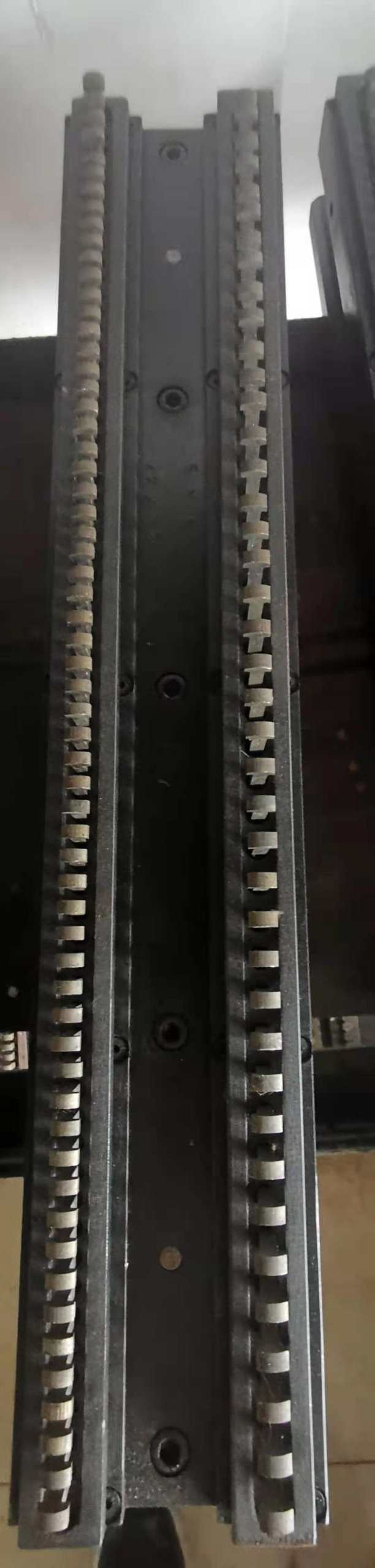

Dual-Size Punching Mould
Integrated 2:1 and 3:1 hole pattern in a single tool — switch pitch through the HMI without swapping dies.
How It Works — 4 Automated Stages
From loose sheets to shrink-ready calendars, the entire flow runs on a single continuous line.
Auto Feed & Punch
Book blocks are automatically pushed into the punching station — up to 6 mm per stroke, 5 strokes for a 13 mm spine.
Wire Cut & Form
Long spool wire is segment-cut and pre-formed to the exact length of the book — no manual pre-cut wires required.
Insert & Hang
Formed wire threads through the punched holes; the metal calendar hanger is inserted automatically inside the loop.
Close & Discharge
Servo mould closes the double loop to a perfect O; finished product is conveyed out ready for packaging.
Watch the Machine in Real Production
Filmed at our DongGuan facility — 1,800 cycles / hour on a 12 mm desktop calendar with auto hanger insertion.
Full Machine Data Sheet
Confirmed factory specifications. Custom paper widths and pitches available on request.
| Parameter | Value |
|---|---|
| Single Punch Thickness | 1 mm – 6 mm |
| Maximum Punch Thickness | 13 mm |
| Max Punches per Book | 5 strokes |
| Wire Pitch | 2 : 1 / 3 : 1 |
| Max Product Feed Belt | 420 – 420 mm |
| Twin-Loop Wire Feeding | Auto segment-cut, threading & closing |
| Wire Diameter Range | 1/4″ – 7/8″ (pitch 2:1, 3:1) |
| Max Paper Width | 510 – 800 mm |
| Min Paper Width | 100 – 140 mm |
| Working Speed | 800 – 2,000 cycles / hour |
| Air Compressor | 3 kW |
| Machine Dimensions (W×D×H) | 4,800 × 2,600 × 1,600 mm |
| Gross Weight | 1,500 kg |
| Net Weight | 1,250 kg |

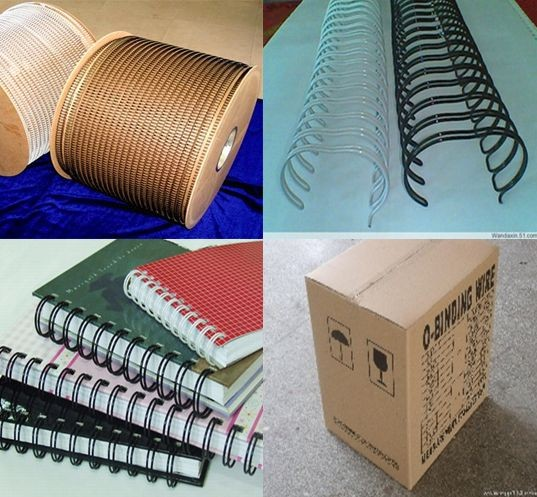

Input Wire Reels · Output Ready-to-Ship Calendars
Twin-Loop Wire Reels
The machine accepts standard nylon-coated twin loop wire on spools, both 2:1 and 3:1 pitch, 1/4″ through 7/8″.
Perfect Finished Calendars
Consistent round loops, tight closure, hanger centered — export-quality product straight off the discharge conveyor.
Everything Procurement Managers Ask
Straight answers to the six most common questions from OEM buyers, print factories and equipment resellers.
The machine runs at 800 to 2,000 cycles per hour depending on paper thickness, wire diameter and operator setup. For standard 12-sheet desktop calendars with 3:1 pitch we consistently measure 1,600–1,800 finished units per hour in customer factories.
The machine supports both 2:1 and 3:1 twin-loop wire pitches with diameters from 1/4″ to 7/8″ (6.4 mm – 22.2 mm), covering everything from thin notepads up to 13 mm thick hard-cover calendars.
Yes. An integrated automatic hanger-insertion station places the metal hanger inside the wire loop before closure, so the finished calendar exits the machine ready for packaging with no manual step.
The Wecon touch-screen HMI ships with Chinese and English by default. We provide free translation into Spanish, Portuguese, Russian, Arabic, French, German or any language you require prior to shipment.
Standard lead time is 35–45 working days after deposit. Machines carry a 12-month warranty on mechanical and electrical parts, lifetime remote technical support, and on-site commissioning by a factory engineer is available worldwide.
The machine is packed in a fumigated wooden case (approx. 5 × 2.7 × 1.8 m, 1,500 kg gross). Sea freight to major EU/US ports typically takes 25–35 days at USD 2,800–4,200 depending on port. We handle full CIF / DAP documentation.
Why Twin Wire-O Binding Is Winning the 2026 Calendar Season
Walk into any modern print factory in Guangdong, Bavaria or Ohio between August and December and you will find one machine humming louder than the offset presses themselves — the twin-loop wire binder. In 2026, calendar and spiral-notebook demand is projected to grow 7.4% year-over-year, and shops still relying on semi-automatic binders are simply unable to keep up. This deep-dive explains what has changed, and how a fully automatic desktop calendar binding line pays for itself before the New Year rush is over.
From Craft Process to Continuous Production
Twin loop wire (often called “wire-o” or “double-O”) used to be a craft-scale finishing option. Sheets were punched on one machine, wire was pre-cut on another, and an operator manually threaded and closed each spine. That workflow topped out at roughly 400 books per hour with three operators. Modern automatic lines — like the Kylin KM-CAL-TWB — collapse all of those steps into a single closed-loop process running at up to 2,000 cycles per hour with only one operator.
“Post-press automation is no longer optional for calendar printers. Between labor cost inflation and the compressed Q4 shipping window, semi-auto lines physically cannot deliver ROI anymore.” — Print Finishing Automation Report, 2026 edition
What Actually Changed in the 2026 Machines?
- Segment-cut wire feeding. Instead of pre-cut wires the machine now spools raw twin-loop wire, measures the exact book length, cuts and forms on the fly. Wire waste drops from 8% to under 1.2%.
- Recipe-based changeover. Job parameters (pitch, wire diameter, hanger presence, book thickness) are stored on the HMI. Operators recall a recipe and the machine reconfigures itself in minutes, not hours.
- Linear slide rails on critical motions. The historical failure point of wire-o binders — bushing wear on the closing mould — is eliminated with hardened linear guides rated for 100+ million cycles.
- Automatic hanger insertion. The single most repetitive-strain-injury-prone step is now handled inline, eliminating a station of workers.
Practical Buyer Checklist
Before signing a PO for any twin-wire binder in 2026, procurement teams should verify five things: (1) genuine industrial electronics — Delta, CHNT, Omron, Airtac — not white-label knock-offs; (2) HMI language coverage matching your factory floor; (3) documented uptime warranty and spare parts kit; (4) energy consumption per 1,000 books (target ≤ 2.8 kWh); and (5) a live factory acceptance test filmed with your own product samples before shipment.
Ask any prospective supplier for a video of your specific job size running on the actual machine you will receive. Generic demo videos are a red flag. — Kylin Machinery, Sales Engineering Team
Further Reading
Complete Your Post-Press Line
Ready to Bind 2,000 Calendars per Hour?
Get a personalized quotation with FOB / CIF / DAP pricing, video FAT, and delivery timeline within 12 working hours.
📩 Request a Quote — We Reply in 12 Hours
