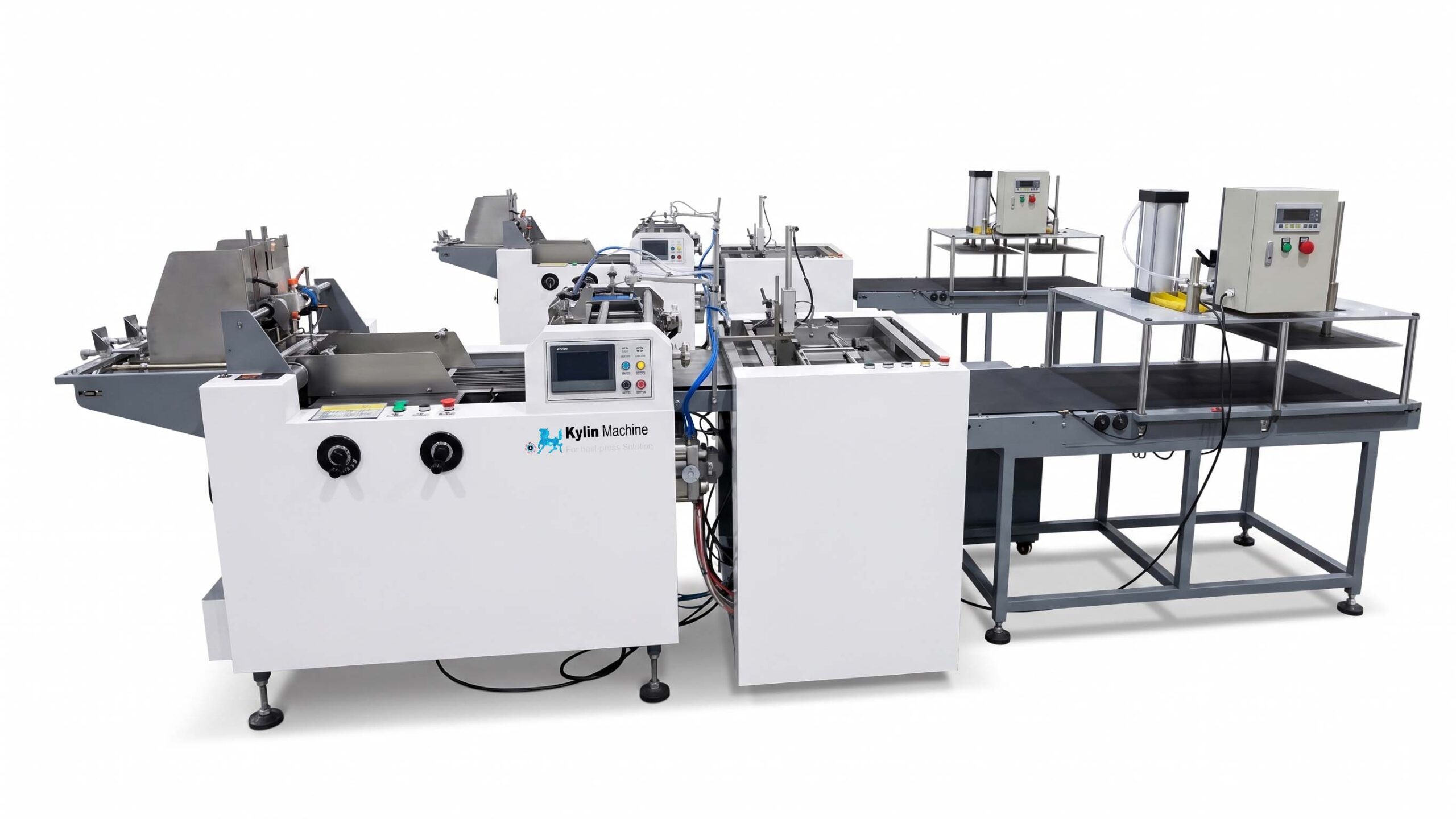

Auto Children’s Board Books Machine
KY-570B · KY-700B · KY-850B

Automatic Children’s Board Book Machines: A Buyer’s Guide for Publishing Equipment Procurement

The global children’s book market continues to show robust growth, driven by sustained demand in North American and European markets for high-quality hardcover board books for the 0–5 age segment. For print and packaging manufacturers serving major publishers, the ability to scale board book production efficiently — while maintaining the tight quality tolerances that premium titles demand — has become a genuine competitive differentiator.

This guide examines the core technology behind automatic children’s board book machines, the key procurement criteria that European and North American buyers should evaluate, and how the KY-570B, KY-700B, and KY-850B series addresses the principal production challenges in this segment.

“Automating the PVA glue application and board collation process reduced our per-unit labor cost by approximately 60% while simultaneously improving glue-line consistency to levels that manual application simply cannot match at volume.” — Production Manager, Mid-size Children’s Book Printer, Netherlands

Understanding the Board Book Production Process

From Printed Board to Finished Book

Children’s board book production begins after the printing and die-cutting stage. Pre-sorted, color-printed cardboard sheets — often featuring die-cut windows or shaped elements — must be coated with PVA (polyvinyl acetate) adhesive and pressed together in the correct page sequence. In a manual or semi-automated workflow, this process involves multiple operators, suffers from inconsistent glue application, and tops out at around 800–1,500 units per hour per line.

An automatic board book machine integrates four core operations into a single inline system: feeder registration, glue application, page collation, and pneumatic pressing. The result is a consistent, repeatable process capable of producing 4,000 bound board book blocks per hour with a single operator monitoring the line.

The PVC Cotton Roller Gluing Method

The defining technology in the KY series is its shaped PVC cotton roller gluing system. Unlike conventional glue bath rollers that apply a uniform film across the entire board surface, the KY system uses custom-cut PVC cotton pads adhered to the surface of the transfer drum. The geometry of each pad precisely defines the glue zone — whether that is full-surface coverage for standard board books or a complex spot-glue pattern for pop-up and interactive book pages.

As the drum rotates through the PVA glue reservoir, it picks up adhesive only on the pad surface areas, then transfers that adhesive precisely to the incoming board as the pad makes contact. One complete drum rotation applies one complete glue pattern to one board — synchronised with the feeder’s board-delivery rate. The system eliminates over-application at the board edges (a common defect in flood-coat systems) and virtually eliminates glue squeeze-out, which can contaminate pneumatic press tooling.

Key Procurement Criteria for B2B Buyers

1. Maximum Format Compatibility

Board book format diversity is increasing. While classic “chunky” baby board books fall in the 150–200 mm range, premium gift-edition and educational children’s books now regularly reach 400–700 mm in their largest dimension. Ensuring your machine can handle your full product format range — including anticipated future titles — is the primary model selection criterion.

2. Material Versatility: From 180 gsm to 12 mm Board

The KY series handles the complete material range encountered in children’s board book production: from standard 180–350 gsm laminated cover stock for layflat books, through 1–3 mm grey board for standard board books, up to 8–12 mm chunky board used in thick-pad baby books. The automatic air feeder’s separation system handles this range without mechanical adjustment, relying on air pressure calibration accessible via front-panel controls.

3. Glue System Configuration

Not all board books require the same adhesive strategy. Standard double-sided board pages require full-surface coverage. Pop-up and pull-tab mechanisms require spot-application to specific zones, leaving other areas glue-free to allow movement. Spiral and layflat books may require reinforced spine zone coverage. The KY system’s interchangeable PVC cotton pads address all of these configurations from a single machine platform.

4. Throughput vs. Operational Cost

At 4,000 pcs/hr and a power draw of 1.2–1.8 kW depending on model, the KY series represents highly competitive energy efficiency in its class. For a typical two-shift, 16-hour production day, a single KY line can process 64,000 book blocks — output that would require 4–6 manual stations to approximate, with significantly higher labor cost and quality variance.

“The energy footprint of automated board pasting equipment has become an increasingly important factor in European procurement decisions, particularly under evolving ESG reporting requirements for manufacturing operations.” — Industry Analysis, European Printing Equipment Review, 2025

Integration into Existing Print Finishing Lines

One practical advantage of the KY series is its compact machine footprint. The KY-570B occupies just 1700 × 1000 mm of floor space — comparable to a standard folding machine. This allows integration into existing print finishing workflows without major factory reconfiguration. The inline conveyor output can feed directly into existing curing presses, UV tunnels, or stacking stations.

For facilities adding board book capacity to an existing softcover or case-binding line, the KY series can be positioned as a dedicated board book cell, operated independently from the main binding line, and scheduled to run alongside other production without resource conflict.

Quality Control Integration

While the KY series includes a final operator inspection station at the output conveyor, the system is designed to integrate with inline vision systems for automated defect detection. Camera-based glue-zone verification and board registration check systems can be specified as options for facilities with zero-defect production requirements serving premium publishing clients.

Conclusion: Why Automatic Board Book Machines Deliver ROI

For printing and packaging manufacturers serving children’s publishers in Europe and North America, the investment case for an automatic board book machine rests on three compounding advantages: throughput (4,000 pcs/hr vs. 800–1,500 manual), quality consistency (precision glue application vs. operator variance), and operational flexibility (full-glue and spot-glue from a single platform with pad changeover). The KY-570B, KY-700B, and KY-850B deliver all three across the full range of formats demanded by today’s children’s publishing market.

To receive a technical proposal tailored to your production requirements, including model recommendation, custom PVC cotton pad configuration, and freight quotation to your facility, contact our technical sales team via the form below.
