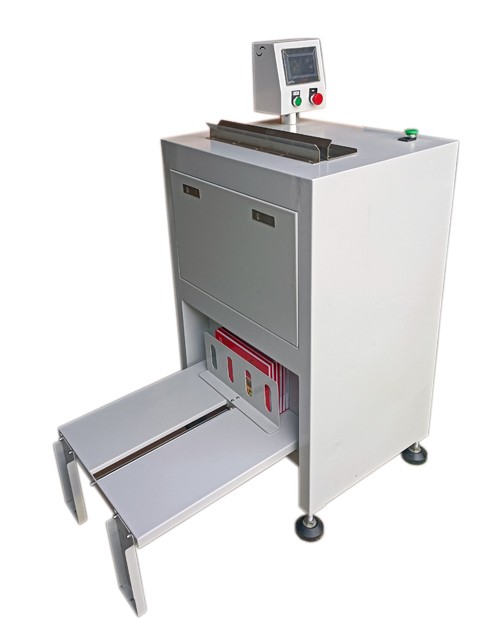

Ky-420 Hard Cover Book Pressing & Creasing Machine
PLC Touchscreen | Pneumatic Drive | Cold Flattening + Hot Creasing | Stable, Professional Finish
Cleaner edges, straighter spines, repeatable finishing quality
When casing-in shows uneven edges or spines bulge and crease lines are irregular, Ky-420 delivers repeatable pressure and temperature control for consistent flattening and creasing, reducing rework significantly.
Applications: Hardcover case flattening, hot creasing, cold shaping. Supports single-book operation and automatic batch stacking mode.
Product Demo Video
See Ky-420’s stable performance across flattening and creasing, including the intuitive interface and fast changeover.
Technical Specifications
| Parameter | Specification | Details |
|---|---|---|
| Model | Ky-420 | Professional hardcover finishing equipment |
| Power Supply | AC220V, 1.2KW | Energy-efficient operation |
| Max Pressing Size | 420 × 360mm | Fits common hardcover formats |
| Book Thickness Range | 4 – 65mm | Supports a wide range of sizes |
| Max Pressure | 0.8T | Consistent pressing force |
| Machine Dimensions | 1000 × 650 × 1300mm | Compact footprint |
| Weight | 230kg | Stable, low vibration |
Note: External compressed air is required (air supply provided by the user).
Key Advantages
🎯 Precise Control
PLC touchscreen with real-time parameter setting and monitoring. Repeatable pressure/temperature/time for stable quality.
⚡ Automated Operation
Single-book or automatic batch stacking mode. Pneumatic drive runs smoothly with reduced manual handling.
🌡️ Cold Flattening + Hot Creasing
Combined functions deliver straighter crease lines and cleaner edges for a professional finish.
🔧 Flexible Process
Flattening and creasing can be controlled independently. Quick recipe switching for different materials and thicknesses.
💪 Robust Build
0.8T pressing capacity and sturdy frame ensure consistency, reducing rework and scrap.
📈 Quality You Can Replicate
Key parameters can be saved and reused across lines and shifts to standardize finishing quality.
Applications

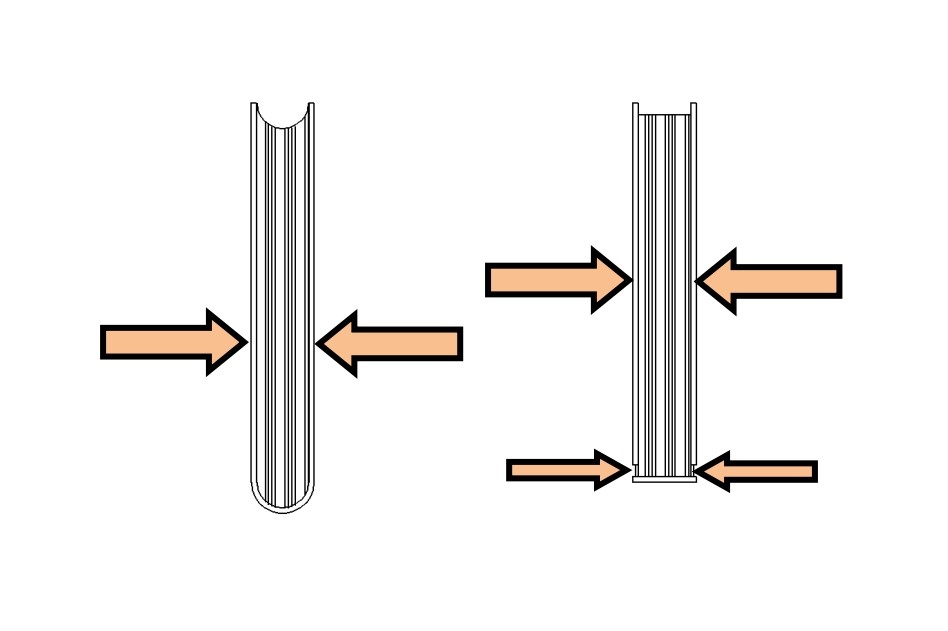

Ideal for hardcover case flattening and spine creasing, improving surface flatness and crease straightness.
- Hardcover case flattening and spine hot creasing
- Recipe-based process for easy SKU switching
- Stabilize downstream quality and reduce rework
- Works alongside casing-in, wrapping, and bubble pressing stations
Ready to standardize finishing and reduce rework?
Book a live demo and request a tailored quote. Expect measurable improvements within weeks.
Act now — replicate high-quality flattening and creasing on every line.
