Automatic Glue Spraying Machine for Rigid Boxes

Why Glue Application Decides Rigid Box Quality

Rigid boxes sell on perception: crisp edges, clean corners and a lid that closes with a soft, even resistance. All of that depends on adhesive being placed in the right amount, in the right place, every time. Yet in many workshops glue is still applied with brushes or simple roller tables, and the result changes with every operator and every shift.

An automatic glue spraying machine for rigid boxes replaces that variability with a programmed path. Instead of relying on hand skill, the glue gun follows coordinates stored in the controller, so the first box and the ten-thousandth box receive the same pattern.

Consistent glue placement is not a finishing detail. It is the foundation that every later step, from wrapping to forming, relies on.— Kylin Machinery engineering team

How Servo 5-Axis Glue Spraying Works

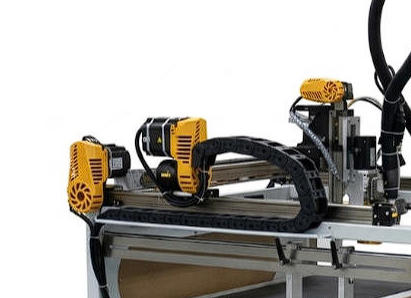

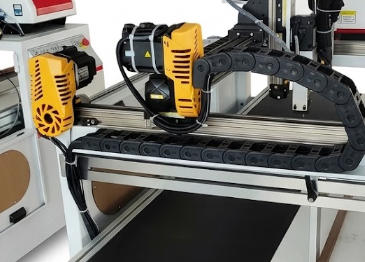

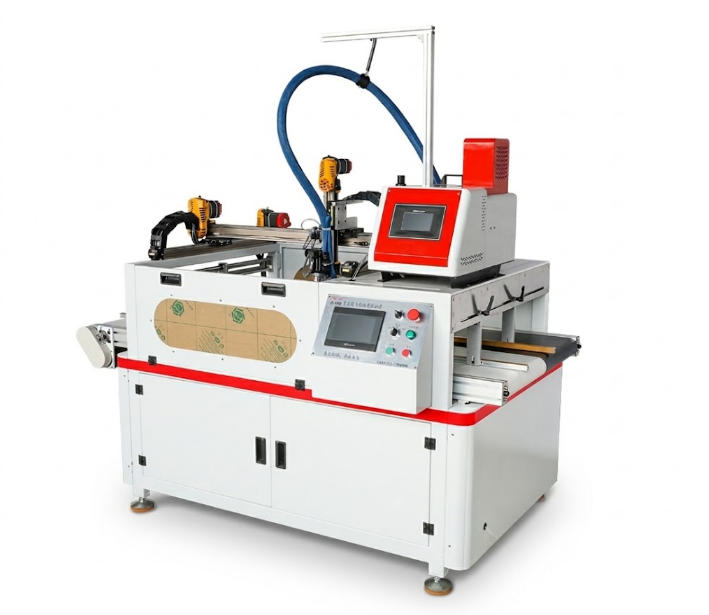

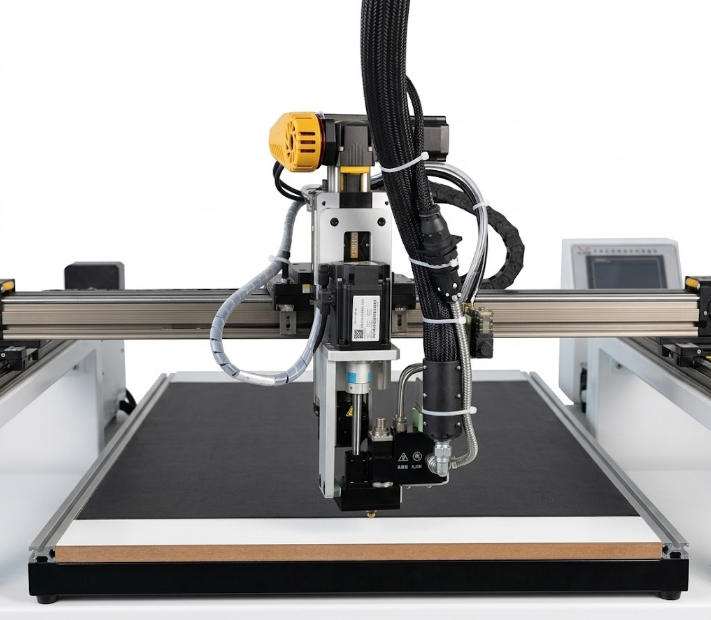

The KY-ZF-600A combines a servo module with five controlled axes. In practice this means the gun can travel along the X and Y directions, change height, and rotate for direct or side spraying. The spray height can be set from 1 mm to 150 mm, which covers shallow trays as well as deep lids and bases.

Beyond Straight Lines

Because paths are programmed rather than mechanically fixed, the same machine can glue rectangular lid-and-base boxes, book-style boxes, folding boxes, hexagon and octagon boxes, round boxes and irregular shapes. Decorative or functional patterns such as hearts, S-curves, circles, ellipses and five-point stars are also possible. This flexibility matters for gift packaging, cosmetics and premium electronics, where short runs and unusual shapes are common.

Hot Melt or Cold Glue?

The machine is compatible with both hot melt adhesive and cold glue, so the choice can follow your product rather than the equipment. Hot melt typically offers fast initial tack, which suits high-speed lines. Cold glue can be preferred when longer open time or specific board and wrapping-paper combinations require it. Test your own materials before you decide, and ask your supplier to run a sample. If you want a wider overview of the options, our glue machine buying guide for rigid boxes, book covers and paper bags compares the main machine types.

Fitting the Machine into Your Line

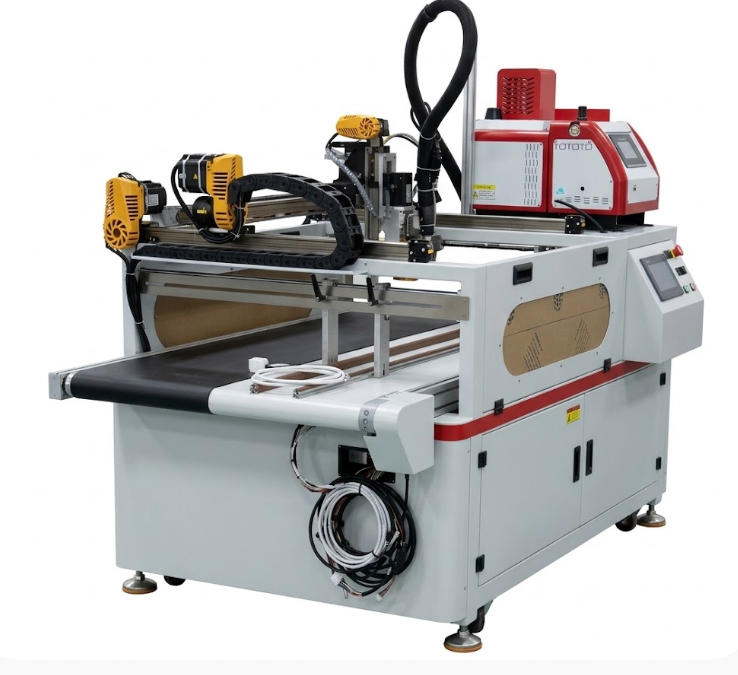

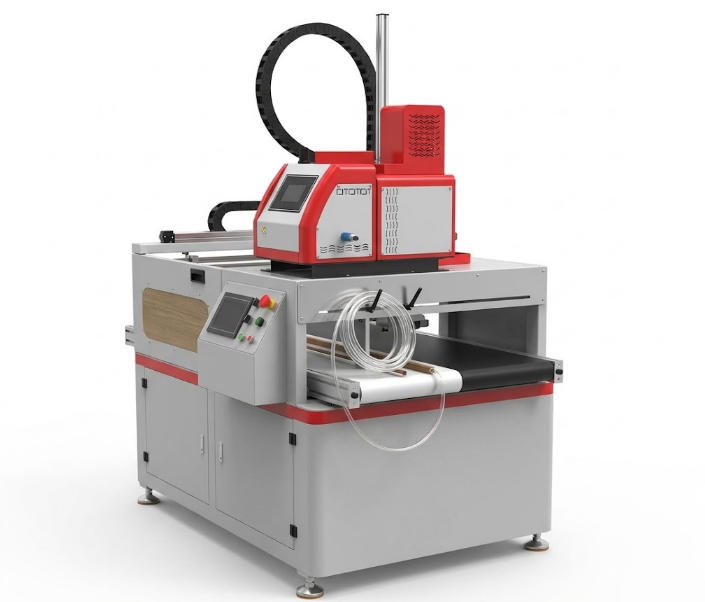

A glue sprayer rarely works alone. At the front, the feeding hopper can be connected to a feeder line or to an automatic lid-and-base machine. At the rear, the 1000 × 900 mm operating platform connects to a conveyor so glued boxes flow into assembly and forming. If you are planning the next stage, take a look at our auto rigid box forming robot machine. For smaller workshops, the KY-ZF-800 desktop glue painting machine is a compact alternative.

A Practical Pre-Purchase Checklist

• Box range: list your largest and smallest boxes, including depth, against the 1000 × 550 × 150 mm maximum and 50 × 50 × 1 mm minimum.
• Glue path: note whether you need inner walls, bottom perimeter, covers or custom shapes.
• Adhesive: confirm hot melt or cold glue and, for hot melt, whether you need constant-viscosity supply.
• Utilities: check 4.5 kW power and 0.4–0.6 MPa compressed air at 42 L/min.
• Line layout: allow for the 1950 × 1100 × 1450 mm footprint and a 650 kg machine weight.
• Presentation: consider how glue interacts with your finishing; see which printing techniques are available for rigid boxes.

If you are new to the terminology of post-press equipment, the book binding machines glossary explains 30 terms buyers commonly encounter. When you are ready, send your box drawings and target output through the quote form and our engineers will recommend a suitable configuration.
