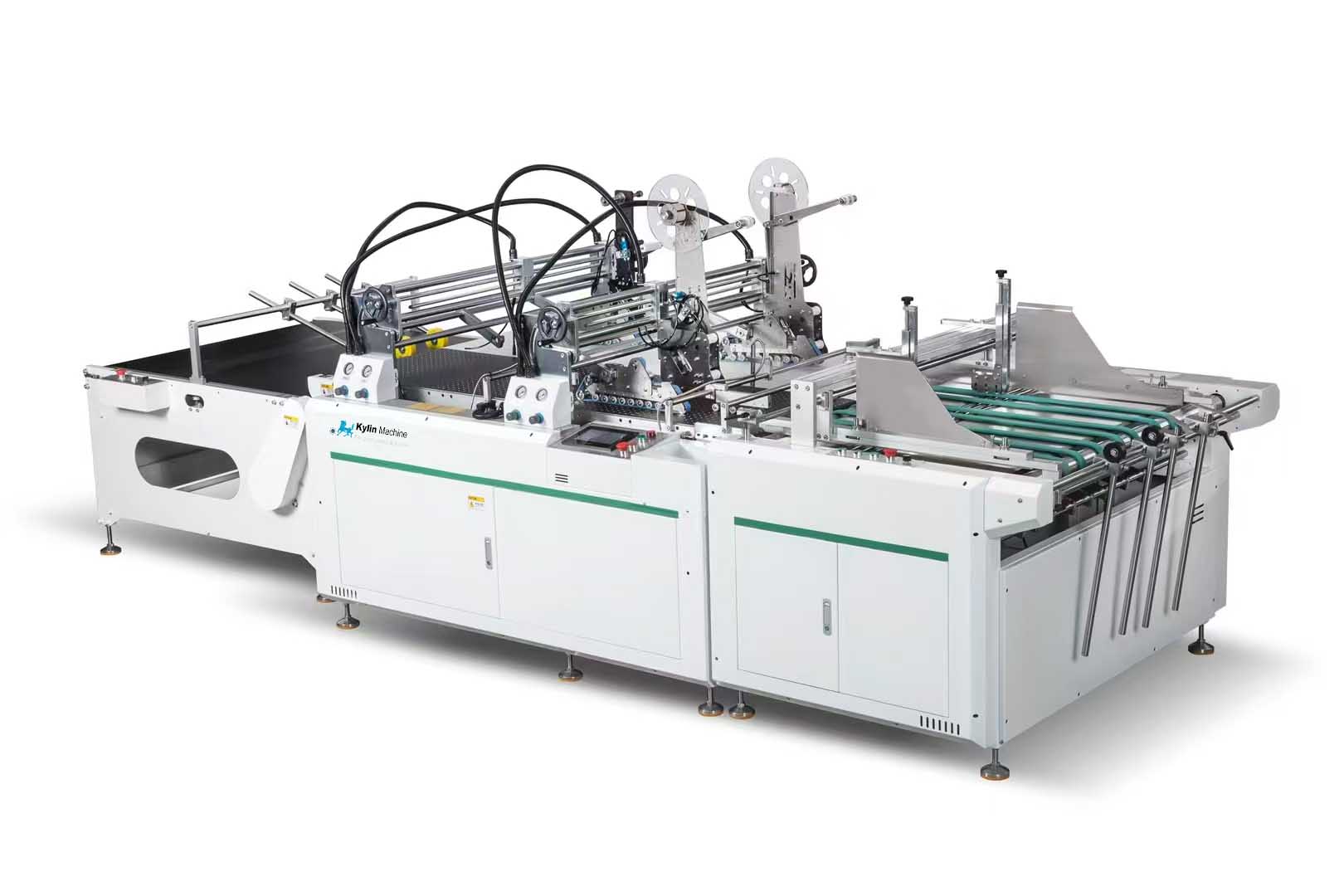

Fully Auto Double Tape Application Machine

Understanding Fully Automatic Double Tape Application in Modern Packaging Production

Double-sided tape application has evolved from a manual, labor-intensive operation into one of the most precisely automated steps in rigid and flexible packaging production. As consumer expectations for premium unboxing experiences rise — and as brands demand consistent, defect-free presentation in every unit — the performance gap between manual and fully automated tape application has become commercially significant.

For procurement engineers and production managers in the packaging, printing, and post-press sectors, selecting the right tape application machine is a capital investment decision with direct implications for line output, scrap rates, labor costs, and downstream defect metrics. The KY-1200L was engineered to address precisely these operational demands.

“Positioning accuracy of ±1mm is not a specification detail — it is the difference between a product that passes QA and one that doesn’t.” In luxury and premium rigid box production, tape placement tolerances as small as 1–2mm can affect closure performance, visual alignment, and brand perception.

The Role of PLC Control and Servo Positioning in High-Volume Tape Application

Conventional pneumatic or cam-driven tape applicators operate at fixed mechanical parameters, requiring manual adjustment for every format change. Modern industrial tape application machines like the KY-1200L replace these mechanical limits with closed-loop electronic control — combining a PLC (Programmable Logic Controller) with servo motor drives and optical fiber sensing to create a fully adaptive positioning system.

The practical outcome for production operators is measurable: job changeover times drop from 30–40 minutes of manual calibration to under 5 minutes of parameter recall from stored PLC recipes. For multi-SKU packaging lines running 8–15 different box formats per shift, this efficiency gain directly translates to increased billable machine hours and reduced overtime costs.

Friction Feeding Technology: Why Sheet Delivery Consistency Matters

The feeding module is often the most underappreciated subsystem in a tape application machine, yet it sets the boundary conditions for everything that follows. The KY-1200L uses a friction-drive feeding system with a high-efficiency paper-dispensing knife to separate individual sheets cleanly at high speed.

• Eliminates double-sheet feeding incidents that cause head jams and tape waste
• Maintains consistent sheet-to-sheet gap timing required for servo positioning accuracy
• Handles a broad material range from lightweight cartons to heavyweight leather-mounted boards
• Requires minimal operator monitoring during extended production runs

Tape Head Configuration: Matching Machine Capability to Product Requirements

The KY-1200L’s configurable pasting head system — supporting 2 to 4 heads with independent tape length control — is designed for packaging manufacturers who produce multiple product formats on the same machine. Each head applies tape independently, enabling complex multi-strip patterns that would require separate manual passes on conventional equipment.

Tape width flexibility from 6mm to 80mm means a single KY-1200L investment covers the full range from narrow closure strips on compact gift boxes to wide structural tape application on large aircraft-style retail packaging — without requiring secondary equipment or outsourced production.

Total Cost of Ownership: Evaluating the KY-1200L Investment

When evaluating industrial tape application machines for B2B procurement, total cost of ownership (TCO) analysis should account for more than the capital acquisition price. Key TCO factors for the KY-1200L include:

• Labor reduction: Replacing 3–4 manual operators with a single machine supervisor represents significant wage cost savings in most manufacturing markets
• Scrap reduction: ±1mm accuracy versus manual ±5mm tolerance reduces cosmetic reject rates and material waste on premium substrates
• Throughput gain: 110 m/min versus 30–40 m/min manual output increases capacity without additional floor space or infrastructure
• Maintenance: The friction feed mechanism and servo drives are designed for low-maintenance continuous operation; scheduled PM intervals are typically every 500–1,000 operating hours
• Warranty and support: 12-month warranty with parts and remote technical support minimizes unplanned downtime costs during the ownership lifecycle

Shipping, Installation, and Commissioning for International B2B Buyers

The KY-1200L is export-packaged in a reinforced wooden crate designed to withstand international sea freight conditions. Each unit ships with full CE documentation, a packing list, installation manual, and wiring diagrams. FOB pricing is available, with custom CIF or DDP terms negotiable for volume orders.

On-site installation support is available for qualifying markets, and remote video-assisted commissioning is standard for all international orders. Operator training can be conducted via video conference, covering PLC parameter setting, routine maintenance procedures, and troubleshooting for common operational scenarios.

Selecting a Double Tape Machine: Key Evaluation Criteria for Procurement Engineers

When issuing RFQs or comparing tape application machines for your packaging production line, the following technical and commercial criteria should be included in your evaluation matrix:

• Positioning accuracy specification: Demand documented tolerance data (±1mm or better for precision packaging applications)
• Feed system reliability: Request MTBF (Mean Time Between Failures) data for the feeding module and evidence of field performance in comparable production environments
• Tape width and head flexibility: Confirm that the machine can handle your current and planned future product range without additional investment
• Control system capability: PLC-based job recipe storage is a baseline requirement for multi-format production lines
• After-sales support infrastructure: Confirm availability of spare parts, remote support, and on-site service in your region
• Compliance documentation: CE marking, ISO quality certifications, and export documentation are standard requirements for import into EU, US, and Australian markets
