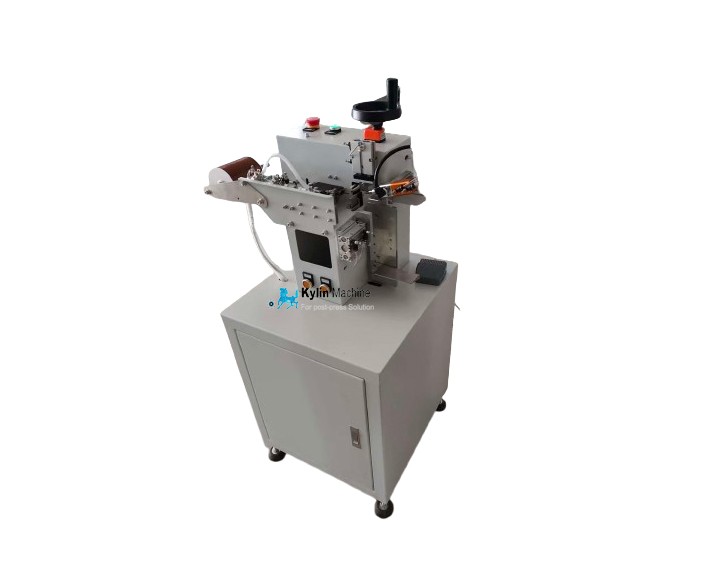

KY-320S Ribbon Bookmark Inserting Machine
Semi-automatic pneumatic ribbon bookmark inserting machine for hardcover books, notebooks, bibles and journals. PLC controlled with precision glue application and automatic ribbon cutting.
Why Upgrade to Automated Ribbon Insertion?
Traditional manual ribbon insertion creates bottlenecks in hardcover book production. See how automation transforms your workflow.
⚠️ Manual Ribbon Insertion Problems
- Slow throughput: Manual workers insert only 2-3 ribbons per minute with fatigue
- Inconsistent glue application: Uneven adhesive leads to ribbon detachment and customer complaints
- High labor costs: Requires 3-5 dedicated workers per production line
- Ribbon waste: Imprecise cutting wastes 15-20% of ribbon material
- Quality variations: Ribbon placement accuracy varies between operators and shifts
- Production bottleneck: Ribbon insertion becomes the slowest step in the binding line
✅ KY-320S Automated Solution
- 10 pcs/min consistent output: 3-5x faster than manual insertion with zero fatigue
- Precision glue system: Controlled adhesive application ensures permanent ribbon bonding
- 1-operator operation: One person runs the entire machine, reducing labor costs by 80%
- Zero ribbon waste: Automatic measuring and cutting eliminates material waste
- ±0.05mm accuracy: Every ribbon placed at the exact same position, every time
- Seamless integration: Compact 40kg footprint fits into any binding workflow
Key Industrial Features
Engineered for demanding bookbinding environments with precision components and intelligent control systems.
Pneumatic Precision Drive
Air-powered insertion system delivers consistent force for reliable ribbon bonding across all book thicknesses from 3mm to 40mm.
PLC Touch Panel Control
Full-color industrial touchscreen for recipe management, speed adjustment, ribbon length settings, and real-time diagnostics.
Auto Ribbon Cutting
Programmable ribbon length with automatic cutting ensures precise bookmark lengths and eliminates material waste.
Tool-Free Changeover
Switch between book sizes and ribbon types in under 5 minutes with digital presets. No specialized tools required.
Global Componentry
Built with Schneider, Omron, and SMC components for worldwide serviceability and long-term reliability.
Compact & Energy-Efficient
Only 40kg and 0.8KW power draw. Fits any workshop without special foundations or high-power electrical requirements.
Detailed Technical Specifications
Complete specifications for the KY-320S ribbon bookmark inserting machine.
| Model | KY-320S |
|---|---|
| Working Speed | ~10 pcs/min |
| Book Block Thickness | 3 – 40 mm |
| Book Block Width | 90 – 320 mm |
| Power Supply | AC220V, 0.8 KW |
| Machine Weight | 40 kg |
| Positioning Accuracy | ±0.05 mm |
| Control System | PLC Touch Panel |
| Drive System | Pneumatic (compressed air required) |
| Ribbon Width Supported | 3 – 15 mm |
| Ribbon Types | Satin, Grosgrain, Polyester |
| Operators Required | 1 person |
| Warranty | 36 months (full parts & labor) |
Video Demonstration
Watch the KY-320S in action — inserting ribbon bookmarks into hardcover book blocks with pneumatic precision.
How It Works
Four simple steps from book block to finished ribbon bookmark — fully automated after initial feed.
Load Book Block
Place the hardcover book block onto the feeding platform. The machine’s guides automatically align the spine.
Glue Application
Precision glue applicator deposits controlled adhesive onto the spine area where the ribbon will be bonded.
Ribbon Insertion
Pneumatic arm inserts the ribbon at the preset position with ±0.05mm accuracy and applies bonding pressure.
Cut & Output
Automatic cutter trims the ribbon to the programmed length. The finished book moves to the output stack.
Application Scenarios
The KY-320S serves diverse bookbinding and stationery manufacturing industries worldwide.
Hardcover Books
Premium hardcover book production requiring ribbon bookmarks for enhanced reader experience.
Notebooks & Journals
High-volume notebook manufacturing with single or colored ribbon bookmarks for brand differentiation.
Bibles & Prayer Books
Religious publishing with multi-ribbon requirements for scripture navigation and devotional reading.
Photo Albums
Premium photo album finishing with decorative satin ribbons for a luxury presentation.
Diaries & Planners
Annual planner and diary production with color-coded ribbon markers for months and sections.
Gift Editions
Limited edition and gift-quality book finishing where ribbon bookmarks add perceived value.
Production Method Comparison
See how the KY-320S compares to manual insertion and fully automatic alternatives.
| Feature | KY-320S (Semi-Auto) | Fully Automatic | Manual Insertion |
|---|---|---|---|
| Speed | 10 pcs/min | 30-50 pcs/min | 2-3 pcs/min |
| Operators Required | 1 person | 1 person | 3-5 persons |
| Placement Accuracy | ±0.05mm | ±0.1mm | ±2-5mm |
| Investment Cost | Low-Medium | High | Minimal |
| Book Size Range | 90-320mm | 100-320mm | Unlimited |
| Ribbon Waste | <1% | <1% | 15-20% |
| Setup Time | <5 minutes | 10-15 minutes | None |
| Floor Space | Compact (40kg) | Large (200kg+) | Workbench |
| Best For | Small-Medium runs | High-volume | Prototypes only |
What Our Customers Say
Trusted by bookbinding professionals and packaging manufacturers worldwide.
“The machine is working now fine, beautiful… thank you so much and maybe if we need other kind of box making machines I will contact you.”
“Your box corner taper has been running like a champion saving us time and money!! As we continue to grow we will definitely keep in touch.”
“Until now everything is perfect! We have purchased case maker Ky-450 last year, right now the machine is running very stable.”
Frequently Asked Questions
Everything you need to know about the KY-320S ribbon bookmark inserting machine.
The KY-320S handles hardcover book blocks with widths from 90mm to 320mm and thickness from 3mm to 40mm. This covers pocket notebooks, standard hardcover books, bibles, diaries, journals, and photo albums.
The KY-320S processes approximately 10 book blocks per minute with consistent ribbon placement accuracy. One operator can manage the entire workflow including feeding and stacking.
Yes, the machine supports various ribbon types including satin, grosgrain, and polyester ribbons in widths from 3mm to 15mm. Ribbon tension and feed rate are adjustable via the PLC touch panel.
The KY-320S operates on AC220V with a power consumption of only 0.8KW, making it highly energy-efficient. It also requires a standard compressed air supply for the pneumatic system.
Ribbon changeover takes less than 5 minutes. The tool-less adjustment system and digital presets allow operators to switch between different ribbon types and book sizes quickly without specialized tools.
Kylin provides a full 36-month factory warranty covering all mechanical and electrical components. After-sales support includes free remote troubleshooting via video call, spare parts shipping within 48 hours, and optional on-site engineer visits.
The standard KY-320S inserts one ribbon per cycle. For multi-ribbon requirements (e.g., bibles with 2-3 ribbons), books can be run through multiple passes, or contact us for a custom dual-ribbon configuration.
Most bookbinding operations achieve full ROI within 6-10 months through labor savings of up to 80% and elimination of ribbon waste from manual insertion errors. The machine replaces 3-5 manual workers.
Ready to Automate Your Ribbon Bookmark Process?
Our bookbinding engineers are ready to help you choose the right configuration for your production needs.
Related Machines
Complete your bookbinding production line with these complementary machines.
KY-475 Book Cover Making Machine
KY-410 Book Edge Gilding Machine
KY-2000 Automatic Ribbon Machine
Automatic Robotic Case Maker
The Complete Guide to Ribbon Bookmark Inserting Machines for Professional Bookbinding
Ribbon bookmarks have long been a hallmark of premium book production. From leather-bound bibles to executive journals, the silk or satin ribbon marker elevates a bound volume from functional to exceptional. Yet for decades, ribbon insertion remained one of the most labor-intensive steps in the bookbinding workflow — until purpose-built machines like the KY-320S transformed this bottleneck into a competitive advantage.
Why Ribbon Bookmarks Matter in Modern Publishing
In an era where digital alternatives compete for reader attention, physical book quality has become more important than ever. Publishers of hardcover editions, luxury journals, and religious texts recognize that a ribbon bookmark is not merely decorative — it is a functional feature that readers actively use and appreciate. Market research consistently shows that books with integrated ribbon markers command higher retail prices and stronger customer satisfaction scores. For bookbinding operations, the question is no longer whether to include ribbons, but how to insert them efficiently at scale without compromising on placement accuracy or bonding durability.
How the KY-320S Solves the Ribbon Insertion Challenge
The KY-320S ribbon bookmark inserting machine addresses the core challenges faced by small-to-medium bookbinding workshops. Unlike fully automatic lines that demand significant capital investment and floor space, the KY-320S delivers industrial-grade precision in a compact, affordable package weighing just 40 kg. Its pneumatic drive system provides consistent insertion force regardless of book thickness, handling everything from slim 3mm notebooks to substantial 40mm reference volumes. The PLC touch panel control system stores up to 99 job presets, enabling operators to switch between book formats in under five minutes — a critical advantage for workshops handling diverse product mixes.
Choosing the Right Ribbon Machine for Your Production Volume
For operations processing fewer than 5,000 books per day, the semi-automatic KY-320S offers the optimal balance of speed, cost, and flexibility. Its 10 pcs/min throughput translates to approximately 4,800 books per 8-hour shift with a single operator — sufficient for most independent publishers, commercial bookbinders, and stationery manufacturers. For higher volumes exceeding 10,000 units daily, Kylin also offers the fully automatic KY-2000 series with speeds up to 50 books per minute. Both machines use the same precision glue application and ribbon cutting technology, ensuring identical quality output regardless of the automation level you choose. Contact Kylin Machines today for a personalized recommendation based on your production requirements and growth plans.
