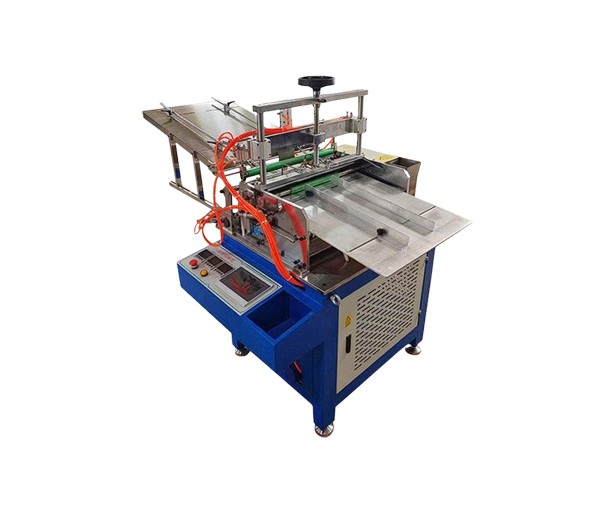

Automatic Paper Tube Labeling Machine for Fireworks & Salute Tubes
Photoelectric label detection, hot-melt gluing and precise labeling completed automatically in about one second. One operator, one machine, many tube sizes.
Manual Tube Labeling vs. Automatic Labeling
Hand labeling and water-based glue slow down fireworks and paper tube production and cause rework. This machine removes those bottlenecks.
Manual / Semi-Manual Labeling
- Slow output that needs several workers per shift
- Crooked, wrinkled or misaligned labels create rework
- Water-based glue lets labels peel in humid or hot storage
- Long changeover and trial-and-error with every tube size
- Labor cost rises every year and skilled staff are hard to keep
Kylin Automatic Paper Tube Labeler
- 10–40 tubes per minute with one operator
- ±0.5 mm positioning with photoelectric detection
- Hot-melt glue holds in water, humidity and high temperature
- No parts to swap; size changeover takes only minutes
- Timer start-up preheats the unit before your shift begins
Estimate Your Payback Period
Adjust the sliders to match your plant. Results update instantly.
Your estimated results
Built for Fast, Clean and Durable Tube Labeling
Designed for fireworks, salute and other paper tube producers who need consistent labels at industrial speed.
Fully Automatic Cycle
Load labels in batches. Photoelectric detection, label pick-up, glue application and labeling are completed by the machine within one second.
One Machine, Many Sizes
Handles tube ID 30–140 mm and lengths up to 640 mm. Change tube or label size with a few minutes of adjustment; no parts to replace.

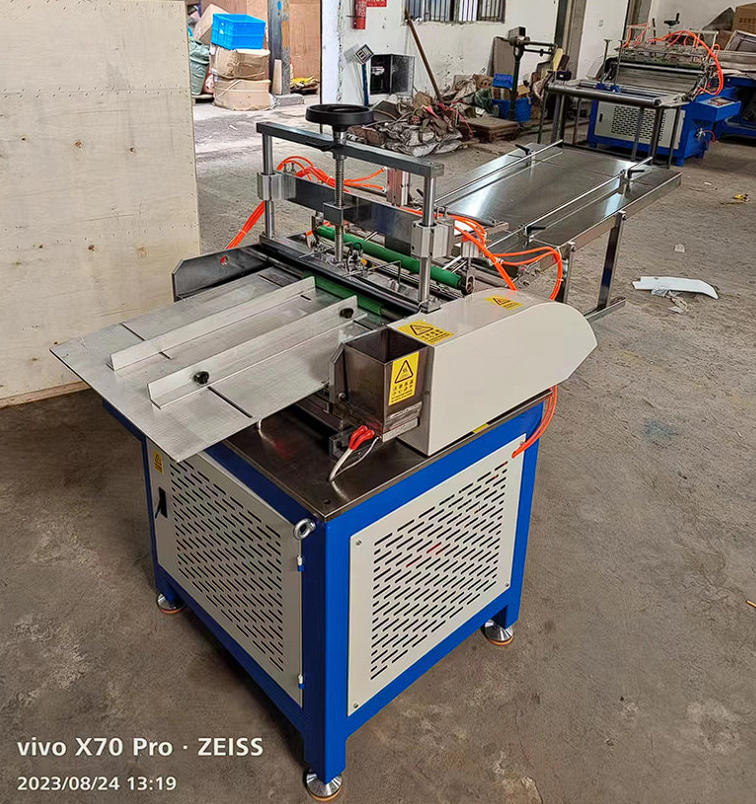

Hot-Melt Glue Bond
Strong adhesion that resists water and does not release in damp or high-temperature environments, so labels stay on during storage and transport.
±0.5 mm Precision
Consistent label placement on every tube, tuned for 100–157 gsm label paper, for a clean, professional finish.
Timer Auto Start-Up
Schedule the machine to switch on automatically so the glue unit is hot when the team arrives. No waiting for warm-up.
Industrial Controls
Xinje PLC and a Fanyi touchscreen HMI give clear parameter control. Automatic discharge and an electronic manual are included.
From Blank Tube to Labeled Product in 4 Steps
The operator loads labels and tubes. The machine performs the rest automatically.
Load Labels & Tubes
Stack labels in the magazine and place paper tubes on the feed. Set the tube and label size on the HMI.
Photoelectric Detection
Sensors confirm the tube position and label presence before every cycle for exact registration.
Hot-Melt Gluing
The label is picked up and receives an even layer of hot-melt adhesive for an instant, permanent bond.
Label & Auto Discharge
The label is applied and rolled on within ±0.5 mm, and the finished tube is discharged automatically.
From Raw Paper Tubes to Finished Labeled Products
Ideal for fireworks, salute tubes and other paper tube surfaces that need a durable printed label.
KY-TB-500B vs KY-TB-650B Specifications
Choose the model by the longest paper tube you need to label. Both share the same control platform and performance.
| Parameter | KY-TB-500B | KY-TB-650B |
|---|---|---|
| Tube inner diameter | 30–140 mm | 30–140 mm |
| Tube thickness | 1–5 mm | 1–5 mm |
| Tube length | 100–480 mm | 100–640 mm |
| Production speed | 10–40 pcs/min | 10–40 pcs/min |
| Labeling accuracy | ±0.5 mm | ±0.5 mm |
| Suitable label weight | 100–157 gsm | 100–157 gsm |
| Label feeding | Automatic | Automatic |
| Discharge | Automatic | Automatic |
| Working air pressure | 0.6 MPa | 0.6 MPa |
| Motor power / total power | 3 kW | 3 kW / 5 kW |
| HMI | Fanyi (繁易) | Fanyi (繁易) |
| PLC controller | Xinje (信捷) | Xinje (信捷) |
| Operators | 1 person | 1 person |
| Machine size (L×W×H) | 1600 × 1015 × 1105 mm | 1600 × 1015 × 1200 mm |
| Machine weight | 430 kg | 430 kg |
| Wooden crate size | 1.0 × 1.15 × 1.6 m | 1.1 × 1.205 × 1.6 m |
| Included | Electronic operation manual | Electronic operation manual |
Specifications may be updated for continuous improvement. Contact us to confirm configuration for your tube and label.
See the Paper Tube Labeler in Action
Watch automatic label pick-up, hot-melt gluing and labeling on paper tubes.
Rated 4.9 / 5 by Packaging & Fireworks Manufacturers
Cut our labeling crew from four people to one
We label 120 mm salute tubes all day. The hot-melt labels stay put in humid warehouses and one operator now keeps up with what four people did by hand.
Michael R., Production ManagerQuick size changeover
Switching between tube diameters takes a few minutes of adjustment and no spare parts. Label placement stays within half a millimetre.
Andrea S., Operations LeadSolid build and clear manual
Solid frame, easy HMI, and the electronic manual covered everything we needed for commissioning. Support answered quickly.
David K., Plant EngineerPaper Tube Labeling Machine – Buyer Questions
Answers to the questions we hear most from procurement and production teams.
What tube sizes can the paper tube labeling machine handle?
Both models accept paper tubes with an inner diameter of 30–140 mm and a wall thickness of 1–5 mm. The KY-TB-500B handles tube lengths of 100–480 mm and the KY-TB-650B handles 100–640 mm.
How long does it take to change over to a different tube or label size?
No parts need to be replaced. The operator only adjusts the guides and label magazine, which normally takes a few minutes before production can restart.
Why does the machine use hot-melt glue instead of water-based glue?
Hot-melt glue bonds immediately, so labels are flat and secure in under a second. The bond does not release when exposed to water, humidity or high temperature, which matters for fireworks tubes stored and shipped in harsh conditions.
What is the production speed and labeling accuracy?
The machine labels 10–40 tubes per minute depending on tube size and label length, with a positioning accuracy of ±0.5 mm. Label detection is photoelectric, and label pick-up, gluing and application are completed automatically.
What are the delivery time, warranty and return terms?
Standard handling time is 7–10 days after order confirmation, followed by 15–35 days of international transit depending on destination. Machines come with an electronic operation manual and a 30-day return window under our standard policy. Contact our team for the full terms.
What utilities does the machine require?
The machine needs a 0.6 MPa compressed air supply and a 3 kW electrical supply (KY-TB-650B: 3 kW motor power, 5 kW total power). One operator is enough to run it.
How to Choose an Automatic Paper Tube Labeling Machine
Labels are the last thing a customer sees and the first thing that fails when a tube meets moisture or heat. For fireworks makers and paper tube converters, a reliable labeling process protects brand image, reduces returns and frees skilled workers for higher-value tasks. This guide explains what to look for when buying a paper tube labeler.
A label that is half a millimetre out of position may look minor on one tube. Across 10,000 tubes it becomes a visible quality problem. — Kylin Machinery application engineering team
1. Match the machine to your tube range
Start with your real tube dimensions: inner diameter, wall thickness and length. The KY-TB-500B covers lengths from 100 to 480 mm and the KY-TB-650B extends to 640 mm, both for tubes of 30–140 mm ID. If you run several tube formats, confirm that changeover needs only adjustment and not replacement parts. Every extra part adds downtime and storage.
2. Understand the glue system
Water-based glue can be economical, but tubes shipped in humid containers or stored in hot warehouses often show lifting corners. Hot-melt adhesive sets almost instantly and resists water and temperature swings. That is why it is preferred for fireworks, salute tubes and other products with demanding storage conditions.
- Instant bond: labels can be handled straight after application.
- Moisture resistance: no release in wet or damp conditions.
- Scheduled warm-up: a timer start function removes heating delays at shift start.
3. Check speed against real demand
A speed of 10–40 pieces per minute gives a practical range for different tube lengths and label sizes. Compare this with your daily volume and shift pattern; our ROI calculator above helps you test payback with your own labor and rework figures.
4. Prioritise controls and support
Look for a recognised PLC and a clear touchscreen. This machine uses a Xinje PLC and a Fanyi HMI, which keeps spare parts and programming familiar for most maintenance teams. An electronic manual is supplied, and our engineers support commissioning remotely.
Where labeling fits in a wider production line
Paper tube labeling is one stage in a larger packaging process. If you are planning or expanding a rigid or round box plant, these guides from our team cover the surrounding steps:
- How to make a paper round box with machine
- All machines and equipment you need for paper round box production
- How to make a round box from chipboard
Automation pays back fastest where labor is the largest hidden cost in your tube finishing process. — Kylin Machinery
Ready to evaluate? Send us your tube dimensions and label sample, and we will recommend the right model and configuration. Request a quote.
Complete Your Packaging Production Line
Explore other Kylin machines commonly bought together with paper tube labelers.
Request a Quote for Your Tube Labeling Line
Tell us your tube size, label type and daily output. Our engineers will reply with a recommended model and detailed quotation.
- Model recommendation for your tube range
- Sample labeling test available on request
- Worldwide shipping and remote commissioning support
Automate your paper tube labeling today
Talk to an engineer about KY-TB-500B and KY-TB-650B.
