All Machines & Equipment You Need for Paper Round Box Production
All Machines & Equipment You Need for Paper Round Box Production
A comprehensive guide covering every piece of machinery required to manufacture paper round boxes (paper tube boxes, cylinder containers) — from raw material preparation to finished packaging.
Overview: What Are Paper Round Boxes?
Paper round boxes (also known as paper tube boxes, paper cylinder containers, or composite cans) are cylindrical packaging solutions made primarily from paperboard, kraft paper, or cardboard. They are widely used in industries such as:
- ✓ Food packaging (tea, coffee, protein powder, snacks)
- ✓ Cosmetics & beauty products
- ✓ Gift boxes & luxury packaging
- ✓ Industrial tube packaging
- ✓ Wine & spirit tube packaging
Manufacturing these boxes requires a series of specialized machines. Below, we cover every machine you need for a complete paper round box production line.

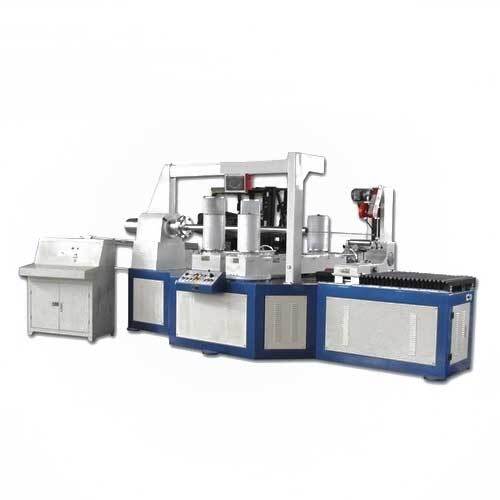

Paper Tube Winding Machine (Spiral / Parallel)
The paper tube winding machine is the core equipment in any paper round box production line. It winds multiple layers of paper strips around a mandrel to form a sturdy cylindrical tube body. There are two main types:
🌀 Spiral Winding Machine
Winds paper strips at an angle around the mandrel, creating a spiral-wound tube. Most common for composite cans and round boxes. Higher production speed.
📐 Parallel (Convolute) Winding Machine
Wraps paper sheets parallel to the mandrel axis. Better for short-run, thick-walled tubes and high-end cosmetic packaging.
Visit PaperTubeMaker.com — Paper Tube Winding Machine for detailed specifications and models.
Key Specifications:
- • Tube Diameter: 10mm – 300mm+
- • Layers: 2 – 30 layers
- • Speed: 5 – 60 meters/min
- • Paper Width: Customizable
🎬 Watch: Spiral Paper Tube Winding Machine in Action
Paper Tube Cutting Machine
After the tube is wound, it needs to be cut to precise lengths. The paper tube cutting machine (also called a tube cutter or recutter) slices long paper tubes into the exact dimensions needed for the round box body, lid, or base collar.Types Available:
- ▸ Auto-fly cutting: Cuts tubes on-the-fly without stopping the winding process (inline)
- ▸ Offline cutting: Separate machine for precision re-cutting of pre-wound tubes
- ▸ Multi-blade cutting: Cuts multiple tubes simultaneously for high-volume production
Learn more at PaperTubeMaker.com — Paper Tube Cutting Machine.
🎬 Watch: Paper Tube Cutting Machine Demo

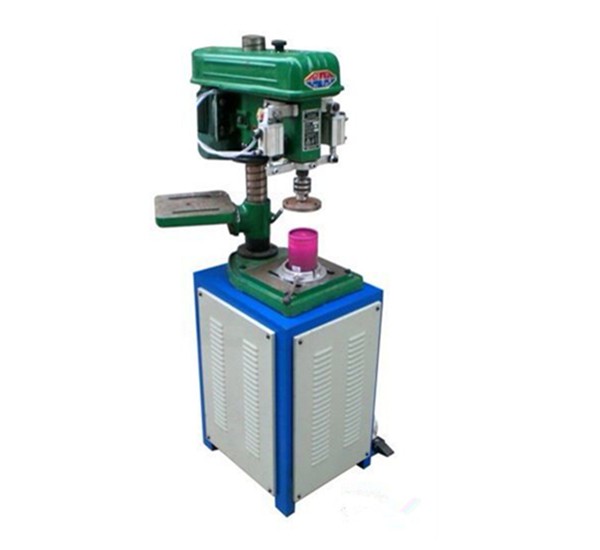

Paper Tube Curling Machine
The paper tube curling machine curls (flanges or beads) the edge of the paper tube body, creating a smooth rolled rim. This curled edge serves two important purposes:
- Seaming: Provides the edge profile needed for attaching metal or plastic end caps via a seaming process
- Aesthetics & Safety: Creates a smooth, finished edge that looks professional and prevents paper cuts
💡 Tip: Curling is essential for composite cans (like those used for Pringles-style packaging) where a metal bottom is seamed onto the tube.
See models at PaperTubeMaker.com — Paper Tube Curling Machine.
Paper Tube Grooving / Necking Machine
The grooving machine (also called a necking machine or beading machine) creates a groove or indentation near the end of the paper tube. This groove acts as a positioning ledge for the metal or plastic bottom/lid to sit in before seaming.Key Functions:
- ▸ Creates internal groove for bottom cap positioning
- ▸ Reduces tube end diameter (necking) for snug lid fitting
- ▸ Ensures airtight seal when combined with seaming
More info: PaperTubeMaker.com — Grooving Machine
Paper Can Seaming Machine
The paper can seaming machine (or composite can seamer) is responsible for crimping and sealing the metal or plastic end caps onto the curled paper tube body. This is the same principle used in food can manufacturing but adapted for paper composite cans.
Seaming Process:
- Metal/plastic end placed on curled tube edge
- First operation roll hooks the end over the curl
- Second operation roll tightens and compresses the seam
- Result: A hermetic, airtight seal
View models: PaperTubeMaker.com — Paper Can Seaming Machine
🎬 Watch: Paper Can Seaming Machine Working
Paper Tube Labeling / Wrapping Machine
The labeling machine applies a printed paper or film label around the exterior of the paper tube. This gives the round box its branding, product information, and decorative appearance. Some machines can also wrap the tube with printed art paper during the winding process (inline labeling).Types of Labeling:
- ▸ Offline label wrapping: Applies pre-printed labels to finished tubes
- ▸ Inline labeling: Applies outer label layer during tube winding
- ▸ Shrink sleeve labeling: Heat-shrink film for 360° graphics
Hot Stamping / Foil Stamping Machine
For premium and luxury paper round boxes, hot stamping machines apply metallic foil (gold, silver, holographic, etc.) logos, patterns, or text onto the paper tube surface. This adds a high-end, elegant finish that is especially popular for:
- ✨ Cosmetic packaging tubes
- ✨ Wine & spirits tube packaging
- ✨ Gift boxes and luxury retail
- ✨ High-end tea and coffee canisters
Note: Some manufacturers also use UV spot printing or embossing/debossing machines alongside hot stamping for multi-sensory packaging effects.
Die Cutting Machine
Die cutting machines are used to cut circular discs from cardboard or paperboard for the lids and bottom pieces of paper round boxes. They can also cut custom shapes for inserts, inner trays, and decorative elements.Common Uses in Round Box Making:
- ▸ Cutting circular paper/cardboard lids
- ▸ Cutting bottom disc inserts
- ▸ Creating inner fitment/cushion shapes
- ▸ Cutting EVA foam or sponge inserts
Gluing Machine / Glue Applicator
Gluing machines apply adhesive to paper strips before winding, to labels before wrapping, or to lids/bottoms during assembly. Different types of glue systems are used:
PVA (White Glue) System
Most common for paper-to-paper bonding in tube winding. Water-based, food-safe options available.
Hot Melt Glue System
Fast-setting adhesive for high-speed production. Used for label attachment and lid assembly.
Spray Glue System
Used for covering tube surfaces with fabric, leather, or specialty papers.
Paper Slitting / Rewinding Machine
Before paper can be fed into the tube winding machine, large master rolls of paper need to be slit into narrow strips of the correct width. The paper slitting machine (or slitter rewinder) handles this critical raw material preparation step.Specifications to Consider:
- ▸ Maximum roll width capacity
- ▸ Minimum slit width (typically 25mm+)
- ▸ Number of slitting knives
- ▸ Slitting speed and precision
Bottom & Lid Assembly Machine
For paper-to-paper style round boxes (where both lids and bottoms are made of cardboard rather than metal), specialized bottom and lid assembly machines are used. These machines:
- ▸ Automatically insert and glue cardboard bottom discs into tube bodies
- ▸ Form and attach telescope-style (slip-on) lids
- ▸ Create shouldered or stepped lids for premium boxes
- ▸ Handle edge folding/tucking for clean bottom finish
💡 Note: Some factories perform this step manually for small-batch, high-end products. Automation is recommended for orders above 5,000 pcs/day.
📦
Bottom & Lid Assembly Machine
Automatic paper disc insertion and lid forming
Shrink Wrapping & Final Packaging Equipment
📮
Shrink Wrap & Packaging Machine
Final packaging for finished round boxes
The final step in the production line is packaging the finished paper round boxes for shipping. Equipment includes:
- ▸ Shrink wrapping machine: Wraps individual or grouped boxes in clear shrink film for protection and tamper evidence
- ▸ Cellophane wrapping machine: For food-grade transparent wrapping
- ▸ Counting & stacking machine: Automatic counting and stacking for bulk packaging
- ▸ Carton sealing machine: Seals master cartons for shipping
Complete Machine Comparison Table
Below is a comprehensive comparison of all major equipment needed for paper round box production, including estimated price ranges, capacity, and necessity level.
| # | Machine Name | Function | Est. Price (USD) | Capacity | Necessity |
|---|---|---|---|---|---|
| 1 | Paper Tube Winding Machine | Forms cylindrical tube body | $8,000 – $50,000 | 5–60 m/min | Essential |
| 2 | Paper Tube Cutting Machine | Cuts tubes to precise lengths | $3,000 – $20,000 | 20–200 cuts/min | Essential |
| 3 | Paper Tube Curling Machine | Curls/flanges tube edges | $2,000 – $15,000 | 15–80 pcs/min | Essential |
| 4 | Grooving/Necking Machine | Creates groove for end caps | $2,500 – $12,000 | 20–60 pcs/min | Important |
| 5 | Paper Can Seaming Machine | Seals metal/plastic end caps | $5,000 – $30,000 | 10–50 pcs/min | Important |
| 6 | Labeling/Wrapping Machine | Applies printed labels | $3,000 – $18,000 | 10–40 pcs/min | Important |
| 7 | Hot Stamping Machine | Foil decoration & branding | $1,500 – $10,000 | 5–30 pcs/min | Optional |
| 8 | Die Cutting Machine | Cuts circular lids & bottoms | $2,000 – $25,000 | 30–120 pcs/min | Essential |
| 9 | Gluing Machine | Applies adhesive | $1,000 – $8,000 | Continuous | Essential |
| 10 | Paper Slitting Machine | Slits paper rolls into strips | $3,000 – $15,000 | 50–200 m/min | Essential |
| 11 | Lid/Bottom Assembly Machine | Assembles paper lids & bottoms | $5,000 – $25,000 | 8–40 pcs/min | Important |
| 12 | Shrink Wrap / Packaging Machine | Final product packaging | $1,500 – $10,000 | 10–50 pcs/min | Optional |
Must-have for production
Highly recommended
For premium products
Investment Breakdown by Production Scale
| Scale | Production Output | Equipment Needed | Total Investment (USD) | Workers Needed |
|---|---|---|---|---|
| 🏠 Small / Startup | 1,000 – 5,000 pcs/day | Winder + Cutter + Curler + Gluer (basic) | $15,000 – $40,000 | 3 – 5 |
| 🏭 Medium | 5,000 – 20,000 pcs/day | Full line (machines 1–6, 8–10) | $50,000 – $120,000 | 6 – 12 |
| 🏗️ Large / Industrial | 20,000 – 100,000+ pcs/day | All 12 machines (automated line) | $150,000 – $500,000+ | 15 – 30+ |
Paper Round Box Production Workflow
Here’s the step-by-step manufacturing process showing how all the machines work together:
Raw Material Preparation
Paper Slitting Machine → slits large paper rolls into narrow strips of required width
Tube Body Formation
Gluing Machine + Paper Tube Winding Machine → applies glue and winds paper strips into cylindrical tubes
Tube Cutting
Paper Tube Cutting Machine → cuts continuous tube into precise individual lengths
Edge Processing
Curling Machine + Grooving Machine → curls edges and creates grooves for end cap fitting
Lid & Bottom Making
Die Cutting Machine → cuts circular cardboard or metal discs for lids and bottoms
Assembly
Seaming Machine / Assembly Machine → attaches bottom caps and lids to tube body
Decoration & Labeling
Labeling Machine + Hot Stamping Machine → applies branding, labels, and premium foil decoration
Quality Check & Packaging
Shrink Wrapping Machine → final inspection, shrink wrapping, and carton packing for shipment
Video Gallery: Machines in Action
Watch these videos to see the complete paper round box production process and individual machines at work.
📹 Complete Paper Can Production Line
📹 Paper Tube Curling & Seaming Process
Frequently Asked Questions (FAQ)
At minimum, you need a paper tube winding machine, paper tube cutting machine, curling machine, gluing system, and die cutting machine for lids/bottoms. For composite cans with metal ends, add a seaming machine and grooving machine. A paper slitting machine is also essential for raw material preparation. Visit papertubemaker.com for complete machine packages.
A basic startup line costs approximately $15,000 – $40,000 USD. A medium-scale fully equipped line ranges from $50,000 – $120,000 USD. Large industrial automated lines can cost $150,000 – $500,000+ USD depending on automation level, speed, and customization requirements.
Spiral winding wraps paper strips at an angle around the mandrel, creating a diagonal seam pattern. It’s faster and more suitable for mass production. Parallel (convolute) winding wraps paper sheets parallel to the tube axis, producing a straight seam. It’s preferred for thicker walls, shorter tubes, and high-end cosmetic/luxury packaging applications.
Yes! Paper round boxes (composite cans) are widely used for food packaging including tea, coffee, protein powder, nuts, chips (like Pringles), cocoa, and spices. For food applications, the inner lining should be food-grade aluminum foil or PE-coated paper, and the glue must be FDA-approved food-safe adhesive. The metal ends should also be food-grade tinplate or aluminum.
You can find reliable paper tube making machines from specialized manufacturers. We recommend visiting PaperTubeMaker.com which offers a complete range of machines including winding machines, cutting machines, curling machines, seaming machines, labeling machines, and complete production lines. They provide factory-direct pricing, installation support, and after-sales service.
Ready to Start Your Paper Round Box Business?
Get expert advice, machine recommendations, and factory-direct pricing from the leading paper tube machine manufacturer.
