Boxes Thumb Cutting Machine
- 30 pcs/min throughput — sustains high-volume production lines without bottlenecks.
- 22–320 mm box width range — adapts from slim jewellery boxes to large gift packaging.
- Standard 20 mm HSS blade — delivers clean, fringe-free semi-circle thumb notches every cycle.
- 1–4 mm cardboard compatibility — handles thin chip board through heavy greyboard stock.
- Compact desktop design — 600 × 320 × 180 mm, 15 kg, standard 220 V power.
Manual & Outdated Cutting Methods
- Razor-knife notching yields frayed, uneven edges that downgrade packaging quality.
- Output caps at 5–8 pcs/min, causing critical bottlenecks in high-SKU lines.
- Requires skilled operators; errors rise sharply with fatigue over long shifts.
- Rigid jigs limit you to a single box width — retooling stalls the entire line.
- Material waste climbs as imprecise cuts increase rejection rates and customer returns.

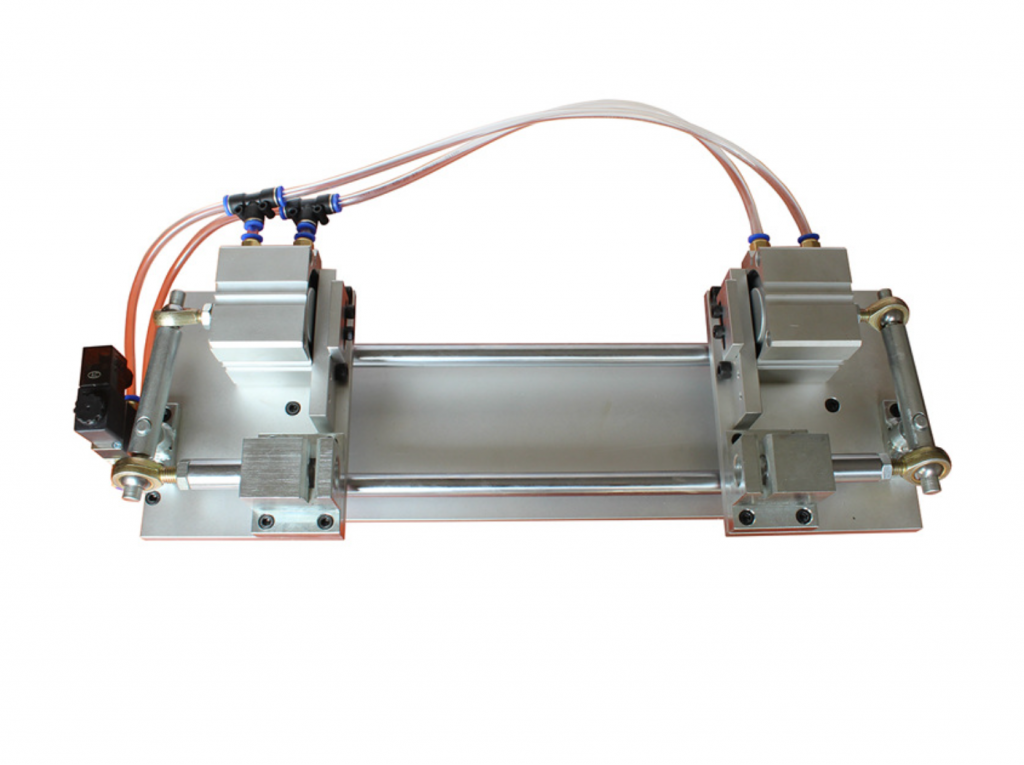

Ky-600T Thumb Cutting Machine
- Precision die-cutting produces perfectly uniform 20 mm semi-circle notches every cycle.
- 30 pcs/min throughput eliminates finishing-stage bottlenecks — 4× faster than manual methods.
- One-operator setup with a 10-minute learning curve — no specialist skills required.
- Tool-free width adjustment switches from 22 mm to 320 mm in under 60 seconds.
- Near-zero reject rate reduces material waste and improves end-customer satisfaction scores.
Core Machine Features
Engineered for rigorous B2B rigid box manufacturing environments
Wide-Range Adjustment
Accommodate box widths from 22 mm to 320 mm and cardboard stock from 1–4 mm via simple knob adjustments — no tooling changes required between SKUs.
Customisable Blade Sizes
Ships standard with a durable 20 mm HSS circular blade. Custom diameters are available on request to match proprietary packaging tooling or brand specifications.
High-Speed Output
Consistent 30 pcs/min motor-driven cycle eliminates human-paced variability and keeps downstream folding and gluing stations fully fed at all times.
Desktop Compact Form
At only 600 × 320 × 180 mm and 15 kg, the Ky-600T fits on any workbench and plugs into a standard 220 V single-phase outlet — no civil works required.
Low Maintenance Design
Sealed bearing assemblies, easily sourced blade consumables, and a clean mechanical drive path minimise downtime and keep service intervals long across high-volume runs.
Factory-Direct Quality
Built and tested at our own facility before dispatch, backed by a 1-year full warranty and lifelong spare-parts support from the Kylin Machines engineering team.
Technical Specifications
Ky-600T — Full Engineering Parameters
| Ky-600T Parameter Sheet | |
|---|---|
| Model | Ky-600T |
| Blade Diameter | 20 mm Customisable |
| Box Width Range | 22 – 320 mm |
| Cardboard Thickness | 1 – 4 mm |
| Production Speed | 30 pcs / min |
| Power Supply | 220 V, 50/60 Hz |
| Machine Dimensions | 600 × 320 × 180 mm |
| Machine Weight | 15 kg |
| Warranty | 1 Year (Parts & Labour) |
| Blade Material | High-Speed Steel (HSS) |
Application Examples
Flawless thumb-hole cuts across a full range of rigid box formats
Machine Demo Video
Watch the Ky-600T in live rigid box production operation
Frequently Asked Questions
Common questions from our global B2B packaging partners
Why Thumb-Hole Precision Defines Rigid Box Quality
“The finishing stage of rigid box assembly — including the thumb notch — accounts for less than 5% of production time yet is responsible for over 60% of consumer-facing quality perceptions.”
In the modern rigid box industry, the unboxing experience is a measurable competitive advantage. The semi-circle thumb cut on a two-piece rigid box lid is the first tactile interaction a consumer has with a brand’s packaging: a rough, uneven notch signals poor quality; a crisp, symmetrical cut communicates precision and value. For B2B packaging manufacturers supplying luxury cosmetics, consumer electronics, premium confectionery, or high-end gift markets, every single thumb hole must meet exact tolerances.
The Hidden Cost of Manual Thumb-Hole Cutting
Many smaller packaging facilities still rely on hand-operated arch punches or swivel knives for thumb notching. While the initial tooling cost is negligible, the true cost is revealed over time: a skilled operator working manually produces 250–450 notched lids per hour, compared to 1,800 per hour with the Ky-600T. At a modest labour rate, the machine typically achieves full ROI within 60–90 days of operation. Beyond speed, manual cutting generates cardboard dust and micro-tears at the notch perimeter — defects that are invisible until laminated boards are finished, causing expensive late-stage rejections.
Where the Ky-600T Fits in a Modern Box-Making Line
The Ky-600T is designed as a standalone finishing station positioned between the board-cutting/creasing stage and the lid-wrapping stage. Its compact 600 × 320 mm footprint means it can be placed on any workbench or mounted on a small pedestal beside an automatic box-making machine. The consistent 30-pcs/min output rate is matched to the capacity of mid-range semi-automatic wrapping machines, preventing any single station from becoming a bottleneck in your line.
Sourcing Considerations for International Buyers
When evaluating a boxes thumb cutting machine for your facility, total cost of ownership matters more than headline price. Key factors include blade consumable cost and local availability, motor and electrical compatibility with your local power grid, and the responsiveness of the manufacturer’s after-sales support team. Kylin Machines addresses each of these through factory-direct pricing, localised voltage configurations, and a dedicated engineering team available via video call within 4 business hours of any query.
