Automatic Drawer Box Ribbon Threading Machines: A Technical Buyer’s Guide for Packaging Manufacturers

What Is a Drawer Box Ribbon Threading Machine?

A drawer box ribbon threading machine — known in Chinese manufacturing as 全自动抽屉盒贴丝带机器 — is a specialised piece of post-press packaging equipment that automatically punches two or four holes through the sidewall of a rigid drawer box lid, then feeds, cuts, and inserts a ribbon loop that serves as a finger pull for the end consumer. The process replaces an inherently labour-intensive manual assembly step that historically limited output to 3–5 boxes per operator per minute.

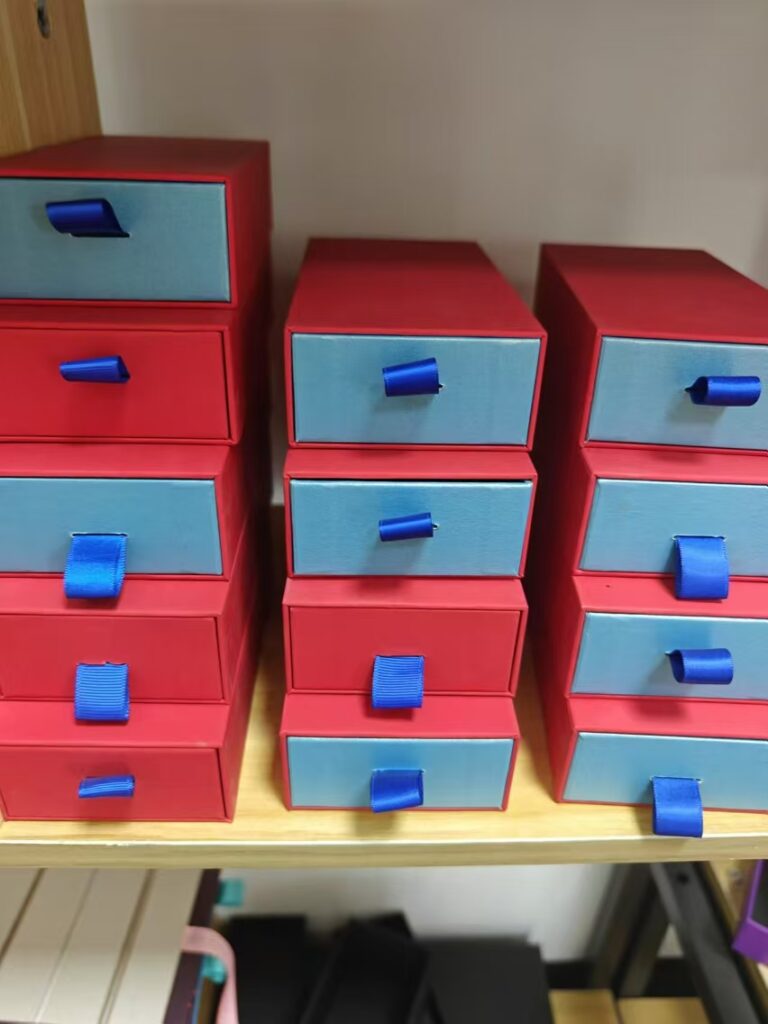

In the premium packaging segment — luxury cosmetics, fine jewellery, electronics accessories, premium spirits — the ribbon pull is not merely functional; it is a tactile brand touchpoint that communicates quality at the moment of unboxing. Inconsistent ribbon length, off-centre punch placement, or frayed cut ends are quality defects that damage brand equity and trigger returns. This is why the investment in dedicated automatic ribbon threading equipment is standard practice among tier-one packaging converters in Europe, North America, and East Asia.

“For any converter running more than 50,000 luxury drawer boxes per month, manual ribbon threading is simply not a viable production strategy. The precision, consistency, and labour economics of automatic machines are non-negotiable at that volume.”

Key Technical Parameters to Evaluate When Purchasing

When specifying a ribbon threading machine for your facility, the following parameters determine whether a given model is compatible with your production requirements:

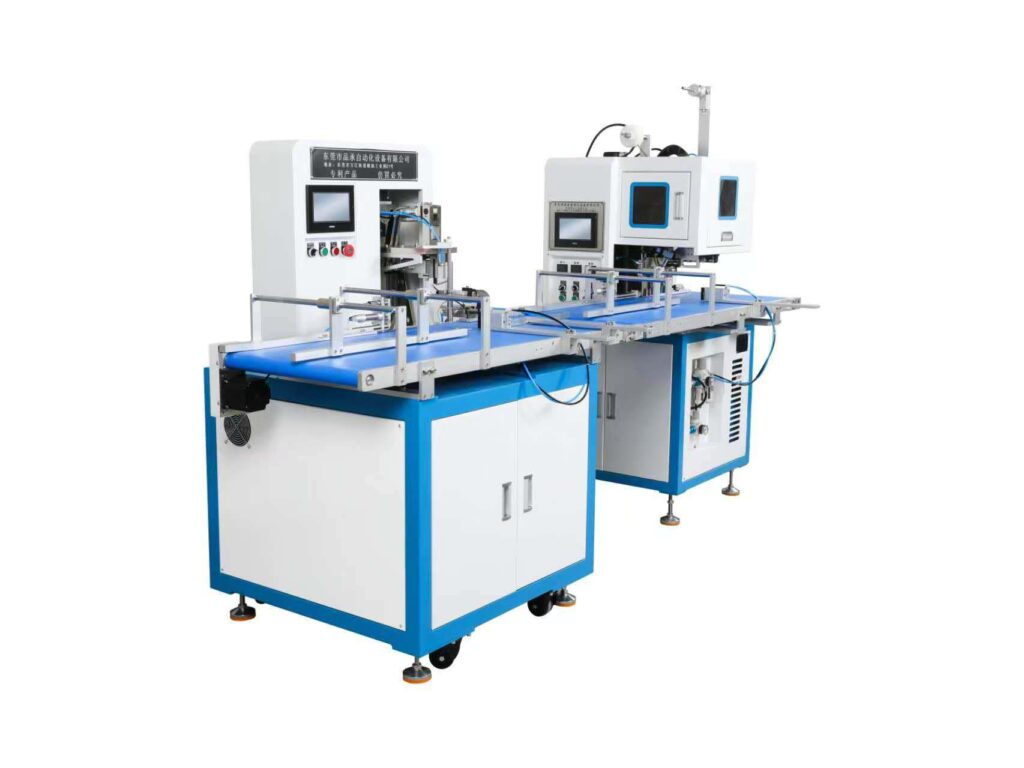

• Production speed (pcs/min): Match to your hourly output target. The KY-350ET’s 20–25 pcs/min equates to 1,200–1,500 boxes per hour on a single shift.
• Box size range (L×W×H): Ensure both your smallest and largest current SKUs fall within the machine’s adjustable limits — and account for new product development roadmaps.
• Ribbon width & fold length: Satin ribbons (10–16mm), grosgrain (16–25mm), and twill ribbons all behave differently under tension. Confirm the machine’s feed mechanism handles your preferred ribbon material.
• Punch diameter and hole centre spacing: Verify against your box structural design; some luxury brands specify off-centre pulls for aesthetic reasons.
• Drive system: Servo-driven machines like the KY-350ET offer significantly faster recipe changeover and higher positional repeatability (±0.3mm) versus cam-driven mechanical alternatives.
• Changeover time: Critical for converters running multiple SKUs daily. HMI-driven servo positioning enables sub-15-minute changeovers.
• Line integration capability: I/O interface, conveyor height compatibility, and emergency-stop protocol must align with your existing line architecture.

Total Cost of Ownership Analysis

The capital cost of a machine like the KY-350ET is best evaluated as a total cost of ownership (TCO) calculation over a 5-year horizon. At 20 pcs/min versus 4 pcs/min manual, a single machine effectively replaces 4–5 dedicated manual operators. At typical European or North American direct labour rates, the annual labour saving alone often exceeds the machine’s purchase price — delivering a payback period of 8–14 months depending on operating hours and wage levels.

Additional TCO factors include: electricity consumption (4kW versus negligible per-piece impact), annual die wear replacement (typically 2–3 sets of punching dies per year under heavy production), and planned preventive maintenance (recommended quarterly lubrication and sensor calibration schedule as per the KY-350ET maintenance manual).

Compliance and Market Access Considerations

For European Union buyers, CE marking is a mandatory prerequisite for placing industrial machinery in service. The KY-350ET’s CE declaration of conformity covers the EU Machinery Directive 2006/42/EC and the Low Voltage Directive 2014/35/EU. For buyers in the United Kingdom post-Brexit, a UKCA mark can be provided on request. North American buyers should verify compliance with OSHA 1910.212 (machine guarding) and confirm UL or CSA recognition for the electrical panel if required by local authority having jurisdiction (AHJ).

“The KY-350ET is engineered to European safety standards by design — not by retrofit. This matters enormously when your risk management team reviews the machine’s conformity documentation.”

Selecting the Right Supplier: Questions to Ask

Beyond the machine specification itself, the supplier relationship determines long-term operational success. Key due-diligence questions for any overseas packaging machinery supplier include:

• Can you provide a factory acceptance test (FAT) video with our specific box and ribbon before shipment?
• What is your documented mean time between failures (MTBF) for this model, and what data supports it?
• Do you maintain an EU or North American spare-parts depot to reduce critical downtime waiting for ocean freight?
• What training materials (video, manual, wiring diagrams) are supplied in English?
• Can you provide references from existing customers in my region running comparable applications?

Kylin Machines provides factory acceptance testing as a standard deliverable, English-language operating and maintenance manuals, and a dedicated export sales engineering team available in Western business-hours time zones.
