Manual Groove Machine
with Corner Cutter

The shift toward rigid box packaging in the luxury goods, electronics, pharmaceutical, and specialty retail sectors has created sustained demand for precision grooving equipment that can deliver clean, repeatable fold lines at the production floor level. The Kylin KY-700A manual groove machine with corner cutter represents the current benchmark for pneumatic-driven, operator-controlled grooving in small-to-medium production environments.

“Precise V-grooves are not a cosmetic detail — they are a structural engineering requirement. The quality of the groove determines the squareness of the box, the sharpness of its edges, and ultimately the integrity of the brand experience.”

Kylin Machines · Packaging Engineering Brief

What Is a Manual Groove Machine and How Does It Work?

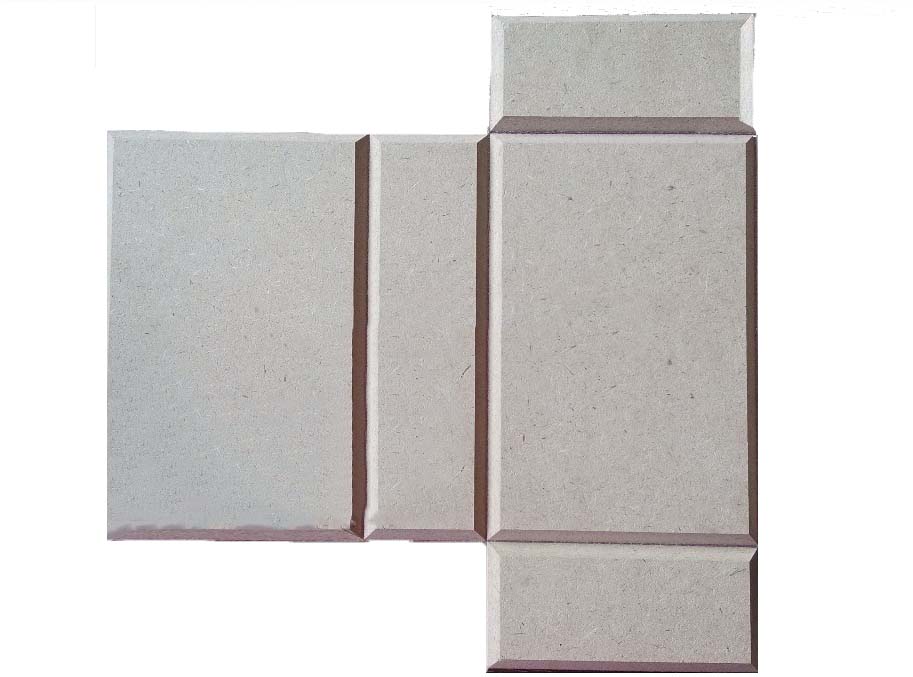

A manual groove machine — also referred to as a V-grooving machine or cardboard grooving machine — is a post-press finishing tool that removes a precise volume of material from a board’s surface along a defined path. The resulting V-shaped channel allows the board to fold cleanly and sharply without cracking, delaminating, or producing a visible fold bulge on the finished surface.

In the KY-700A’s pneumatic configuration, compressed air at 0.6 MPa drives the grooving head through its stroke with consistent force. This is fundamentally different from fully manual mechanisms where the operator’s hand pressure is the sole driver — a variable that degrades across a shift as fatigue sets in. The pneumatic assist ensures that the first groove of the day is dimensionally identical to the five-hundredth.

The Role of Corner Cutting in Rigid Box Production

The integrated corner cutter is an equally critical component of the KY-700A’s value proposition. In rigid box construction, the corners of a grooved board must be precisely removed before folding to prevent material overlap, which would create raised bumps at the corners of the finished box. The KY-700A’s corner cutting attachment handles cuts from 0 to 80 mm with the same pneumatic precision as the grooving function, eliminating the need for a separate cutting station or manual trimming.

Industry Applications: Where the KY-700A Delivers Value

The KY-700A is deployed across a broad range of packaging and print-finishing operations:

• Luxury rigid box manufacturing — jewelry, cosmetics, electronics, and premium consumer goods packaging where fold quality directly impacts perceived brand value
• Commercial print-finishing — book covers, hardcase binding, folder and portfolio construction on grey board and MDF substrates
• Custom packaging production — bespoke gift boxes and presentation cases requiring multi-angle fold capability and precise corner preparation
• Display and POP (point-of-purchase) production — display boards and structural retail packaging requiring 120° and 145° obtuse-angle folds
• Bookbinding and bindery operations — hardcover case preparation and board processing for publishers and commercial binderies

Selecting the Right Grooving Machine: Key Procurement Criteria

For B2B procurement engineers evaluating grooving equipment, the following parameters are most critical to long-term operational performance:

Drive Mechanism: Pneumatic vs. Fully Manual

The pneumatic drive is the single most important differentiator in this product category. It eliminates operator-induced process variation, enabling consistent groove depth and quality across an entire production shift and across different operators. For operations targeting premium packaging markets where dimensional tolerances are tight, pneumatic drive is the preferred specification.

Substrate Range and Thickness Capacity

The KY-700A’s 1–5 mm thickness range covers the vast majority of grey board and MDF grades used in rigid box construction globally. Buyers should confirm that their specific substrate grades fall within this range before procurement, particularly for thicker MDF applications at or near the 5 mm upper limit.

Machine Rigidity and Stability

At 100 kg, the KY-700A’s heavy-duty frame provides the vibration damping and structural rigidity essential for precision grooving. Lighter machines — while more portable — are more susceptible to table vibration and flexion under repeated pneumatic actuation, which translates directly into groove depth inconsistency.

“The KY-700A is now our standard grooving station for all rigid box production. The pneumatic drive made an immediate difference in fold quality consistency — we virtually eliminated the rework rate we experienced with our previous manual machine.”

Production Manager — Commercial Packaging Facility, Germany

Kylin Machines: Global Industrial Equipment Supplier

With more than 10,000 active customers across 30 countries, Kylin Machines has established a substantial international footprint in the packaging, print-finishing, and post-press equipment sectors. The company’s product portfolio spans rigid box production equipment, paper bag machines, case makers, and box corner tapers — with the KY-700A occupying a key position in its precision grooving line.

All Kylin machines are backed by a 3-year quality warranty, a global spare parts supply chain, and a technical support structure that includes remote telephone assistance, on-site engineer dispatch, and authorized operator training programs. For B2B buyers, this service infrastructure is a substantive risk mitigation factor that complements the machine’s technical specification.
