Professional
Slip Case Making
Machine

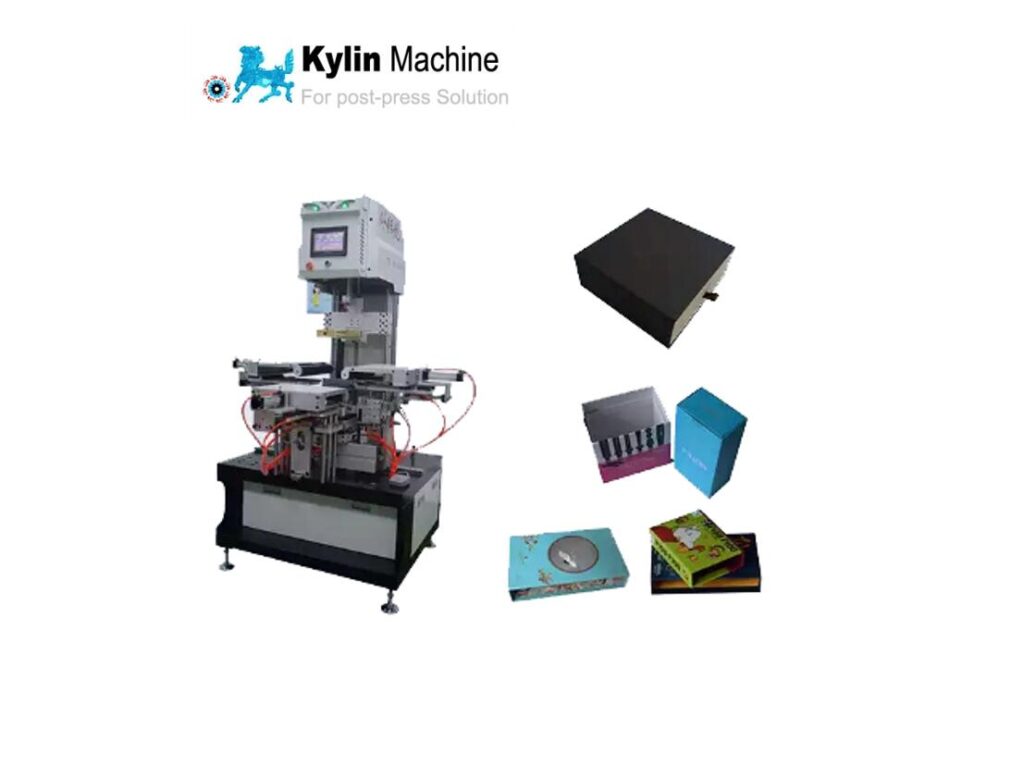

What Is a Slip Case Making Machine?

A slip case making machine is a purpose-built piece of post-press converting equipment used to manufacture rigid slip case boxes — also called sleeve boxes or slip covers. These are open-ended rigid containers, typically constructed from 1.5–3.0mm greyboard laminated with a decorative cover material, designed to house and protect books, box sets, collector’s editions, spirits bottles, and luxury consumer goods.

Industrial slip case machines automate the most time-consuming and quality-critical steps of the process: board scoring, cover lamination, corner folding, and press-forming. The result is a dimensionally consistent, high-quality rigid slip case produced at commercial throughput rates impossible to achieve with manual bench assembly.

“The transition from manual slip case assembly to the Kylin machine reduced our per-unit labour cost by 68% and cut our defect rate from 4.2% to under 0.3% — within the first quarter of operation.” — Production Manager, European Book Packaging Facility (127-machine fleet review)

Key Applications in the Packaging & Print Industry

Slip case packaging has expanded well beyond traditional book publishing. Today, the primary commercial applications include:

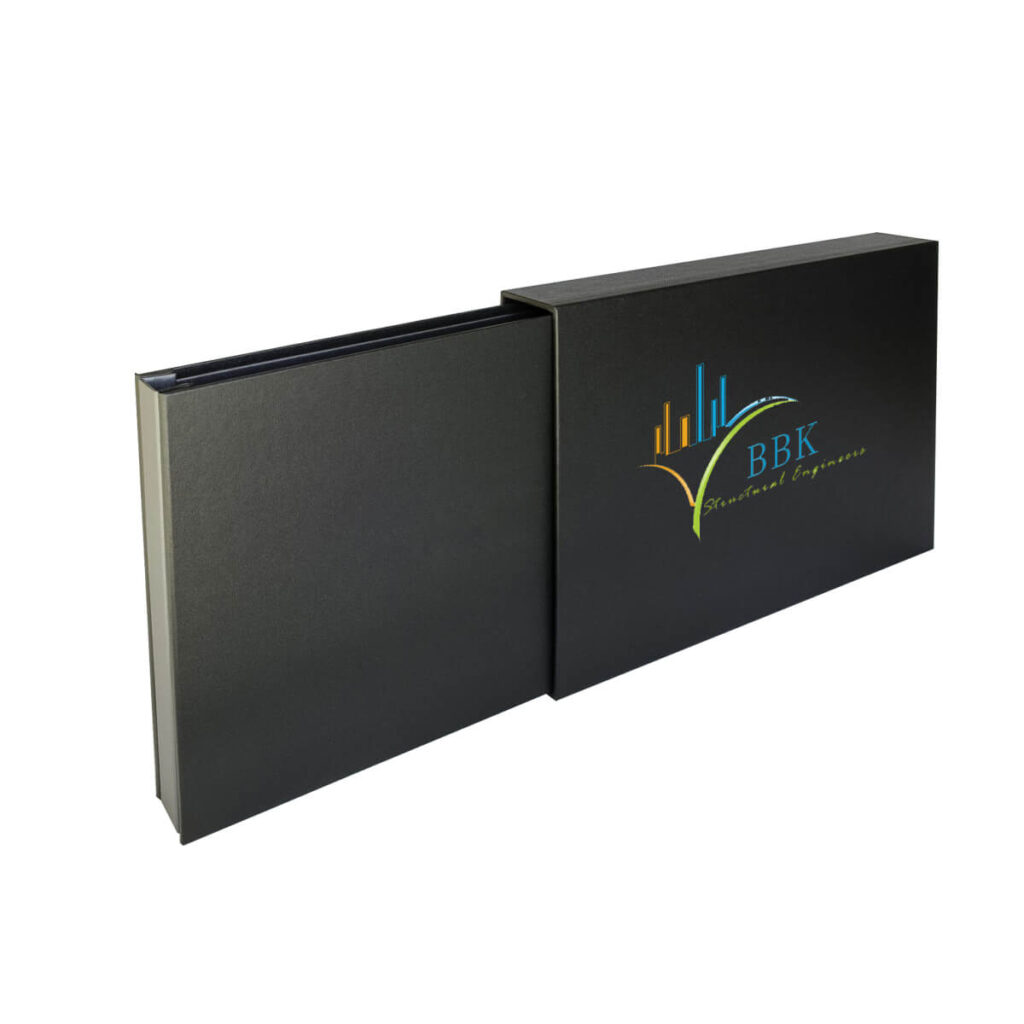

• Book slip cases: Hardcover novels, academic texts, coffee table books, and collector’s editions
• Gift set packaging: Cosmetics, spirits, watches, and luxury consumer goods sets
• Retail sleeve boxes: Consumer electronics, board games, and premium stationery
• Archival and museum packaging: Document protection, art print preservation, and curated collections
• Magazine holder boxes: Subscription bundle packaging and periodical display sleeves

Greyboard Selection and Material Compatibility

Material selection has a direct impact on machine cycle time, corner sharpness, and final presentation quality. For standard book slip cases, 2.0–2.5mm grey board is the industry norm. Luxury applications often specify 2.8–3.0mm board for a substantial, premium feel. Cover materials range from 80gsm art paper through to 1.2mm natural linen and full-grain leather, all of which the Kylin machine handles with appropriate adhesive calibration.

PLC Control Systems and the Case for Digital Production Management

Modern slip case machines are defined by the sophistication of their control architecture. The Kylin machine’s PLC-based system stores up to 99 named job recipes — each containing all forming axis positions, glue temperature, pressing dwell time, and feed speed parameters. When a job is recalled, all mechanical axes move to their programmed positions automatically.

This capability transforms format changeover from a skilled-technician task taking 2–4 hours (the norm on mechanically adjusted legacy machines) to a 10–15-minute procedure executable by any trained operator. For converters running mixed job schedules with 10+ different slip case formats per week, PLC job management is not a luxury — it is a production prerequisite.

“Digital recipe management has been the single highest-impact feature for our short-run, high-mix production environment. We can run 12 different book formats in a single shift with no quality compromise.” — Operations Director, North American Specialty Packaging Plant

Precision Standards: Why ±0.5mm Matters in Slip Case Manufacturing

A slip case is a press-fit packaging form. Unlike folding cartons, which have generous tolerance stacks, a slip case must fit its contents with a precise, controlled clearance — typically 1.0–1.5mm per dimension. If the machine’s forming tolerance is ±1.5mm or worse (as is common with lower-specification equipment), the resulting dimensional variation eats into the entire clearance budget, producing slip cases that are either too tight (damaging covers on insertion) or too loose (offering inadequate protection and a poor premium feel).

The Kylin machine’s servo-driven forming system holds ±0.5mm across all four corners and both open-end dimensions throughout a production run — even as tooling heats up during extended operation. This precision standard is verified at factory acceptance testing and is the basis of the machine’s suitability for luxury book and gift packaging production.

Total Cost of Ownership and ROI Analysis

For packaging operations evaluating capital investment in slip case equipment, a structured TCO analysis typically reveals payback periods of 8–18 months, depending on production volume and labour market. Key variables in the ROI model include:

• Labour cost displacement (typically 3–5 FTE equivalent per machine at rated output)
• Reject rate reduction (industry average manual reject rate: 3–5%; machine-assisted: under 0.5%)
• Material utilisation improvement (consistent glue dosing reduces adhesive waste by 15–25%)
• Throughput premium (accepting more orders without proportional headcount growth)
• Energy cost (rated ~5.5 kW, very low for its output class)

Kylin’s commercial team can provide a facility-specific ROI model based on your current production data, labour costs, and target output mix. Request this analysis as part of your quotation process.

International Shipping, Installation, and B2B Service Commitment

The Kylin slip case machine ships from our manufacturing facility to customers in over 60 countries. Standard delivery terms are FOB Shanghai or CIF destination port, with full export documentation, CE certification, and a packing list suitable for import clearance in all major markets. Ocean freight transit times to Europe are typically 22–28 days; to the US East Coast, 18–25 days; to Australia and Southeast Asia, 12–18 days.

All machines undergo a comprehensive factory acceptance test (FAT) before shipment, producing a minimum of 500 slip cases across three different size formats to verify speed and dimensional performance. FAT documentation, including production logs and dimensional measurement records, is provided with every machine. The standard 2-year warranty covers all mechanical wear parts and electrical components, with replacement parts dispatched within 48 hours of diagnosis.
