Cardboard Slitting Machine
KY-1300 — Precision at
75 m/min

What is a Cardboard Slitting Machine?

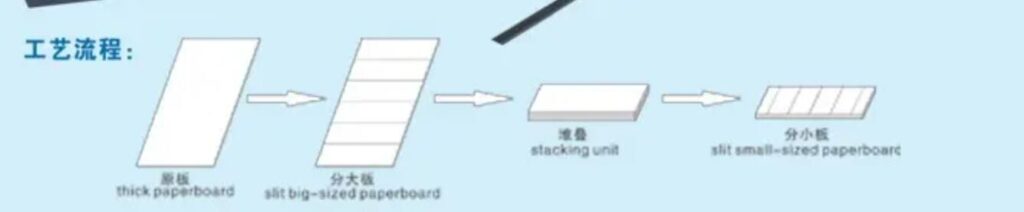

A cardboard slitting machine — also referred to as a cardboard slitter, board cutter, or sheeting machine — is an industrial device that converts wide-format cardboard rolls into narrower strips or sheets of precise width. The rotary blade mechanism runs continuously at production line speed, making it a core asset in packaging plants, print-finishing facilities, and paper converting operations worldwide.

Unlike guillotine cutters that operate intermittently, slitting machines process material in a continuous web, delivering output rates that are orders of magnitude higher. For operations running three-shift production schedules, throughput difference between a 40 m/min legacy cutter and the KY-1300’s 75 m/min directly translates to tens of thousands of additional linear metres processed per shift.

“Switching to the KY-1300 reduced our cardboard preparation time by 38% in the first month. The edge quality eliminated our secondary trimming step entirely.”

— Production Manager, folding carton manufacturer, Poland

Key Metrics When Selecting an Industrial Cardboard Slitter

1. Cutting Speed (m/min)

Speed is the primary throughput determinant. Industry-standard machines in the 2010s operated at 30–50 m/min. Modern equipment such as the KY-1300 targets 75 m/min, which is achievable without sacrificing cut quality provided the blade geometry, drive system, and material tensioning are properly matched. Always request a factory acceptance test at rated speed before shipment.

2. Material Compatibility (Thickness & Grade)

Cardboard is not a homogeneous material. Greyboard, chipboard, kraft liner, micro-corrugated, and laminated packaging board all behave differently under a rotary blade. A well-specified slitter should comfortably handle 1mm to 4mm without blade deflection or edge tearout across all grades in that range.

3. Width Precision

For folding-carton and book-cover applications, slit-width tolerance directly affects whether downstream creasing, scoring, and gluing operations run within specification. A tolerance of ±0.5mm is considered best-in-class for mechanical slitters in this weight class. Servo-assisted positioning — as used in the KY-1300 — achieves this without manual re-gauging between jobs.

4. Energy Consumption

With industrial electricity costs rising across Europe and North America, the power draw of continuous-operation equipment is a meaningful cost line. A machine drawing 1.5 kW versus a comparable 5 kW competitor saves approximately 26,280 kWh per year on a two-shift production schedule — representing a substantial reduction in operational expenditure over the machine’s service life.

Applications Across Industries

• Folding Carton Manufacturing: Pre-slitting of coated greyboard prior to die-cutting and creasing lines
• Corrugated Packaging: Trimming and slitting of single-face and single-wall corrugated board to order widths
• Print Finishing: Preparation of cover-board and backing boards for bookbinding and hardcover production
• Gift & Luxury Packaging: Precision-cut rigid box bases and lids from laminated chipboard
• Stationery & Office Products: Production of notepads, file folders, and presentation board components

“For B2B buyers evaluating industrial slitting equipment, total cost of ownership over five years — including energy, blade replacement, and maintenance — consistently outweighs the initial purchase price as a decision driver.”

— Capital Equipment Procurement Benchmark, FEFCO 2024

Installation, Commissioning & Training

The KY-1300 arrives on a single flat-rack container pallet with all sub-assemblies pre-fitted. Installation requires a level concrete floor rated to ≥2,500 kg/m², a standard 3-phase power drop within 5m, and a compressed air supply at 6 bar for optional pneumatic blade clamping. Full commissioning — including first-article slit testing and operator training — typically completes within two working days.

Remote after-sales support is provided via our dedicated technical portal, where engineers can access live machine diagnostics via the integrated IoT monitoring module (optional upgrade). Replacement blade cartridges, bearings, and drive belts are stocked at regional distribution points in Germany, the UAE, and the United States for next-day delivery to most locations.

How to Request a Quotation

To receive an accurate factory quotation and delivery proposal, please have the following information ready: required slit width range, input roll width and core diameter, cardboard grades processed (density g/m², thickness range), required throughput in m/hr or shifts/day, and destination port. Our applications team will respond within one business day with a detailed technical and commercial proposal.
