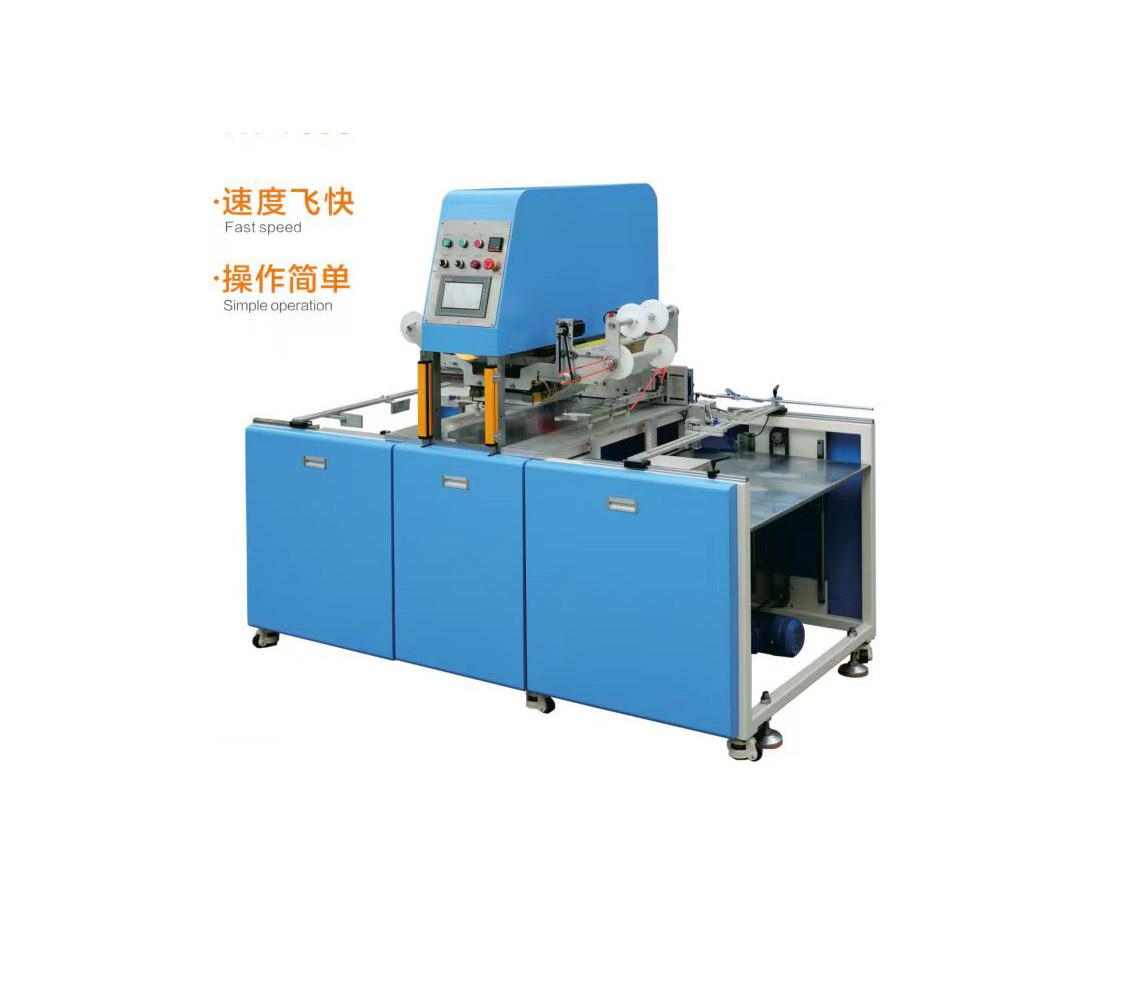

Fully Automatic Servo Hot Stamping Machine
The KY-H-700S and KY-H-500 redefine foil stamping for luxury packaging — combining closed-loop servo precision, fully automatic sheet feeding, and an industrial PLC interface designed for B2B production at scale.
The Business Case for Servo-Driven Stamping
Every inconsistency costs you margin. Servo technology closes the loop.
Pressure Fluctuations in Pneumatic Drives
Air-pressure variance leads to foil ghosting, uneven depth, and rejection rates that eat into premium-job margins.
Closed-Loop Servo Pressure — Constant Every Cycle
The servo motor maintains torque-controlled, repeatable pressure at ±0.30 mm — critical for multi-layer luxury foil work.
Manual Feeding Creates Throughput Bottlenecks
Hand-fed machines cap output at 300–500 cycles/h, inflate labor costs, and make large orders impossible to scale.
Automatic Feeder — Up to 1 500 Cycles / Hour
Integrated auto-feeder eliminates operator fatigue and turns a 3-person task into a 1-person monitoring role.
Long Job-Change Setup Times
Traditional machines require skilled technicians and 30–60 min changeovers per new job profile.
PLC Touchscreen — Save & Recall Job Profiles in Seconds
Operators store temperature, pressure, and foil-length presets. Changeovers take minutes, not hours.
Why Specifiers Choose the KY-H Servo Series
Six engineering differentiators that matter in B2B production environments.
High-Torque Servo Drive
Closed-loop servo motor delivers constant velocity and force, eliminating the variance inherent in pneumatic and cam-driven systems.
1 500 Cycles / Hour
Automatic sheet feeder sustains peak throughput across full production shifts — tripling typical manual-feed output.
±0.30 mm Registration
Precision foil-feeding sensors and servo-controlled gripper advance ensure micron-level registration on every pass.
PID Temperature Control
Heating plate maintains ±2 °C stability across the full stamping area — compatible with metallic, holographic, and pigment foils.
Hot Stamp + Deep Deboss
Adjustable pressure up to 2.5 T enables blind debossing, embossing, and combined foil-plus-emboss effects without a secondary press.
Industrial-Grade Build
Cast-iron frame (up to 810 kg) absorbs vibration for stable stamping on thick substrates — rated for 24 / 7 production use.
Technical Specifications
Factory-verified parameters — KY-H-700S vs KY-H-500.
| Specification | KY-H-700S | KY-H-500 |
|---|---|---|
| Max Paper Size | 700 × 550 mm | 500 × 500 mm |
| Min Paper Size | 100 × 100 mm | 100 × 100 mm |
| Max Stamping Area | 300 × 200 mm | 150 × 150 mm |
| Min Stamping Area | 10 × 10 mm | 10 × 10 mm |
| Stamping Precision | ±0.30 mm | ±0.30 mm |
| Production Speed | Up to 1 500 cycles/h | Up to 1 500 cycles/h |
| Max Pressure | 2.5 T | 1.5 T |
| Drive System | Servo Motor | Servo Motor |
| Voltage | 220 V | 380 V |
| Total Power | 3.5 kW | 2.5 kW |
| Machine Dimensions | 2000 × 1000 × 1772 mm | 1700 × 852 × 1664 mm |
| Net Weight | 810 kg | 620 kg |
| Warranty | 36 months | 36 months |
Four Steps from Sheet to Finished Product
Load
Stack sheets into the automatic feeder — the machine handles continuous feeding without operator intervention.
Program
Enter or recall a saved job profile on the PLC touchscreen: temperature, pressure, foil pitch, and sheet registration.
Stamp
The servo head descends with programmed force — consistent foil transfer or deep deboss on every cycle.
Collect
Finished sheets are neatly jogged into the delivery stack — ready for next-stage finishing or dispatch.
Watch the KY-H-700S in Full Production
Factory-floor footage — automatic feeding, foil registration, and finished luxury packaging output.
Engineered for the Finishing Industry’s Most Demanding Jobs
Luxury Gift & Rigid Boxes
Perfume, spirits, jewelry, and high-end electronics — metallic or holographic foil on greyboard or specialty paper.
Book Covers & Bindings
Hardcover foil stamping and spine detailing at high volume for publishers and binderies.
Premium Hangtags
Fashion and luxury apparel branding with metallic accents on card or leather substrates.
Invitations & Stationery
High-detail foil work for wedding invitations, VIP event stationery, and premium certificates.
Business Cards & Folders
Consistent pressure and temperature for fine-line foil on thick stocks and duplex boards.
Corrugated & Cardboard Packaging
Branded shipping boxes and retail-ready packaging with premium metallic branding at scale.
Servo vs Standard — Side-by-Side
| Feature | KY-H-700S | KY-H-500 | Standard Manual / Pneumatic |
|---|---|---|---|
| Drive System | Servo Motor | Servo Motor | Manual / Pneumatic |
| Registration Accuracy | ±0.30 mm | ±0.30 mm | ±1.0 mm+ |
| Feeding Method | Fully Automatic | Fully Automatic | Hand Feed |
| Max Speed (cycles/h) | 1 500 | 1 500 | 300 – 500 |
| Pressure Control | Digital PLC — 2.5 T | Digital PLC — 1.5 T | Analog / Fixed |
| Temperature Stability | ±2 °C PID | ±2 °C PID | ±10 °C typical |
| Foil Compatibility | Metallic, Holographic, Pigment | Metallic, Holographic, Pigment | Metallic only (typically) |
| Debossing Capability | Yes | Yes | Limited |
| Warranty | 36 months | 36 months | 12 months typical |
What B2B Buyers Say After 12 Months in Production
“Upgrading from our pneumatic press to the KY-H-700S was a turning point. Registration on our luxury perfume boxes went from ±0.9 mm to under ±0.30 mm overnight. Zero foil ghosting.”
“The PLC job-memory function alone saved us 45 minutes per changeover. We doubled daily bookbinding output with the same headcount within the first quarter.”
“For premium business-card work, consistent pressure is non-negotiable. Kylin’s servo machine delivers exactly as specified. The 36-month warranty gave our procurement team confidence.”
Frequently Asked Questions
Answers to the questions B2B procurement teams ask most.
Precision Foil Stamping in Modern Luxury Packaging Production
The Precision Imperative in Luxury Packaging
In a market where a perfume box or a premium spirits carton represents the first physical touchpoint between brand and consumer, the quality of foil stamping is not decorative — it is commercially critical. A 0.5 mm misregistration on a multi-pass foil design can invalidate an entire press run. Brands increasingly specify servo-driven hot stamping as a procurement prerequisite for their converters.
“The shift from pneumatic to servo-controlled stamping is not an upgrade — it is a category change. The precision and repeatability are incomparable.” — Industry Technical Review, Print & Packaging Quarterly, 2024
Why Closed-Loop Servo Motors Change the Equation
A pneumatic stamping head is governed by air pressure — an inherently variable medium. Line pressure fluctuates with compressor duty cycles, ambient temperature affects air density, and any leak introduces unpredictable variation. A servo motor, by contrast, receives real-time position and torque feedback at millisecond intervals, correcting deviation before it manifests as a visible defect. The result is a registration accuracy of ±0.30 mm — sustained across an 8-hour shift, regardless of operator fatigue or ambient conditions.
Throughput Economics: The ROI of Automation
At 1 500 cycles per hour, a single KY-H-700S replaces three manual-feed operators while producing three to five times the daily output. The breakeven calculation is straightforward: reduced labor cost, lower foil waste from rejected sheets, and the ability to accept larger orders with faster lead times — all contribute to measurable margin improvement within the first production year.
“Our KY-H-700S paid for itself in under 14 months. The reduction in foil waste alone covered 30% of the investment.” — Production Manager, European Luxury Box Converter, 2025
Material Versatility as a Competitive Differentiator
The KY-H series’ independently adjustable foil-tension system and PID-controlled heating plate make it the only press in its class compatible with metallic, holographic, cold-transfer, and pigment foils from all major manufacturers. Combined with a pressure range from precision foil work to 2.5 T deep debossing, the machine covers the full spectrum of luxury-finishing applications — from delicate wedding invitations to thick-gauge rigid packaging — on a single platform.
Kylin Machines’ 36-month warranty and factory-direct spare parts inventory ensure that this single platform remains productive throughout its operational life, reducing total cost of ownership significantly versus market alternatives.
Ready to Specify the KY-H Series for Your Production Line?
Request a technical datasheet, discuss custom configurations, or arrange a live demonstration with our engineering team.
