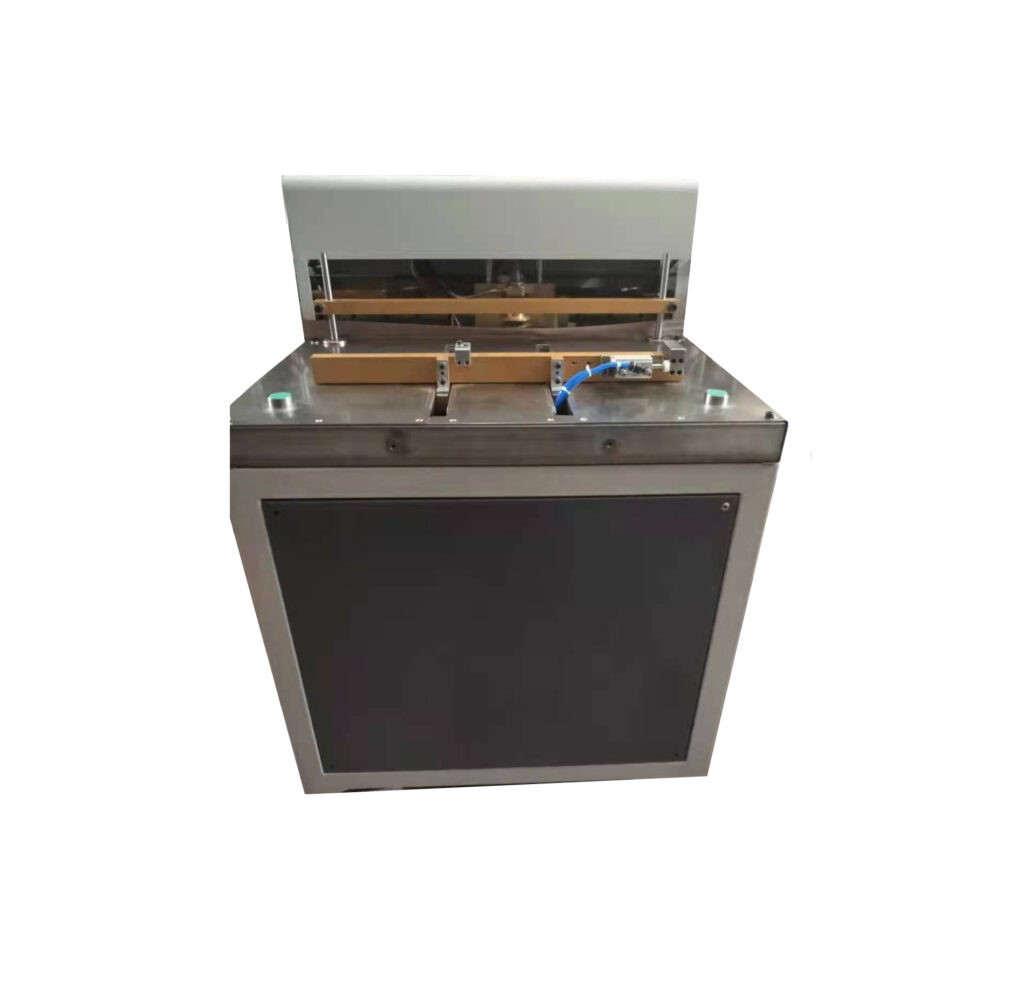

KY-600A Jewelry Box
Edge Gilding Machine
Premium Gold Foil Stamping Solution for Luxury Rigid Packaging. Achieve Flawless Edge Finishing at Industrial Speeds.
Industry Applications
Jewelry Box Edge Gilding
Ideal for premium ring, necklace, bracelet, and rigid gift box finishing with sharp metallic edges.

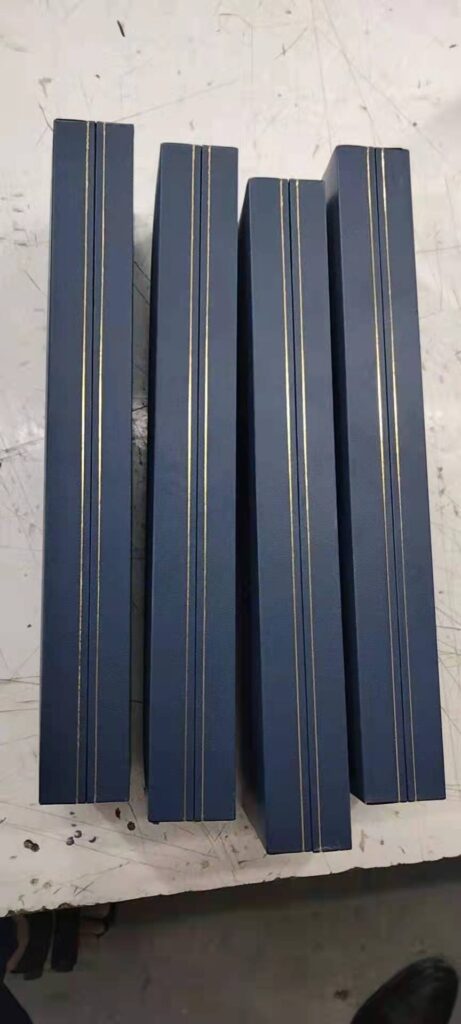

Luxury Rigid Box Detailing
Suitable for watch boxes, cosmetic boxes, perfume packaging, and other vertical premium box styles.

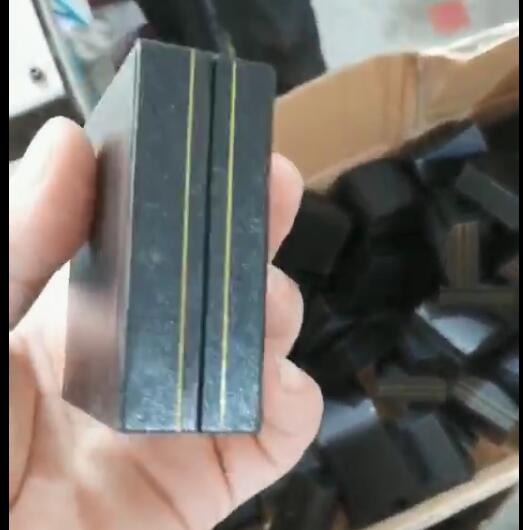

Premium Packaging Decoration
Delivers clean foil finishing for gift boxes, collector packaging, and branded luxury presentation boxes.
Why Choose KY-600A?
The Challenges of Manual Gilding
- Inconsistent Quality: Manual pressure leads to uneven foil adhesion and peeling.
- Slow Production: Hand-foiling limits output and increases labor costs significantly.
- High Material Waste: Inaccurate positioning results in wasted gold/silver foil.
- Labor Intensive: Requires skilled workers who are increasingly difficult to find.
The KY-600A Automation Edge
- Precision Heating: PID control maintains ±1°C accuracy for perfect foil transfer.
- High-Speed Output: Produce up to 1,500 boxes per hour with a single operator.
- Zero Waste Design: Precise foil feeding mechanism minimizes foil consumption.
- Universal Compatibility: Works with gold, silver, colored, and holographic foils.
Advanced Machine Features
PID Temperature Control
Ensures stable heat distribution (80–200°C) for consistent gilding quality across various materials.
Multi-Foil Support
Effortlessly switch between Gold, Silver, Holographic, and customized colored foils for diverse designs.
Wide Size Range
Accommodates boxes from small ring cases (60mm) to large gift boxes (600mm) with easy adjustment.
Easy Changeover
Quick-release mechanisms allow for rapid foil roll changes and box size adjustments in minutes.
Consistent Quality
Automated pressure application guarantees 100% uniformity across all four edges of the box.
Low Foil Waste
Programmable foil advance system ensures you only use the exact amount of foil required for each box.
Technical Specifications
| Model | KY-600A |
| Production Speed | 15–25 pcs/min |
| Max Box Size | 600 × 450 × 150 mm |
| Min Box Size | 60 × 40 × 15 mm |
| Foil Width | 20–80 mm |
| Heating Method | Electric, PID Temperature Control |
| Temperature Range | 80–200°C |
| Power Requirement | 3.5 KW, 220V |
| Dimensions | 1800 × 1200 × 1500 mm |
| Machine Weight | 850 kg |
| Warranty | 36 Months (3 Years) |
Standard Equipment Includes:
Watch KY-600A in Action
Streamlined Operation Process
Load Box
Place the pre-assembled rigid box onto the positioning jig.
Apply Foil
The machine automatically feeds and aligns the stamping foil.
Heat Press
The heated plate applies uniform pressure to the box edges.
Output
The finished gilded box is released, ready for final packing.
Product Comparison
| Feature | KY-600A (Jewelry Box) | KY-410 (Book Gilding) | Manual Gilding |
|---|---|---|---|
| Application | 3D Boxes / Rigid Cases | Book Blocks / Flat Paper | Any (Unreliable) |
| Speed | 25 pcs/min | 10-15 books/min | 2-3 pcs/min |
| Precision | High (PID Control) | High | Low (Human Error) |
| Box Size Max | 600 x 450 mm | N/A | Variable |
| Labor Need | Minimal (1 Operator) | 1 Operator | High (Skilled) |
Success Stories
Frequently Asked Questions
Ready to Upgrade Your Packaging?
Contact us today for factory-direct pricing and technical consulting.
Complementary Machinery
The Ultimate Guide to Jewelry Box Edge Gilding with KY-600A
In the world of luxury packaging, details are everything. A premium jewelry box isn’t just a container; it’s a statement of quality and brand identity. One of the most sought-after finishes in high-end rigid box manufacturing is edge gilding—the process of applying gold, silver, or holographic foil to the vertical edges of the box. For years, this was a painstaking manual process. Today, the KY-600A Jewelry Box Edge Gilding Machine from Kylin Machines has revolutionized this workflow, offering unprecedented speed, precision, and cost-efficiency.
Precision Engineering for Flawless Results
The KY-600A is built on a heavy-duty 850kg chassis, designed to eliminate vibrations that can cause foil misalignment. At its core is an advanced PID (Proportional-Integral-Derivative) temperature control system. Unlike basic heating elements that fluctuate in temperature, PID control maintains a constant heat level (up to 200°C) with minimal variance. This is critical because different foil types—whether they are metallic gold or complex holographic patterns—require specific, stable temperatures to bond perfectly with the substrate without burning or peeling.
Unmatched Production Versatility
One of the standout features of the KY-600A is its ability to handle a vast range of box sizes. Whether you are producing delicate ring boxes (starting at 60x40mm) or oversized presentation cases for luxury watches or jewelry sets (up to 600x450mm), the machine adjusts with ease. The foil width support from 20mm to 80mm ensures that even the deepest boxes can receive a full-edge treatment in a single pass. This versatility makes the KY-600A the ideal choice for contract packaging manufacturers who serve multiple high-end clients with varying design needs.
Efficiency and ROI for Manufacturers
Moving from manual edge foiling to the KY-600A typically results in a 500% to 800% increase in production capacity. With speeds of up to 25 pieces per minute, a single machine can replace several manual workstations. Furthermore, the automated foil tensioning and feeding system significantly reduces material waste. In an industry where gold foil costs can impact profit margins, the KY-600A’s precision feeding is a direct contributor to your bottom line. Coupled with our industry-leading 36-month warranty, the return on investment is clear and rapid.
Why Choose Kylin Machines?
As a specialized manufacturer of jewelry box machinery, Kylin Machines understands the unique requirements of the luxury packaging industry. The KY-600A is the result of years of R&D and feedback from top packaging factories worldwide. When you choose Kylin, you aren’t just buying a machine; you’re gaining a partner. We provide comprehensive English documentation, video installation guides, and 24/7 technical support to ensure your production line never stops. From jewelry and watch boxes to cosmetic and perfume packaging, the KY-600A is the gold standard for edge finishing.
