KY-PW2™ Polygon
Rigid Box Wrapper

What Is a Polygon Rigid Box, and Why Does Shape Complexity Matter?

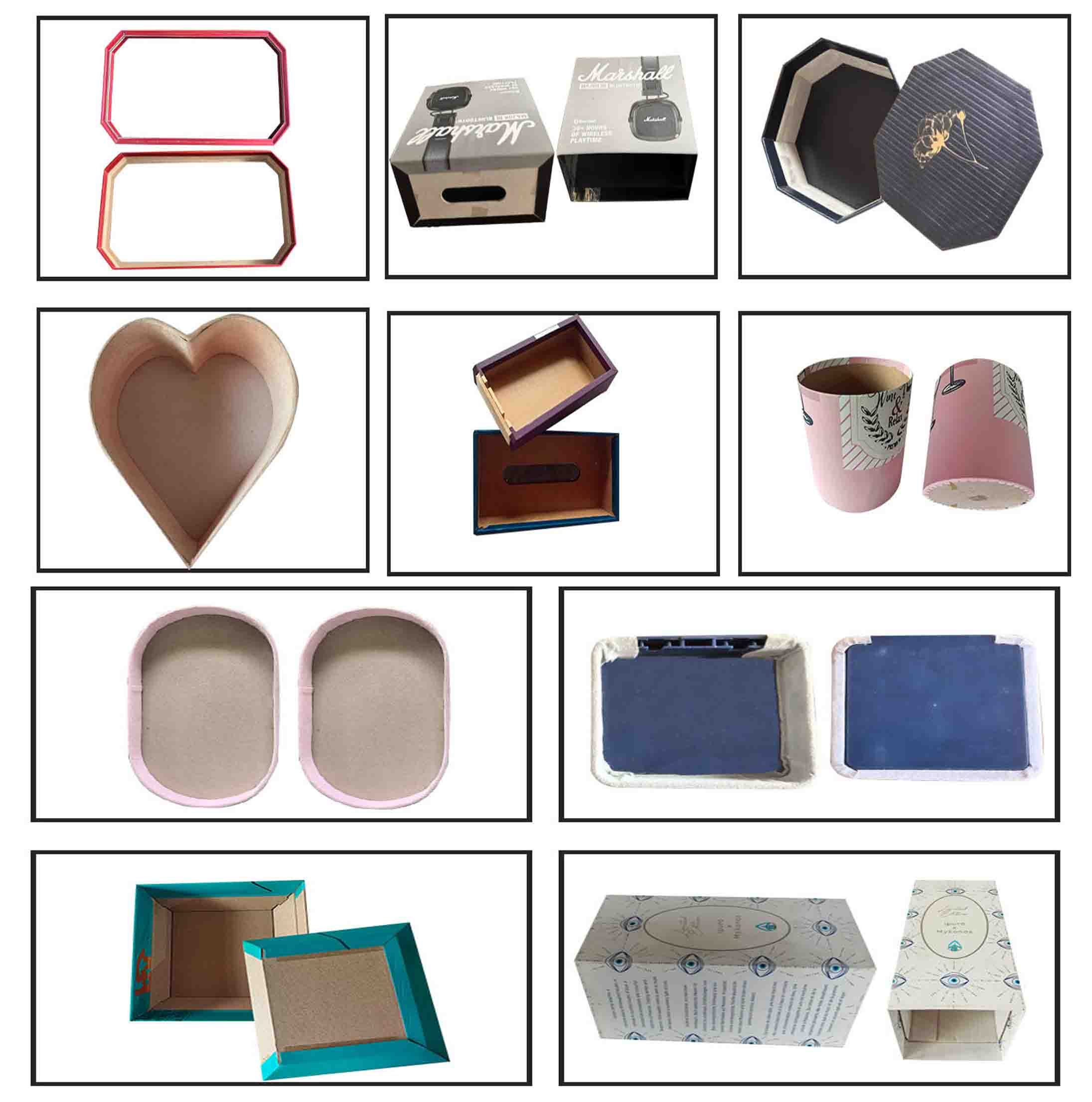

In the context of high-end packaging manufacturing, a polygon rigid box refers to any rigid box construction — chipboard core, wrapped exterior — that departs from the standard four-sided (rectangular) format. This includes hexagonal, octagonal, pentagonal, round, and heart-shaped designs. While these formats represent a small percentage of total rigid box production volume globally, they are disproportionately prevalent in the highest-margin product categories: luxury jewelry, haute perfumery, premium confectionery, and exclusive gift sets.

The commercial premium commanded by polygon-format packaging is well-documented in the luxury goods sector. A distinctive box shape communicates brand investment to the end consumer in a way that a rectangular format, however elegantly finished, cannot replicate. This drives consistent demand from brand owners for polygon formats — and a persistent production challenge for their packaging manufacturing partners.

Why Conventional Rigid Box Wrappers Cannot Handle Polygon Formats

Standard rigid box wrapping machines, whether semi-automatic or fully automatic, are designed around a critical assumption: the box being wrapped has four right-angle corners. The folding tooling, the mold geometry, and the pneumatic pressure sequence are all calibrated for 90° corner folds. When a polygon box with 6, 8, or more sides — each with a different interior angle — enters this system, the result is invariably unsatisfactory: uneven paper tension, visible corner creases, lifted edges, and adhesive failure at fold points.

This leaves polygon box wrapping as a predominantly manual operation at most packaging factories. Skilled hand-wrapping can produce acceptable quality results, but at a throughput of 80–120 pieces per hour per operator, it is fundamentally incompatible with the volume requirements of a commercially viable luxury packaging contract.

The KY-PW2 Engineering Approach

The KY-PW2 addresses this challenge through a purpose-built mechanical and pneumatic architecture. Unlike adapted rectangular wrappers, the KY-PW2’s folding tooling is designed from the ground up to accommodate variable-angle corner geometry. The machine’s shape-specific mold system defines the exact geometry for each polygon format, while the pneumatic folding arms are configured to apply the correct pressure vector at each corner angle — whether that is the 60° interior angle of a hexagonal box or the 135° angle of an octagonal design.

Material Handling for Luxury Packaging Applications

One of the less-discussed technical requirements of polygon rigid box wrapping is the behavior of specialty covering materials under corner-folding stress. Standard coated art papers behave predictably at right angles. However, the shallower fold angles of polygon box corners — combined with the larger paper overlap required at each vertex — create a significantly more demanding material stress condition.

The KY-PW2’s pneumatic pressure system is calibrated to handle this, delivering consistent folding force without cracking, tearing, or surface marking the covering material. This is particularly critical when working with:

• Embossed and textured papers with directional grain that must be oriented correctly
• Leatherette (PU) stocks that are sensitive to pressure marks from tooling edges
• Linen and fabric coverings that require precise tension control to prevent pull-through or gathering
• Foil-laminated papers where corner-fold cracking at the foil layer is a common defect in lower-precision systems

Operational ROI: Calculating the Business Case

For packaging manufacturers evaluating capital equipment investments, the ROI calculation for the KY-PW2 is driven by two primary variables: throughput improvement and labor cost reduction. A typical manual polygon wrapping operation for hexagonal boxes may involve 3–4 skilled operators producing 300–400 pieces per hour collectively. A single KY-PW2, operated by a single semi-skilled operator, replaces this output at 800–1,000 pieces per hour — while simultaneously improving consistency and eliminating first-piece-quality inspection costs associated with manual wrapping variation.

The machine’s 15–20 minute format changeover capability also enables manufacturers to accept shorter, more frequent polygon box orders without the scheduling penalties that typically apply when changeovers are measured in hours. This flexibility directly expands the addressable production order book for KY-PW2 operators.

Integration into an Existing Rigid Box Production Line

The KY-PW2 is designed as a standalone semi-automatic workstation, requiring only 380V/3-phase power and a compressed air supply at 0.6–0.8 MPa. Its compact footprint — manageable with a recommended floor area of 3.5 × 2.5 meters — allows it to be integrated into existing rigid box production facilities without major layout modifications. It operates as the wrapping stage downstream of the box forming and gluing operation, and upstream of quality inspection, lining insertion, and final packing.
