Small Batch Rigid Box Set Production: Complete Machine Guide | Kylin Machines
Table of Contents
Why Rigid Box Sets Are Booming in 2026
The global luxury packaging market is projected to exceed USD 75 billion by 2028, driven by rising consumer demand for premium unboxing experiences across cosmetics, jewelry, electronics, confectionery, and apparel. Rigid boxes — often called set-up boxes — are at the center of this growth because they offer unmatched structural rigidity, print quality, and perceived premium value.
For small and medium printing businesses, brand studios, and packaging workshops, the opportunity lies in small-batch production: producing 500–5,000 units of a custom rigid box set without the capital cost of a fully automated production line. Modern semi-automatic and tabletop machines have made this not just possible — but highly profitable.
The Small Batch Rigid Box Production Workflow
Understanding the production sequence is critical before selecting machines. Every rigid box — whether a jewelry box, gift set, or phone packaging — follows the same core steps:
| Step | Process | Machine Used | Output |
|---|---|---|---|
| 1 | Apply adhesive to greyboard / paper | Simple Glue Machine | Evenly glued sheets |
| 2 | Cut V-grooves for clean fold lines | V-Grooving Machine | Scored chipboard panels |
| 3 | Cut paper corners for neat wrapping | Paper Corner Cutting Machine | Pre-cut wrap paper |
| 4 | Tape and reinforce box corners | Easy Corner Taping Machine | Corner-reinforced shells |
| 5 | Form and wrap the rigid box | Rigid Box Forming Machine | Finished rigid box |
| + | Optional finishing (thumb cut, magnet, fold cover) | Add-on tools (Section E) | Value-added final product |
The beauty of this modular approach is flexibility: you can invest in the core four machines first, then add optional tools as your orders grow and product complexity increases.
Full Machine Comparison Table
| Machine | Model | Role in Line | Speed / Output | Footprint | Weight |
|---|---|---|---|---|---|
| Simple Glue Machine | KY-500G | Gluing sheets & paper | 0–28 m/min | 800×340×370mm | 55 kg |
| V-Grooving Machine | KY-800A | Scoring greyboard | Manual / semi-auto | 1060×980×735mm | 150 kg |
| Corner Taping Machine | — | Taping box corners | Semi-automatic | Compact tabletop | — |
| Rigid Box Forming Machine | KY-550C | Full box forming & wrapping | 18–24 pcs/min | 1000×1340×2100mm | 750 kg |
| Thumb Cutting Machine | KY-600T | Optional: thumb cut | 30 pcs/min | 600×320×180mm | 15 kg |
| Magnet Separator | — | Optional: magnet closure | Semi-auto | Compact | — |
| Paper Corner Cutter | — | Optional: wrap prep | Semi-auto | 450×350×1570mm | 80 kg |
| Single Folding Cover Machine | — | Optional: fold cover | Semi-auto | Compact | — |

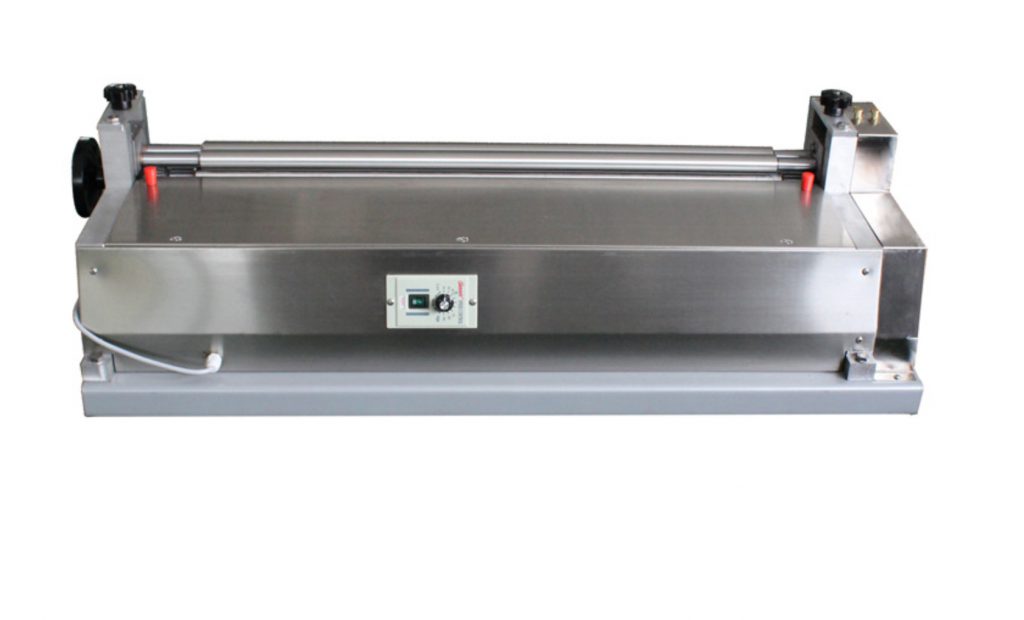

A. Simple Glue Machine — KY-500G
The foundation of any rigid box production line is reliable, even adhesive application. The KY-500G Simple Glue Machine is a compact, tabletop water-based gluing machine designed for coating paper, cardboard, and greyboard with precision. Whether you’re laminating wrap paper onto chipboard or applying adhesive before box assembly, this machine delivers consistent glue thickness at adjustable speeds.
Using eco-friendly water-based glue, the KY-500G is clean, safe, and suitable for food-adjacent packaging like confectionery and tea gift sets. It’s the ideal entry-level gluing solution for small workshops and sample-making studios.
- Water-based glue — eco-friendly & safe
- Adjustable glue thickness: 40–300 g/m²
- Handles paper up to 10mm thick
- Compact design, easy tabletop setup
- Variable speed: 0–28 m/min
Technical Specifications
| Model | KY-500G |
| Max Glue Width | 500 mm |
| Glue Thickness | 40 – 300 g/m² |
| Paper Thickness | 0.5 – 10 mm |
| Speed | 0 – 28 m/min (adjustable) |
| Power | 120 W |
| Machine Weight | 55 kg |
| Machine Dimension | 800 × 340 × 370 mm |
Watch it in Action
B. Box V-Grooving Machine — KY-800A
Before a rigid box can be folded into shape, the greyboard or chipboard must be precisely scored with V-grooves to create clean, sharp fold lines. The KY-800A Easy Sample Rigid Cover Box V-Grooving Machine is engineered for exactly this purpose — delivering precise V-groove cuts up to 800mm in length with adjustable slotted angles between 90° and 120°.
This machine is the go-to choice for sample making, small batch production, and rapid prototyping of rigid box lids and covers. Its compact footprint makes it perfect for packaging studios, print shops, and any facility that values flexibility over full automation.
- Up to 800mm groove length
- Adjustable angle: 90° – 120°
- Handles board thickness 1–5mm
- Suitable for greyboard, chipboard, and cardboard
- Ideal for prototyping and small batch runs
- Perfect for luxury gift box lids and covers
Technical Specifications
| Model | KY-800A |
| Max Groove Length | 800 mm |
| Board Thickness | 1 – 5 mm |
| Slotted Angle | 90° – 120° |
| Machine Dimension | 1060 × 980 × 735 mm |
| Machine Weight | 150 kg |
Watch it in Action

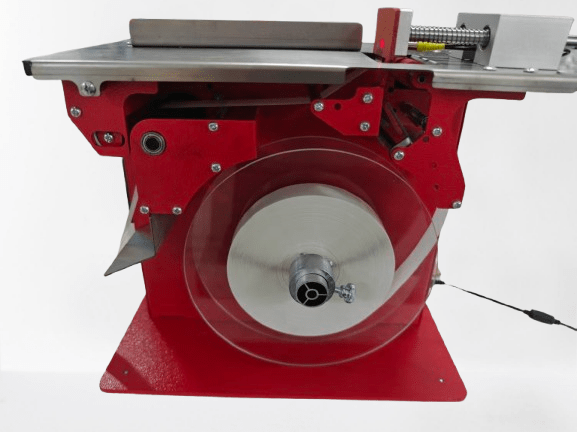

C. Easy Corner Taping Machine
Corner taping is one of the most labor-intensive steps in rigid box production — and the one most prone to quality inconsistency when done by hand. The Easy Corner Taping Machine automates the taping and reinforcement of box corners, dramatically improving uniformity, speed, and structural integrity across your entire batch.
This compact machine is engineered for small-batch production environments. Its minimum finished case size of 40 × 40 × 10mm makes it suitable for jewelry boxes, ring boxes, and even miniature gift packaging — some of the highest-value segments in the rigid box market.
- Handles minimum box size 40 × 40 × 10 mm
- Consistent corner reinforcement on all 4 corners
- Significantly reduces manual labor
- Improves box structural integrity
- Fast changeover between box sizes
- Suitable for jewelry, gift, and cosmetic boxes
Technical Specifications
| Min. Finished Case Size | 40 × 40 × 10 mm |
| Operation Mode | Semi-Automatic |
| Application | Rigid box corner taping & reinforcement |
| Suitable Box Types | Jewelry, gift, cosmetics, electronic boxes |
Watch it in Action
D. Rigid Box Forming Machine — KY-550C
The KY-550C Rigid Box Forming Machine is the heart of the production line — and Kylin’s best-selling machine for 2024. This semi-automatic forming machine takes a flat, pre-glued box shell and transforms it into a perfectly wrapped, finished rigid box in a continuous process. It handles boxes from 40 × 40 × 10mm up to 550 × 400 × 120mm, covering the vast majority of gift box, cosmetic box, and electronic packaging sizes.
The KY-550C is the upgraded successor to the KY-500B, featuring a stronger frame, easier size adjustment, and a PLC touch panel for program storage. Its brush roller system ensures even wrap-around glue pasting on all four sides, while pneumatic control delivers bubble-free final pressing.
- 18–24 pcs/min production speed
- Smart size setting with quick changeover
- Brush roller for even 4-side glue pasting
- Pneumatic flap bending — bubble-free finish
- PLC touch panel with job program storage
- Handles phone, tea, jewelry, moon cake boxes & more
Technical Specifications
| Model | KY-550C |
| Max Box Size | 550 × 400 × 120 mm |
| Min Box Size | 40 × 40 × 10 mm |
| Working Speed | 18 – 24 pcs/min |
| Power | 1.2 kW |
| Machine Dimension | 1000 × 1340 × 2100 mm |
| Machine Weight | 750 kg |
Watch it in Action
E. Optional Add-On Tools
Enhance your rigid box production line with these specialized accessories. Select based on your product requirements and target market.
Boxes Thumb Cutting Machine — KY-600T
After box wrapping, many premium rigid boxes feature a thumb cut — a semicircular notch cut into the lid or base that allows easy opening without damaging the box. The KY-600T delivers this feature with high precision at 30 pcs/min. At just 15kg, it’s the most portable machine in the line.
View Product Page →| Model | KY-600T |
| Blade Diameter | 20mm (customizable) |
| Box Width Range | 22 – 320 mm |
| Cardboard Thickness | 1 – 4 mm |
| Speed | 30 pcs/min |
| Power | 220V |
| Dimension | 600 × 320 × 180 mm |
| Weight | 15 kg |
Mini Handheld Hot Glue Machine
For spot-gluing inserts, ribbons, foam padding, and interior liners, a handheld hot glue machine offers unbeatable flexibility. This compact tool is used at the finishing stage to attach accessories that cannot go through the main production line, making it essential for gift set and luxury packaging workflows.
View Product Page →- Handheld design for maximum flexibility
- Hot melt glue — instant bonding
- Ideal for spot-gluing inserts and ribbons
- No setup time — plug and use
- Perfect for gift set finishing and luxury packaging
- Low cost, high utility accessory
Best For: Attaching foam inserts, silk liners, ribbon pulls, magnetic clasps, and accessories to finished rigid box interiors.
Watch it in Action

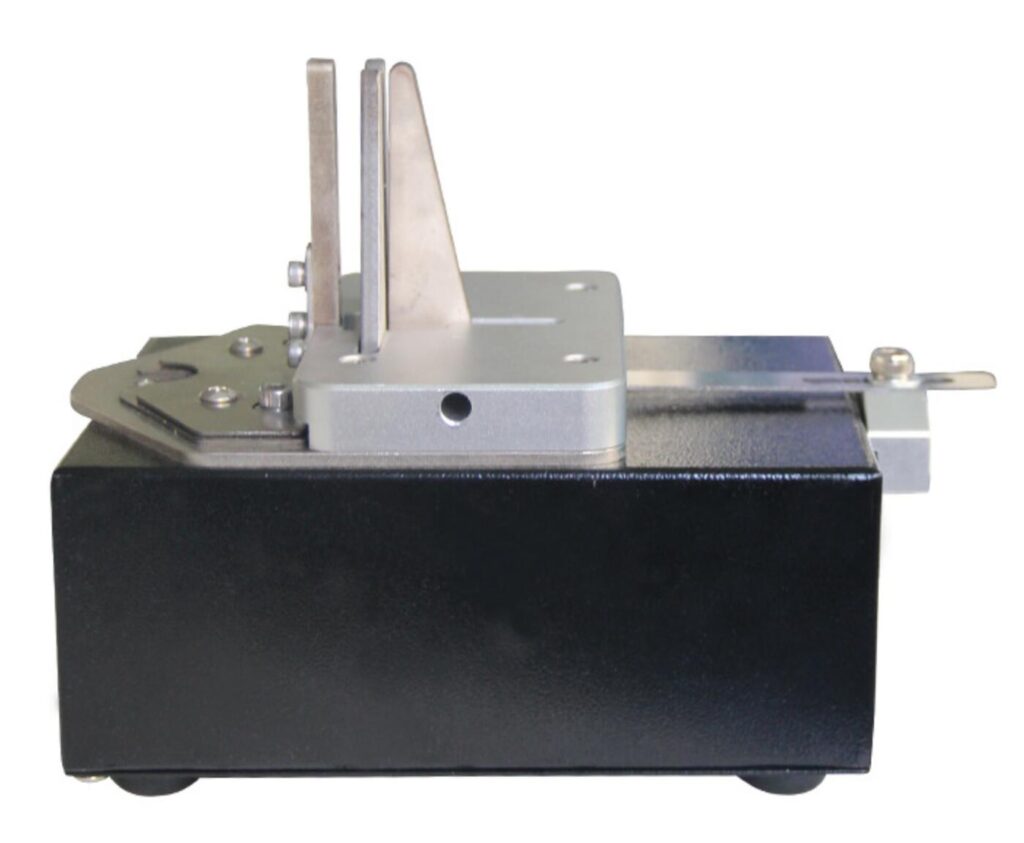

Magnet Separator
Magnetic closure boxes are among the most popular premium packaging styles for cosmetics, jewelry, and high-end gift sets. The Magnet Separator efficiently separates pre-stacked magnetic sheets for quick, precise placement during box assembly — eliminating the time-consuming manual separation process that slows production.
View Product Page →- Separates stacked magnetic sheets with precision
- Dramatically speeds up magnet box assembly
- Reduces operator fatigue and error
- Compatible with standard magnetic closure sheets
- Essential for cosmetic & jewelry box production
- Compact and easy to integrate into any workstation
Best For: Any production line making magnetic flip-top boxes, magnetic lid gift boxes, or premium closure packaging requiring precise magnet placement.
Watch it in Action

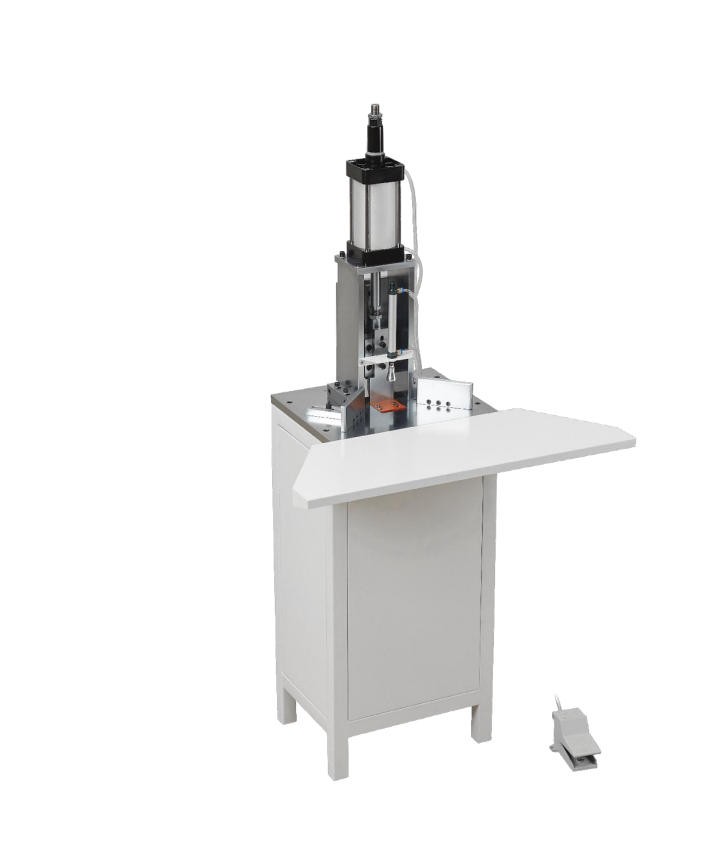

Paper Corner Cutting Machine
Before wrapping paper is applied to a rigid box, the corners must be precisely cut at 45° to allow clean folding without overlapping bulk. This semi-automatic Paper Corner Cutting Machine stacks and cuts paper corners in bulk — far faster and more consistent than hand cutting, and a critical quality step for professional-grade wrapping results.
| Stack Height | 60 mm |
| Corner Cut Width | 60 mm |
| Working Air Pressure | 0.4 – 0.6 MPa |
| Work Table Size | 430 × 800 mm |
| Machine Weight | 80 kg |
| Machine Dimension | L450 × W350 × H1570 mm |

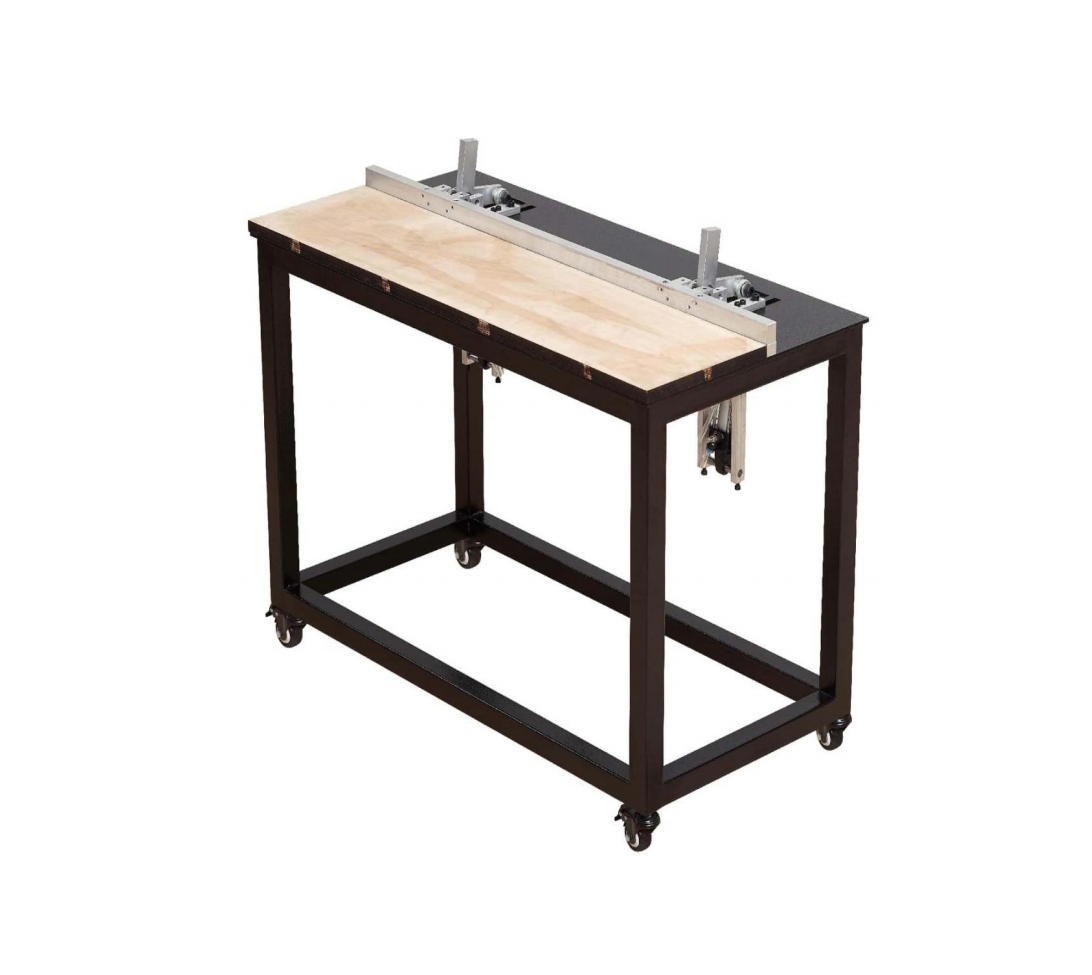

Single Folding Cover Machine
The Single Folding Cover Machine automates the folding of single-panel covers — lids, flaps, or wrap-around panels — for rigid boxes and hardcover products. This machine ensures a perfectly flat, crease-free fold every time, eliminating the bowing and inconsistency that commonly occurs in manual folding, especially on larger box lids.
- Consistent, crease-free single panel folding
- Suitable for box lids, flaps, and wrap covers
- Reduces bowing and warping on larger panels
- Semi-automatic — easy single-operator use
- Improves output quality for premium packaging
- Compact footprint for small workshops
Investment & ROI Quick Guide
For businesses evaluating the total cost and return of setting up a small batch rigid box line, the table below provides a structured overview of the core machine investment vs. output potential.
| Machine | Role | Est. Daily Output | Key Benefit |
|---|---|---|---|
| Simple Glue Machine KY-500G | Gluing | High volume sheet coating | Consistent glue application, no manual mess |
| V-Grooving Machine KY-800A | Scoring | 400–800 sheets/day | Clean fold lines, zero tearing |
| Corner Taping Machine | Taping | Batch processing | Uniform corner finish, reduced rejects |
| Rigid Box Forming KY-550C | Forming | ~1,800–2,000 pcs/day (8h shift) | Professional quality at semi-auto speed |
Frequently Asked Questions
Q: What is the minimum order volume where machines become cost-effective?
For most small batch rigid box lines, orders of 500+ units per run make machine investment clearly worthwhile. Below 500 units, hand production may still be faster for one-off samples. For recurring orders above 500 units, the quality consistency and speed of the machine line delivers significant advantages.
Q: Can the KY-550C forming machine handle both the lid and base of a rigid box?
Yes. The KY-550C forms both the lid (cover) and the base (tray) of a standard rigid box. You simply run the cover and tray shells separately through the machine, adjusting size settings between runs. The PLC touch panel allows you to save size programs for quick changeover.
Q: Is water-based glue from the KY-500G compatible with all wrap paper types?
Water-based glue works excellently with most art paper, textured paper, kraft paper, and leatherette wraps. For metallized or PVC-coated wraps, a hot melt system may be more suitable. The KY-500G’s adjustable glue thickness allows tuning for different paper weights and absorption rates.
Q: How many operators does the core 4-machine line require?
A typical small-batch line with the 4 core machines can be operated by 2–4 operators: one for gluing/grooving prep, one feeding the forming machine, and one or two for QC, assembly, and finishing. With optional tools like the corner taper and thumb cutter, throughput per operator increases significantly.
Q: Do these machines come with training and after-sales support?
Yes. Kylin Machines offers authorized equipment training programs, 3-year quality warranty, free phone tech support, and on-site engineer visits when needed. They serve 10,000+ customers across 30+ countries and maintain regional support capabilities.
Q: What types of rigid boxes can this production line make?
The core line handles: standard lid-and-base gift boxes, magnetic flip-top boxes (with optional magnet separator), hinged lid boxes, drawer boxes, slipcase boxes, and specialty shapes. With optional add-on tools, you can also produce boxes with thumb cuts, folded single-panel covers, and custom interior inserts.
