The Complete Guide to
Rigid Box Sample Making
From structural design & material selection to die cutting & hand assembly — a step-by-step walkthrough of every machine, tool, and technique used to create premium rigid box prototypes for your clients.
What Is a Rigid Box?
A rigid box (also known as a set-up box) is a premium packaging solution made from thick greyboard (chipboard) wrapped with printed paper, fabric, or specialty materials. Unlike folding cartons, rigid boxes are assembled in their final 3D form and do not fold flat. They are widely used for luxury products such as electronics (Apple, Samsung), cosmetics, jewelry, spirits, and high-end retail goods.
💡 Why Sampling Matters
Before committing to mass production (MOQ often 500–3,000 pcs), clients need a physical sample to verify dimensions, material feel, color accuracy, structural integrity, and overall presentation. A well-made sample wins orders.
Common Rigid Box Types
| Box Type | Structure | Common Use |
|---|---|---|
| Lid & Base Box | Separate lid + tray | Gift boxes, apparel, electronics |
| Hinged / Book-style Box | Lid connected to base with hinge | Cosmetics, luxury perfume |
| Drawer / Slide Box | Inner tray slides out of sleeve | Jewelry, chocolate, tea |
| Collapsible / Foldable Rigid Box | Flat-packed with magnets | E-commerce, subscription boxes |
| Shoulder / Neck Box | Lid sits on an inner “shoulder” | Wine, spirits, premium gifts |
| Magnetic Closure Box | Flip-top lid with hidden magnets | Electronics, cosmetics, VIP kits |
Structural Design & Drawing
Every rigid box begins with structural design. Our packaging engineers work closely with the client to determine dimensions, box style, opening mechanism, and internal fitments. This phase defines the entire project.
Key Design Software & Tools
ArtiosCAD (by Esko)
The industry-standard structural design software for packaging. Creates precise dielines, 3D folding simulations, and generates cutting die layouts. Includes a parametric library of ECMA/FEFCO box styles.
Adobe Illustrator
Used for graphic artwork, creating print-ready files with bleed, and layering brand graphics over structural dielines. Essential for integrating visuals with the structural template.
SolidWorks / Rhino 3D
3D modeling for complex inserts, trays, and structural prototyping
EngView Package Designer
Alternative to ArtiosCAD with built-in dieline templates
Esko Studio (3D Visualizer)
Renders photorealistic 3D mockups from flat dielines for client approval
Design Process Workflow
📏 Critical Tolerances
For rigid boxes, the lid-to-base gap is typically 1.0–1.5mm per side. The wrapping paper overlap is usually 15–20mm. Greyboard thickness must be factored into internal dimensions. A 0.5mm error can cause the lid to be too tight or too loose.
Material Selection
Material quality directly impacts the feel, weight, durability, and perceived value of the rigid box. Below is a comprehensive breakdown of all materials involved in rigid box sample making.
Primary Materials
| Material | Specification | Purpose | Source |
|---|---|---|---|

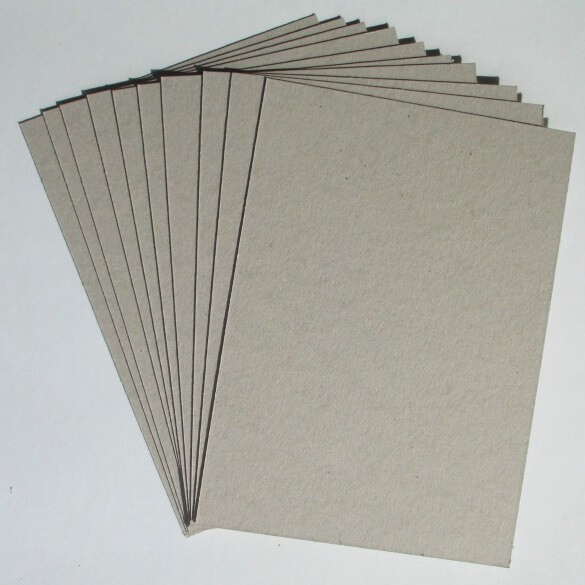

| Greyboard (Chipboard) | 1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm | Box structure (walls, base, lid) | Paper mills (e.g., Dongguan, Ningbo) |
| Art Paper / C2S | 128gsm / 157gsm | Wrapping paper (printed graphics) | Gold East, APP, Sun Paper |
| Specialty Paper | 120gsm–250gsm textured | Premium wrapping (Curious, Constellation) | Fedrigoni, Gmund, Takeo |
| Fancy Paper / Touch Paper | Various textures & weights | Soft-touch, linen, felt textures | Specialty paper distributors |
| EVA / Sponge Foam | Various densities, 5–50mm | Internal product protection inserts | Foam suppliers |
| Satin / Silk Fabric | Polyester or silk blend | Internal lining for luxury feel | Fabric markets |
| Magnetic Sheet | 1mm–2mm thick, various N grades | Magnetic closures | Magnet suppliers |
| Ribbon / Elastic Band | Satin, grosgrain, 10–25mm width | Pull ribbons, closure ribbons | Ribbon suppliers |
| PVC / PET Window Film | 0.2mm–0.5mm clear | Transparent windows | Film suppliers |
| White Glue / PVA | Quick-dry bookbinding grade | Paper-to-board adhesion | Chemical suppliers |
| Hot Melt Glue | EVA-based sticks/pellets | Assembly bonding, magnet fixing | Henkel, local brands |
Greyboard Thickness Guide
| Thickness | Weight (gsm) | Best For |
|---|---|---|
| 1.0mm | ~600gsm | Small boxes, internal dividers |
| 1.5mm | ~900gsm | Standard gift boxes, cosmetics |
| 2.0mm | ~1200gsm | Electronics, mid-size boxes |
| 2.5mm | ~1500gsm | Large boxes, heavy products |
| 3.0mm | ~1800gsm | Wine boxes, oversized packaging |
Dieline & CAD Drawing
The dieline is the flat technical drawing that defines every cut line, fold line, and glue tab. For rigid boxes, we create two separate dielines: one for the greyboard structure and one for the wrapping paper.
📋 Greyboard Dieline Includes:
📋 Wrapping Paper Dieline Includes:
🎬 ArtiosCAD Rigid Box Design Demo
Die & Mold Making
Once the dieline is approved, we create physical cutting dies and molds used in production. For sampling, some cuts can be done manually or with digital cutters, but understanding the full die-making process is essential.
Equipment Used in Die Making
Laser Die Cutting Machine (Die Board Laser)
Cuts precise slots into plywood die boards (18mm birch plywood) where steel rules are inserted. Accuracy: ±0.05mm. Brands: kylin machine company, dongguan.

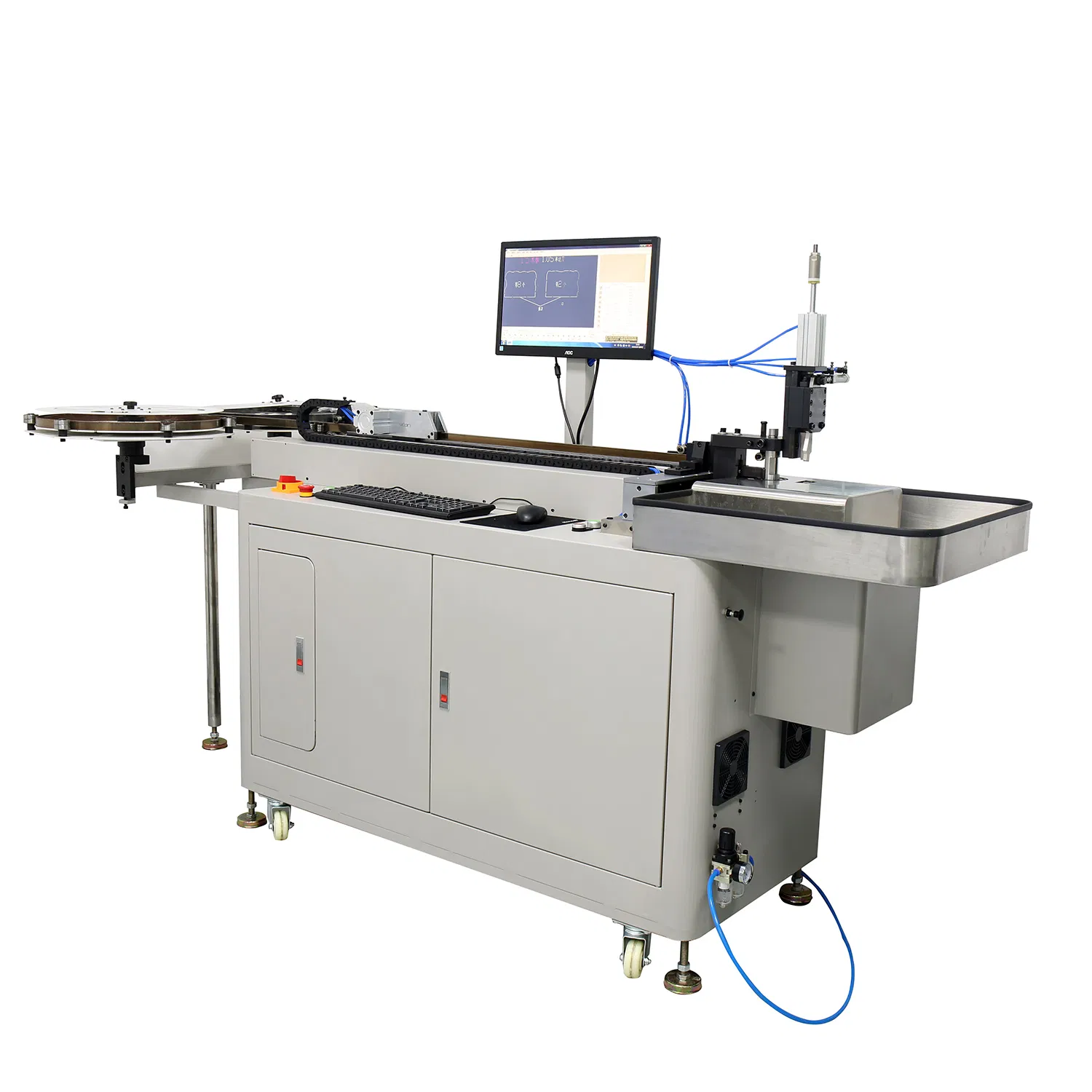

Auto Bending Machine (Rule Bender)
CNC machine that automatically bends steel cutting rules and creasing rules to match dieline shapes. Accuracy: ±0.1mm. Brands: kylin machine company, dongguan.
🪵 Die Board
18mm Finnish birch plywood laser-cut with slots for steel rules
🗡️ Steel Cutting Rules
2pt (0.71mm) sharp edge rules, center bevel, for cutting through paper/board
📏 Creasing Rules
Rounded-edge rules for scoring/folding lines without cutting
🧱 Ejection Rubber
Foam rubber strips glued beside rules to push material out after cutting
🔨 Die Nicking Tool
Creates small nicks in rules to hold cut pieces together as a sheet
🧲 Stripping Pin Board
Counter die used with stripping to remove waste from cut sheets
⚡ Sample Shortcut: Digital Cutting
For prototyping and sample making, we often skip traditional die making and use a digital flatbed cutter (e.g., Zünd, Kongsberg, or Ruizhou). These CNC knife cutters can cut greyboard and wrapping paper directly from CAD files — no die required. Ideal for 1–50 pieces.
🎬 Die Making Process Video
Greyboard Cutting & Scoring
The greyboard forms the rigid skeleton of the box. It must be cut to exact dimensions and scored precisely to create clean folds. This step is critical — inaccurate cuts result in gaps, misalignment, and poor fit.
Machines for Greyboard Processing
Greyboard Cutting Machine(Board Slitter)
Automatically cuts large greyboard sheets into precise strips and panels. Uses multiple circular blades for parallel cuts. Brands: kylin machine company, dongguan. Speed: up to 60 sheets/min.
Cuts V-shaped grooves into greyboard at fold lines, allowing thick board to fold at 90° without cracking. Essential for one-piece box construction. Brands: kylin machine company, dongguan.
Multi-functional CNC cutting table with oscillating knife, drag knife, and creasing wheel. Cuts greyboard, foam, fabric, and paper from digital files. Brands: kylin machine company, dongguan.
Pneumatic or hydraulic machine that cuts precise 45° or 90° notches at board corners for clean mitre joints. Some models offer adjustable angles. Brands: kylin machine company, dongguan.
🎬 Greyboard V-Grooving Machine in Action
Wrapping Paper Printing
The wrapping paper carries the brand’s visual identity — logos, colors, patterns, and text. For sampling, we typically use digital printing for speed and flexibility. For mass production, offset printing is standard.
Printing Equipment

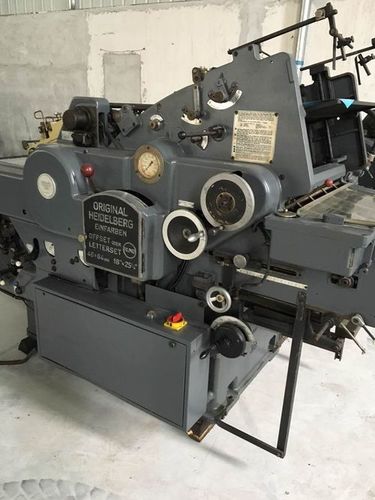

Offset Printing Press (Heidelberg / Komori)
Multi-color (4C or 6C) sheet-fed offset press for high-volume, high-quality CMYK printing. Resolution: 175–200 lpi. Used for production runs. Brands: kylin machine company, dongguan.
Digital Printer (HP Indigo / Konica Minolta)
For sample making and short runs (1–500 sheets). No plates required, variable data capable. 1200 dpi resolution. Common models: HP Indigo 7900, Konica Minolta C12000, Xerox Iridesse.
CTP Machine (Computer to Plate)
Converts digital files into aluminum printing plates for offset press. Eliminates traditional film exposure. Brands: kylin machine company, dongguan. Resolution: 2400–4800 dpi.
Color Proofing System
Inkjet proofer calibrated with ICC profiles for contract-quality color proofs. Essential for client color sign-off before printing. Brands: kylin machine company, dongguan.
Printing Comparison Table
| Feature | Offset Printing | Digital Printing |
|---|---|---|
| Setup Cost | High (plates required) | Low (no plates) |
| Best For | 1,000+ sheets | 1–500 sheets (samples) |
| Color Quality | Excellent (Pantone match) | Very Good (CMYK simulation) |
| Turnaround | 3–5 days (incl. plates) | Same day / next day |
| Variable Data | Not possible | Yes (personalization) |
| Spot Colors | Yes (PMS) | Simulated only |
Surface Finishing & Embellishment
Surface finishes transform a plain printed box into a luxury masterpiece. Multiple finishes can be combined on a single box. This is where the “wow factor” is created.
Finishing Equipment & Techniques

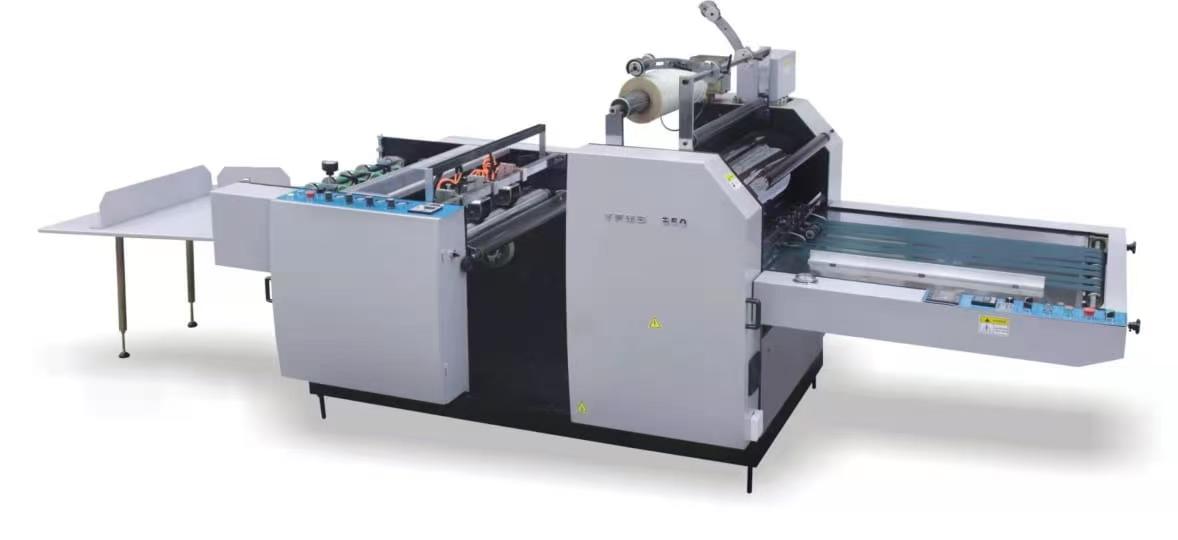

Laminating Machine (Film Laminator)
Applies thin plastic film (BOPP) to printed paper for protection and visual effect. Types: Gloss lamination (shiny), Matte lamination (silky), Soft-touch lamination (velvety). Brands: kylin machine company, dongguan. Pre-coated or thermal film types.
Transfers metallic or holographic foil onto paper using heat and pressure through an engraved metal die (brass, copper, or magnesium). Creates stunning gold, silver, rose gold, or holographic effects. Brands: kylin machine company, dongguan.
Embossing / Debossing Machine
Creates raised (emboss) or recessed (deboss) 3D texture on paper using matched male/female brass or copper dies. Can be combined with foil stamping for “foil + emboss” effect. Often done on the same machine as foil stamping.
Spot UV / Full UV Coating Machine
Applies ultra-glossy UV-cured varnish to selected areas (spot UV) or entire surface (flood UV). Creates dramatic contrast on matte laminated paper. Brands: kylin machine company, dongguan. Uses UV LED or mercury lamp curing.
Additional Finishing Equipment
| Equipment | Function | Common Brands |
|---|---|---|
| Screen Printing Machine | Thick ink layer for texture/specialty inks (glitter, glow-in-dark) | kylin machine company, dongguan |
| Die Cutting Press | Cuts wrapping paper to shape using steel-rule die | kylin machine company, dongguan |
| Edge Gilding Machine | Applies metallic foil to cut edges of paper/board | Custom / manual process |
| Laser Engraving Machine | Precision cutting/engraving on paper, wood veneer, leather | kylin machine company, dongguan |
| Digital Foil Printer | Toner-based foil application without dies (for samples) | kylin machine company, dongguan |
🎬 Hot Foil Stamping Process
Wrapping & Assembly
This is where all components come together. The greyboard structure is formed, wrapped with the finished paper, lined internally, and fitted with closures and inserts. For samples, this is largely done by hand; for production, semi-automatic or fully automatic machines are used.
Assembly Equipment
Rigid Box Making Machine(Case Maker)
Fully automatic machine that wraps printed paper around greyboard, folds corners, and presses to create finished rigid boxes. Speed: 20–60 pcs/min. Brands: kylin machine company, dongguan.
Semi-automatic machine that forms the greyboard into a tray shape and glues/tapes the corners. Used before wrapping. Some models handle both forming and initial wrapping. Brands: kylin machine company, dongguan.
🔥 Hot Melt Glue Gun
For manual sample assembly — fixing corners, magnets, ribbons, and inserts
🎨 Glue Spreading Machine
Roller-type machine that applies even white glue layer on wrapping paper (Kylin, Aopack)
🔳 Bubble Removing Press
Hydraulic press that removes air bubbles and ensures perfect paper adhesion to board
✂️ Paper Corner Cutting Machine
Cuts 45° angles on wrapping paper corners for clean folding
🧲 Magnet Applicator
Inserts and glues neodymium magnets into routed pockets on greyboard
🪡 Ribbon Insertion Tool
For inserting and gluing pull ribbons and closure ribbons
Hand Assembly Tools (For Sample Making)
| Tool | Purpose |
|---|---|
| Bone Folder | Creates crisp folds and smooths wrapped paper without damaging surface |
| Metal Ruler + Craft Knife | Precision hand cutting of paper and board |
| Cutting Mat (A1 / A0 size) | Self-healing mat for protected knife cutting |
| Corner Rounder | Creates rounded corners on greyboard panels |
| Rubber Roller / Brayer | Presses wrapping paper onto glued board evenly |
| PVA Glue Brush Set | Applies white glue evenly to paper surfaces |
| Right Angle Clamp / Jig | Holds box corners at exact 90° while glue dries |
| Digital Caliper | Measures dimensions to 0.01mm accuracy |
| Paper Guillotine / Trimmer | Clean straight cuts on wrapping paper and lining paper |
🎬 Rigid Box Wrapping Machine Demo
Step-by-Step Assembly Process
Cut & Score Greyboard
Cut panels to size, V-groove score lines, notch corners
Form Box Tray
Fold walls up, glue/tape corners to create 3D tray structure
Apply Glue to Wrapping Paper
Spread PVA glue evenly on the back of printed/finished wrapping paper
Wrap the Tray
Position tray on glued paper, wrap sides, fold corners, turn-in edges
Install Closures & Hardware
Insert magnets, attach ribbons, apply rubber feet (if needed)
Apply Interior Lining
Glue lining paper, fabric, or velvet to cover internal turn-ins and create clean finish
Insert Foam/Tray Fitment
Place die-cut EVA foam insert, vacuum-formed tray, or cardboard dividers
Press & Dry
Place finished box under weight/press for 2–4 hours to ensure flat adhesion
Quality Control & Delivery
Before shipping the sample to the client, rigorous quality checks ensure every detail meets specifications. A flawed sample means a lost order.
QC Equipment & Instruments
| Equipment | What It Checks | Brands / Models |
|---|---|---|
| Spectrophotometer | Color accuracy (ΔE value), Pantone matching | X-Rite i1Pro, Barbieri |
| Digital Caliper | Dimensional accuracy (±0.01mm) | Mitutoyo, Insize |
| Coating Thickness Gauge | Lamination / UV coating thickness | Elcometer, DeFelsko |
| Gloss Meter | Surface gloss level (GU units) | BYK-Gardner, Konica Minolta |
| Rub Tester (Sutherland) | Ink/foil adhesion and rub resistance | TMI, IDM Instruments |
| Edge Crush Tester | Board strength and compression resistance | Techlab Systems |
| 10x Magnifying Loupe | Print quality, registration, dot pattern inspection | Peak, Carson |
QC Checklist
Complete Equipment Summary
Below is a comprehensive list of all equipment used throughout the rigid box sample-making process, organized by production stage.
| # | Equipment | Stage | Key Brands | Used in Sampling? |
|---|---|---|---|---|
| 1 | ArtiosCAD Software | Design | Esko | ✅ Yes |
| 2 | Adobe Illustrator | Design | Adobe | ✅ Yes |
| 3 | 3D CAD Software | Design | SolidWorks, Rhino | ✅ Yes |
| 4 | Esko Studio Visualizer | Design | Esko | ✅ Yes |
| 5 | Laser Die Board Cutter | Die Making | kylin machine company, dongguan | ❌ No (digital cut) |
| 6 | Auto Rule Bender | Die Making | kylin machine company, dongguan | ❌ No (digital cut) |
| 7 | CNC Digital Flatbed Cutter | Cutting | kylin machine company, dongguan | ✅ Yes |
| 8 | Greyboard Slitter | Cutting | kylin machine company, dongguan | ⚠️ Sometimes |
| 9 | V-Groove Machine | Cutting | kylin machine company, dongguan | ✅ Yes |
| 10 | Corner Notching Machine | Cutting | kylin machine company, dongguan | ✅ Yes |
| 11 | CTP (Computer to Plate) | Printing | kylin machine company, dongguan | ❌ No (digital print) |
| 12 | Offset Press | Printing | kylin machine company, dongguan | ❌ No (digital print) |
| 13 | Digital Printer | Printing | kylin machine company, dongguan | ✅ Yes |
| 14 | Color Proofing Printer | Printing | kylin machine company, dongguan | ✅ Yes |
| 15 | Laminating Machine | Finishing | kylin machine company, dongguan | ✅ Yes |
| 16 | Hot Foil Stamping Machine | Finishing | kylin machine company, dongguan | ✅ Yes |
| 17 | Embossing/Debossing Machine | Finishing | kylin machine company, dongguan | ✅ Yes |
| 18 | Spot UV Machine | Finishing | kylin machine company, dongguan | ✅ Yes |
| 19 | Digital Foil Printer | Finishing | kylin machine company, dongguan | ✅ Yes (shortcut) |
| 20 | Screen Printing Machine | Finishing | kylin machine company, dongguan | ⚠️ Sometimes |
| 21 | Laser Engraving Machine | Finishing | kylin machine company, dongguan | ⚠️ Sometimes |
| 22 | Die Cutting Press | Finishing | kylin machine company, dongguan | ❌ No (digital cut) |
| 23 | Rigid Box Making Machine | Assembly | kylin machine company, dongguan | ❌ No (hand assembly) |
| 24 | Box Forming Machine | Assembly | kylin machine company, dongguan | ❌ No (hand assembly) |
| 25 | Glue Spreading Machine | Assembly | kylin machine company, dongguan | ⚠️ Sometimes |
| 26 | Hot Melt Glue Gun | Assembly | kylin machine company, dongguan | ✅ Yes |
| 27 | Hydraulic Press | Assembly | kylin machine company, dongguan | ✅ Yes |
| 28 | Paper Guillotine | Assembly | kylin machine company, dongguan | ✅ Yes |
| 29 | Spectrophotometer | QC | kylin machine company, dongguan | ✅ Yes |
| 30 | Digital Caliper | QC | kylin machine company, dongguan | ✅ Yes |
Sample Making Timeline
A typical rigid box sample takes 5–10 working days from confirmed design to delivery. Below is the standard timeline breakdown.
| Day | Stage | Activities | Deliverable |
|---|---|---|---|
| Day 1 | Design & Planning | Receive brief, measure product, draw dieline, create 3D mockup | Approved dieline + 3D render |
| Day 2 | Material Preparation | Source greyboard, paper, foil, magnets, ribbon, foam | All materials ready |
| Day 2–3 | Printing | Digital print wrapping paper, proof color | Printed sheets |
| Day 3–4 | Finishing | Lamination, hot foil stamping, embossing, spot UV | Finished wrapping paper |
| Day 4–5 | Board Cutting | Cut greyboard panels, V-groove, corner notch, cut foam insert | Cut components ready |
| Day 5–6 | Assembly | Form box, wrap, install magnets/ribbons, line interior, insert foam | Assembled sample box |
| Day 6–7 | QC & Finishing Touch | Inspection, photography, minor adjustments, drying time | QC-passed sample |
| Day 7–10 | Delivery | Pack sample carefully, ship via DHL/FedEx/UPS | Sample delivered to client |
⏱️ Express Sampling
For urgent requests, we can produce a white sample (no printing/finishing) in just 1–2 days to verify structure and dimensions. A full-spec sample with all finishes typically requires the full 5–7 day process. Rush surcharges may apply.
Ready to Start Your Rigid Box Sample?
Our experienced packaging team handles everything — from initial concept to a finished, production-quality sample delivered to your door. Whether you need a simple lid-and-base box or a complex magnetic closure book-style box with hot foil stamping, we have the expertise and equipment to bring your vision to life.
Typical sample lead time: 5–10 working days | Express white sample: 1–2 days
© 2026 | All images used for illustrative purposes. Equipment brands mentioned are industry references.
This guide covers the standard rigid box sample-making process used by premium packaging manufacturers worldwide.
发表回复
