Automatic Collapsible Box Wing Making Machine

What Is a Collapsible Box Wing, and Why Does Precision Matter?

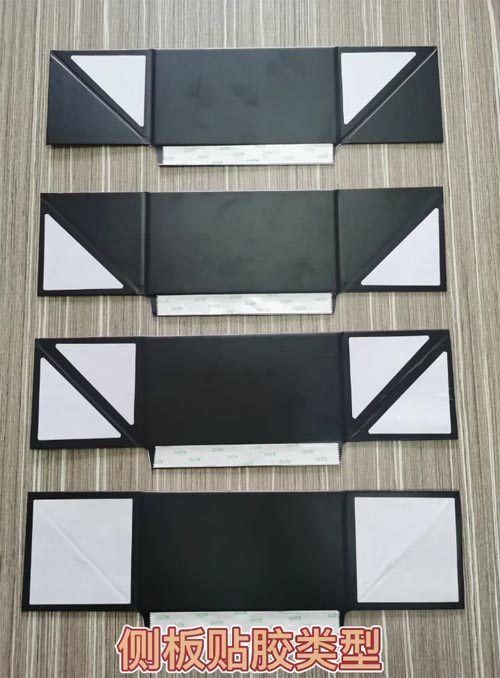

A collapsible rigid box — also called a foldable luxury box or magnetic closure box — achieves its structural integrity through precisely formed wing panels attached to the main rigid shell. The “wing” is the wrapped cardboard flap that, when unfolded, creates the full box depth. In high-end packaging, wing forming is the most quality-critical process step: a misalignment of even 0.5 mm is visible to the consumer and typically results in the entire batch being rejected at the brand owner’s QC stage.

For packaging manufacturers supplying luxury brands in cosmetics, jewelry, electronics, or spirits, the tolerance demand is non-negotiable. This is precisely why purpose-built wing making machinery — rather than adapted general folding equipment — has become the industry standard for premium rigid box production.

“Tolerance creep in wing-to-body alignment is the single largest cause of luxury packaging rejection at goods-in inspection. Sub-0.3 mm machine accuracy is the minimum benchmark for premium brand supply contracts.”

— Packaging Engineering Standards Reference, Rigid Box Category

Key Technical Parameters to Evaluate When Specifying a Wing Making Machine

Procurement engineers evaluating collapsible box wing making machinery should assess the following parameters against their production requirements:

• Working Speed (pcs/min): Must align with downstream line capacity. A machine running at 28 pcs/min feeding a manual packing station will create WIP accumulation. Balance machine speed with total line throughput.
• Positional Accuracy: Sub-±0.3 mm is required for luxury-grade production. Verify this is a guaranteed repeatability specification, not a best-case figure.
• Material Compatibility Range: Confirm both paper weight (gsm) and greyboard thickness (mm) ranges match your current and planned substrate portfolio.
• Format Changeover Time: For short-run or mixed-format production, changeover time directly impacts OEE (Overall Equipment Effectiveness). <15 minutes is the benchmark for competitive operations.
• Power Supply & Footprint: Validate electrical supply requirements against plant infrastructure; confirm machine footprint fits the allocated floor space with required safety clearances.
• Glue System Integration: Assess whether hot-melt or cold-glue is standard, and whether the system is user-serviceable or requires specialist maintenance.

The KY-630A in the Context of Global Rigid Box Production Trends

The global rigid luxury packaging market is projected to grow at a CAGR of 4.8% through 2030, driven by premiumization across beauty, spirits, electronics, and direct-to-consumer gifting. This growth directly translates into sustained demand for high-throughput, precision wing making machinery.

The KY-630A addresses three converging industry requirements: the push toward shorter production runs (requiring fast changeover), the unrelenting quality standards of luxury brand owners (requiring sub-±0.3 mm accuracy), and the pressure to reduce per-unit production cost (requiring high automation and minimal operator dependency).

“Automated wing making is no longer a competitive advantage — it is the minimum operational prerequisite for retaining luxury packaging supply contracts in markets with zero-defect quality expectations.”

— Kylin Machines Application Engineering Team

Installation, Commissioning, and Operator Training Considerations

Successful deployment of a wing making machine requires structured commissioning — not just physical installation. Key steps include:

• Site Preparation: Level concrete floor rated for 1,200 kg point load; 220 V / 3-phase supply with appropriate circuit protection; compressed air supply if glue system requires it.
• Initial Calibration: Machine alignment to level ±0.1 mm/m; feeding gap calibration per substrate; glue temperature and flow rate profiling per adhesive specification.
• Operator Qualification: Minimum 8 hours of supervised operation training recommended before independent production. Training covers HMI operation, format changeover procedure, and first-line troubleshooting.
• Production Trial: Run a minimum of 200 pieces in each format before releasing to full production. Verify dimensional accuracy at start, mid-run, and end-of-run intervals.

Total Cost of Ownership: Beyond the Machine Price

When evaluating the KY-630A against competing machines, procurement teams should model the full TCO across a 5-year horizon. Key cost drivers beyond the initial capital price include:

• Labor Cost Delta: Automated operation vs. semi-manual baseline — typically 1.5 operators saved per shift at full automation.
• Defect Rate Reduction: A reduction from 12% to <1% defect rate on a 10,000 pcs/day line represents approximately 1,100 recovered units per day — significant material and rework cost savings.
• Maintenance & Spare Parts: Annual planned maintenance cost for the KY-630A is estimated at 2–3% of machine value. Wear items include feed rollers, pressing pads, and glue nozzles.
• Energy Consumption: 7 kW installed power; actual consumption approximately 4.5–5.5 kWh per operating hour under normal production conditions.
