Layflat Board Book Binding Machines — KY-570B / KY-700B / KY-850B
Three dedicated models for butterfly layflat board book production. Designed for B2B book manufacturers who need stable mounting accuracy, consistent flat-opening quality and efficient throughput for children’s books, photo books and rigid-page products.

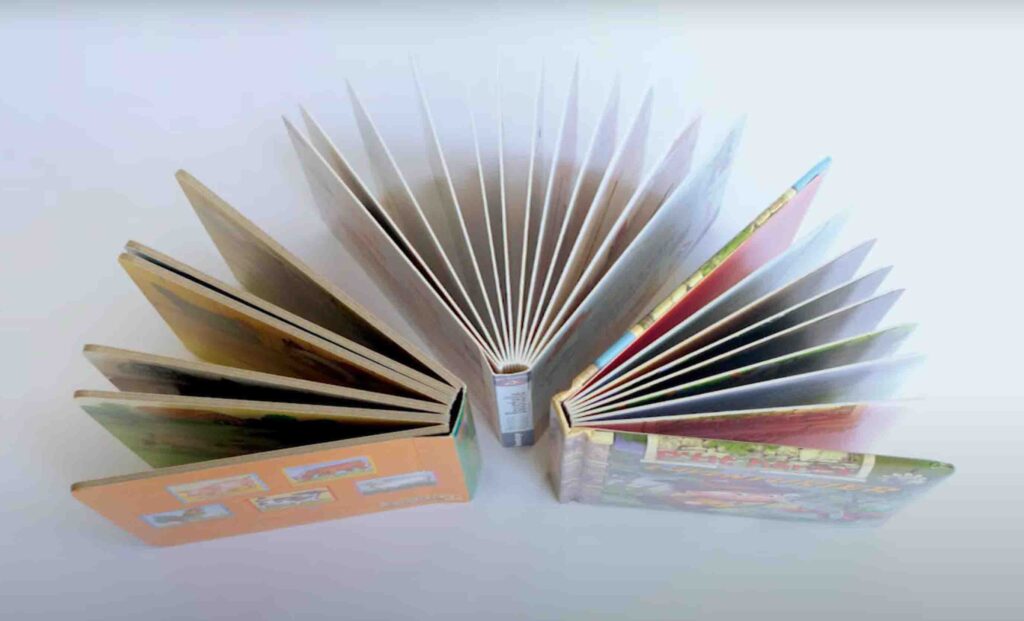

Best suited for: children’s board books · educational books · photo books · sample books · rigid-page gift products
Why rigid-book factories are moving from manual mounting to automated butterfly layflat production
Manual board assembly creates visible quality gaps that affect export acceptance rates, labor cost and order turnaround. Below is how the KY series directly addresses these production pain points.
⚠ Manual Production Pain Points
✓ What the KY Series Delivers
Six machine capabilities that drive purchasing decisions for B2B board book production lines
Engineering teams and production managers evaluate board book machinery on automation level, size range, material compatibility and long-run consistency. These are the KY series features that matter most.
Three Format Configurations
KY-570B, KY-700B and KY-850B cover small, mid and large cover formats so factories buy only the capacity their order structure requires.
Butterfly Layflat Technology
The butterfly mounting process delivers a flat-opening result that is consistently cleaner than manual pasting, improving product presentation for retail and export.
Wide Board Compatibility
Supports 180gsm paper through to 12mm rigid board, enabling production of standard children’s books, heavy-duty educational titles and premium format products.
4,000 pcs/hr Throughput
The rated production speed supports medium-to-large order volumes and helps factories maintain predictable scheduling across shifts and seasonal demand peaks.
B2B Application Scope
Designed for children’s publishers, hardcover finishing plants, photo book workshops, OEM rigid-page suppliers and sample book manufacturers.
Scalable Machine Footprint
From 1700 × 1000mm to 2000 × 1500mm, factory planners can layout the KY series alongside existing binding or collating lines without major floor reconfiguration.
Model comparison table for workshop planning, supplier evaluation and import documentation
Use this data to compare cover format range, power requirements, machine dimensions and shipping weight across all three KY series configurations before submitting your inquiry.
| Specification | KY-570B | KY-700B | KY-850B |
|---|---|---|---|
| Min Cover Size | 180 × 100 mm | 180 × 100 mm | 180 × 100 mm |
| Max Cover Size | 570 × 400 mm | 700 × 400 mm | 850 × 700 mm |
| Board Thickness (Min) | 180 gsm | 180 gsm | 180 gsm |
| Board Thickness (Max) | 12 mm | 12 mm | 12 mm |
| Working Speed | 4,000 pcs/hr | 4,000 pcs/hr | 4,000 pcs/hr |
| Power Consumption | 1.2 kW | 1.5 kW | 1.8 kW |
| Machine Dimensions | 1700×1000×1000 mm | 1800×1100×1100 mm | 2000×1500×1300 mm |
| Machine Weight | 560 Kg | 600 Kg | 800 Kg |
Select KY-570B for standard-format children’s books. Choose KY-700B for a wider cover range with moderate power. Specify KY-850B when your order mix includes large-format photo books or oversized board titles.
Children’s board book factories · hardcover book producers · educational publishers · photo book workshops · OEM rigid-page suppliers · export print-finishing plants.
Handling time: 7–10 working days. Transit time: 15–35 days depending on destination. Machines are crated and inspected before dispatch.
Watch the butterfly layflat binding process — board mounting, gathering and pasting in operation
Engineering and sourcing teams can use this demo to verify the mounting accuracy, page alignment quality and production rhythm before requesting a detailed quotation or scheduling a factory visit.
What to evaluate in the demo
Review these three quality indicators to determine whether the machine’s output meets your product standards and export acceptance criteria.
Need a custom format sample or a live video call demonstration? Contact via WhatsApp to arrange.
💬 Request Live DemoTechnical and commercial questions from importers, publishers and board book production managers
These answers address the most common queries from B2B buyers comparing board book machinery on format compatibility, output capacity, product scope and purchasing process.
The KY series is designed for children’s board books, educational activity books, photo books, luxury sample books and any rigid-page product that requires a clean flat-opening result. The machine handles both standard and premium board constructions from 180gsm up to 12mm thick, making it suitable for most B2B rigid book programs.
The primary difference is maximum cover size, machine footprint and power consumption. KY-570B handles up to 570 × 400mm and consumes 1.2kW. KY-700B extends the width to 700 × 400mm at 1.5kW, and KY-850B supports the largest format at 850 × 700mm with 1.8kW. All three models share the same 4,000 pcs/hr rated speed and 180gsm–12mm board range.
The machine supports a minimum input of 180gsm paper and a maximum of 12mm rigid board. This range covers lightweight children’s board pages, standard hardcover board and thicker premium formats, making the KY series adaptable across multiple rigid book construction styles without requiring model changes.
Yes. The KY series is engineered for continuous industrial use and is well matched to export-oriented children’s book factories, OEM rigid-page suppliers, print finishing plants and book manufacturers serving international retail buyers. The stable output speed and consistent bonding quality help factories meet the quality standards and delivery schedules required by overseas buyers.
To receive an accurate model recommendation and lead time estimate, buyers should provide: (1) finished book size (width × height), (2) board thickness in mm or gsm, (3) target output per hour, (4) sample photos or specification sheets, (5) destination country and local power standard (voltage and frequency). Sending this information via WhatsApp allows the supplier to respond with a tailored configuration quickly.
Standard production and handling time is 7–10 working days from order confirmation. Ocean freight transit typically takes 15–35 days depending on the destination port. Machines are packed in export-rated wooden crates with anti-humidity protection. The supplier can provide FOB, CIF or DAP pricing on request.
Layflat quality, production ROI and the commercial case for automated board book binding
In the international board book market, product quality is judged not just by bonding strength but by how the book opens, how the page edges appear and whether the construction holds up after repeated use. This section addresses the business logic behind investing in dedicated layflat binding equipment.
Why layflat production defines quality perception in the rigid book market
Flat opening is a visible quality signal that publishers, retail buyers and end consumers evaluate immediately. When a board book does not open flat — when the spine area buckles or the pages resist opening — the product reads as lower grade, regardless of paper quality or print specification.
“In children’s board books and photo books, the opening experience is the product. Layflat binding automation is how factories deliver that experience consistently at scale.”
For children’s publishing, page structural consistency is also a safety consideration. Rigid board books are handled by young children and must hold their form across repeated use. For photo books and branded presentation books, visual neatness and structural precision are non-negotiable because the physical product carries the brand’s quality message directly.
This is why export-oriented factories increasingly invest in dedicated butterfly layflat binding machines rather than adapting general-purpose equipment. The process logic, glue system and clamping mechanism of a purpose-built layflat machine produce results that manual or hybrid assembly cannot replicate reliably at volume.
The commercial case for upgrading to automated layflat binding
At 4,000 pcs/hr, the machine reduces the labor hours required per thousand books, improving margin on volume orders without increasing headcount.
A cleaner layflat result supports premium product positioning — children’s gift books, branded photo albums and educational hardbacks all command stronger buyer pricing when the construction quality is verifiable.
Predictable machine speed makes production scheduling more accurate, helping export factories commit to tighter delivery windows and manage seasonal peak orders without overtime pressure.
Automated glue control and mounting pressure reduce the variability that causes page lift, edge curl and alignment defects — the three most common reasons for board book rejection by overseas buyers.
Consistent quality documentation, combined with a verifiable machine specification, helps factories pass supplier audits and meet the production standards required by international children’s book publishers and retailers.
What B2B buyers and production managers say about KY series layflat binding machines
“We run the KY-700B for children’s board book orders. Layflat consistency is reliable and the speed supports our export schedule without needing to add assembly operators. The bonding holds well even on thicker board formats.”
“Compared with our previous manual assembly process, the machine has improved bonding consistency noticeably. We have fewer rejected pieces per batch and the rigid pages look cleaner after mounting. Good support from the supplier during setup.”
Get price, lead time and model recommendation for your board book production line
Send your book size, board thickness, target output, sample photos and destination country. The supplier will confirm whether KY-570B, KY-700B or KY-850B is the right fit and provide a tailored quotation.
Recommended details to include: finished book size · board thickness · target pcs/hr · power voltage · destination port · preferred model (KY-570B / KY-700B / KY-850B)
